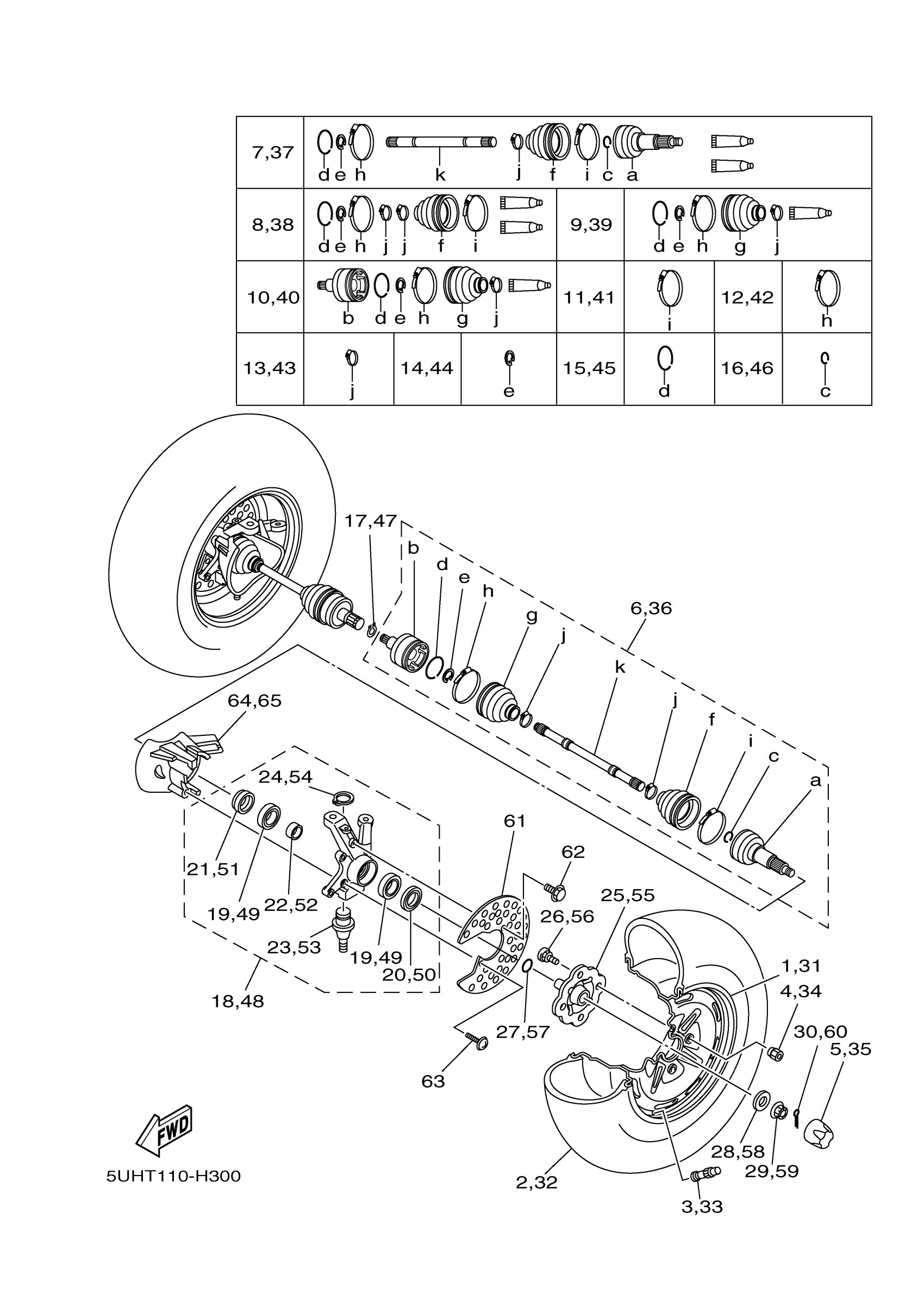

Yamaha YFM35FGHZ (GRIZZLY 350 4WD HUNTER) 1AB5 2010 FRONT WHEEL Diagram

#

Description
Price

1

RIM FRONT (BLACK 12 X 6.0)

5ND-F5180-11-00

Unavailable

2

TIRE (AT25X8-12 M979)

94108-12812-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10022-00

$3.81

5

CAP, WHEEL

5GT-2512A-00-00

$9.99

6

DRIVE SHAFT ASSY

5UH-2518F-00-00

Unavailable

7

BALL JOINT SET

5UH-2510F-00-00

$419.99

8

BOOT SET (BALL JOINT)

5UH-2510G-00-00

$65.99

9

BOOT SET (DOUBLE OFFSET JOINT)

5UH-2510H-00-00

$83.99

10

DOUBLE OFF SET JOINT

5UH-2510J-00-00

Unavailable

11

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

12

BOOT BAND (DOUBLE OFFSET JOINT

3HN-2511H-01-00

$20.99

13

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

14

SNAP RING

2HR-2512J-00-00

$6.99

15

CIRCLIP

4KB-2512H-00-00

$6.99

16

CIRCLIP

2HR-2512H-00-00

Unavailable

17

CIRCLIP(2HR)

93450-22119-00

Unavailable

18

STEERING KNUCKLE A

5ND-F3501-11-00

Unavailable

19

BEARING

93306-006Y2-00

Unavailable

20

OIL SEAL

93106-38046-00

Unavailable

21

OIL SEAL

93106-38047-00

Unavailable

22

SPACER(2HR)

90560-30325-00

Unavailable

23

BALL JOINT 1

37S-23549-01-00

Unavailable

24

CIRCLIP

93410-32075-00

Unavailable

25

HUB,FRONT

5ND-F5111-30-00

Unavailable

26

BOLT, SERRATION

90114-10014-00

Unavailable

27

O-RING(47X)

93210-27666-00

Unavailable

28

WASHER, PLATE

90201-16804-00

Unavailable

29

NUT, CASTLE

90171-16002-00

Unavailable

30

PIN, COTTER

91490-30030-00

Unavailable

31

RIM FRONT (BLACK 12 X 6.0)

5ND-F5180-11-00

Unavailable

32

TIRE (AT25X8-12 M979)

94108-12812-00

Unavailable

33

VALVE, RIM

93900-00812-00

Unavailable

34

NUT

90179-10022-00

$3.81

35

CAP, WHEEL

5GT-2512A-00-00

$9.99

36

DRIVE SHAFT ASSY

5UH-2518F-00-00

Unavailable

37

BALL JOINT SET

5UH-2510F-00-00

$419.99

38

BOOT SET (BALL JOINT)

5UH-2510G-00-00

$65.99

39

BOOT SET (DOUBLE OFFSET JOINT)

5UH-2510H-00-00

$83.99

40

DOUBLE OFF SET JOINT

5UH-2510J-00-00

Unavailable

41

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

42

BOOT BAND (DOUBLE OFFSET JOINT

3HN-2511H-01-00

$20.99

43

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

44

SNAP RING

2HR-2512J-00-00

$6.99

45

CIRCLIP

4KB-2512H-00-00

$6.99

46

CIRCLIP

2HR-2512H-00-00

Unavailable

47

CIRCLIP(2HR)

93450-22119-00

Unavailable

48

STEERING KNUCKLE A

5ND-F3502-11-00

Unavailable

49

BEARING

93306-006Y2-00

Unavailable

50

OIL SEAL

93106-38046-00

Unavailable

51

OIL SEAL

93106-38047-00

Unavailable

52

SPACER(2HR)

90560-30325-00

Unavailable

53

BALL JOINT 1

37S-23549-01-00

Unavailable

54

CIRCLIP

93410-32075-00

Unavailable

55

HUB,FRONT

5ND-F5111-30-00

Unavailable

56

BOLT, SERRATION

90114-10014-00

Unavailable

57

O-RING(47X)

93210-27666-00

Unavailable

58

WASHER, PLATE

90201-16804-00

Unavailable

59

NUT, CASTLE

90171-16002-00

Unavailable

60

PIN, COTTER

91490-30030-00

Unavailable

61

RING, WHEEL 1 (LEF

5ND-F514A-00-00

Unavailable

62

BOLT, FLANGE

95817-06012-00

Unavailable

63

SCREW, ROUND TAPPING

90160-05007-00

Unavailable

64

MUD GUARD 1

4S2-F2327-01-00

Unavailable

65

MUD GUARD 2

4S2-F2328-01-00

Unavailable
