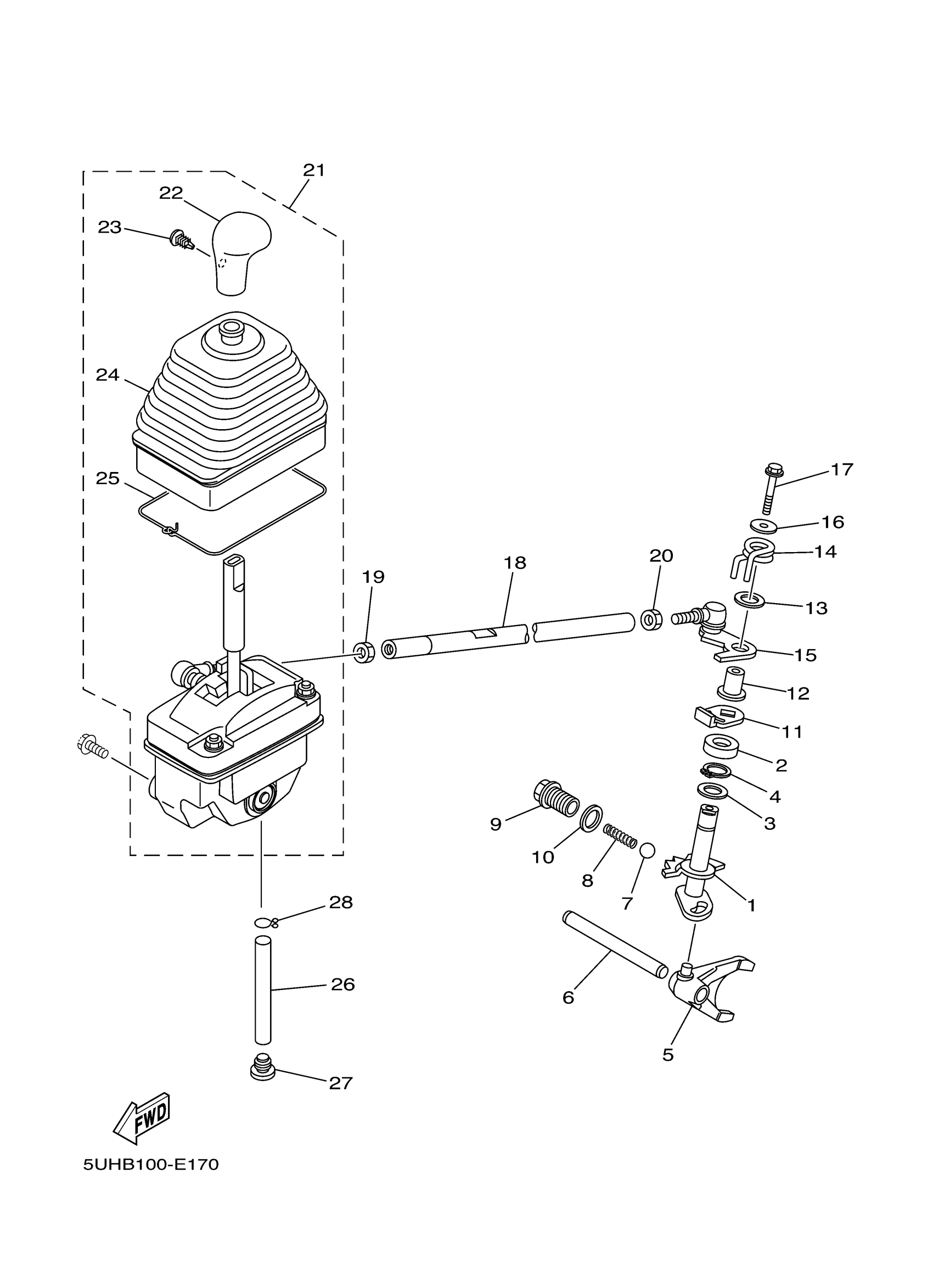

Yamaha YFM35FGHY (GRIZZLY 350 4WD HUNTER) 5UHT 2009 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT COMP.

5UH-18103-00-00

Unavailable

2

OIL SEAL (3X3)

93102-15212-00

$9.49

3

WASHER (566)

90201-15701-00

$8.49

4

CIRCLIP

93440-15012-00

$8.49

5

FORK, SHIFT 1

5UH-18511-00-00

$75.99

6

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

Unavailable

7

BALL

93503-08007-00

$4.15

8

SPRING, COMPRESSION (465)

90501-10353-00

$9.49

9

BOLT, FLANGE

90105-14003-00

$8.49

10

GASKET(59V)

90430-14194-00

$8.49

11

LEVER

4SH-18198-00-00

$22.99

12

COLLAR

90387-0613B-00

$9.49

13

WASHER, PLATE

90201-13013-00

$8.49

14

SPRING, TORSION(1YW)

90508-35764-00

$5.60

15

LEVER

5UH-18191-00-00

Unavailable

16

WASHER, PLATE

90201-06036-00

Unavailable

17

95812-06035

95812-06035-00

Unavailable

18

ROD, SHIFT

5UH-18115-01-00

Unavailable

19

NUT(1KT)

90170-08358-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

SHIFTER ASSY

5UH-18300-02-00

Unavailable

22

KNOB, SHIFT LEVER

5TE-18174-00-00

Unavailable

23

RIVET(81E)

90269-05055-00

Unavailable

24

BOOTS, SEALING

5GH-18131-00-00

Unavailable

25

STOPPER, RUBBER

5GH-18617-00-00

Unavailable

26

HOSE

90446-16001-00

Unavailable

27

PLUG, DRAIN

5ND-E4191-10-00

Unavailable

28

CLIP

90467-150A2-00

Unavailable
