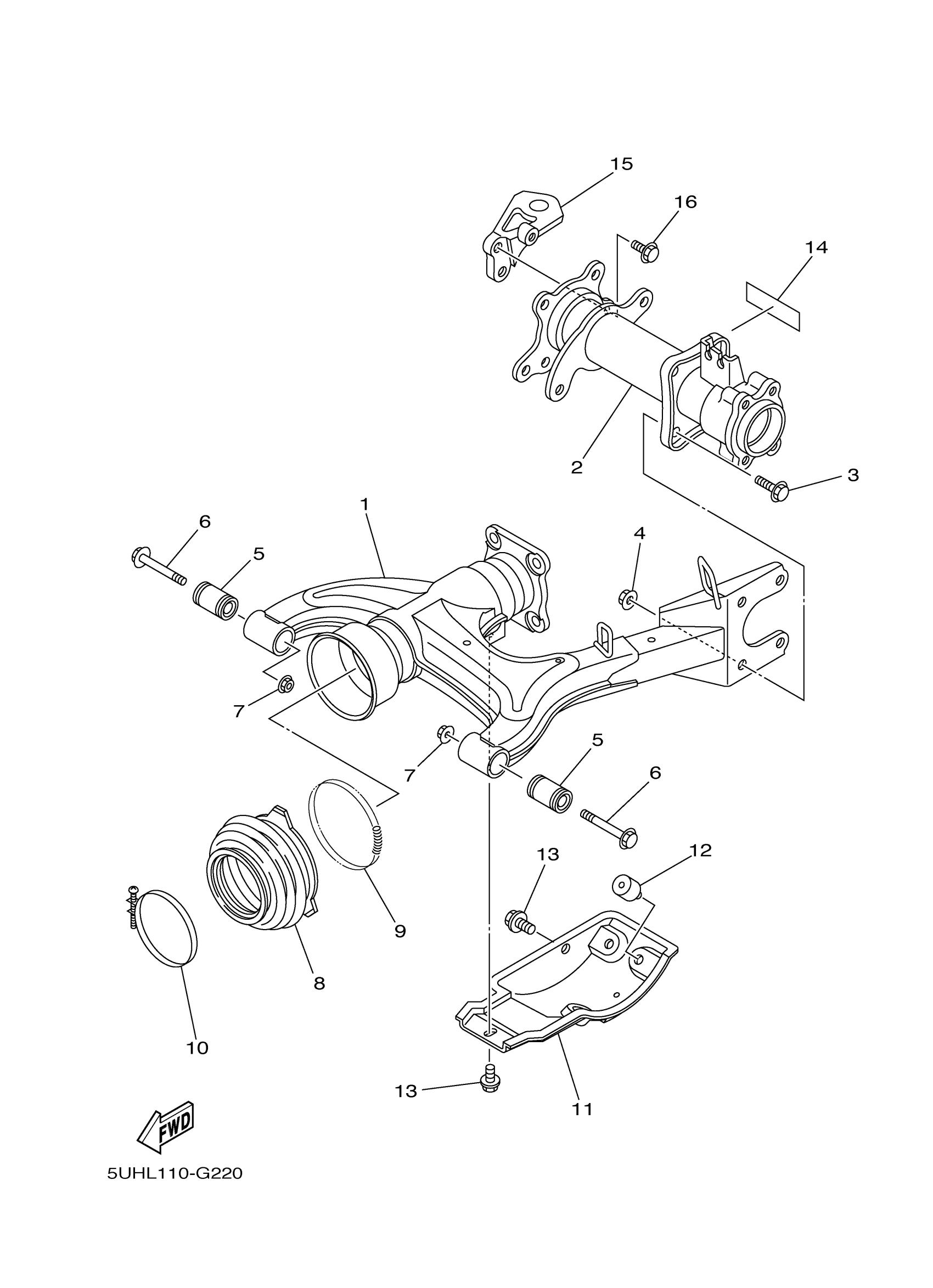

Yamaha YFM35FGHY (GRIZZLY 350 4WD HUNTER) 5UHT 2009 REAR ARM Diagram

Description

Price

REAR ARM

3C2-F2110-00-00

Unavailable

REAR AXLE HOUSING COMP

5TE-G6540-12-00

$236.99

BOLT, FLANGE

95817-10020-00

$8.49

NUT, FLANGE(3BM)

95704-10500-00

$4.29

BUSH 1

5ND-F2123-00-00

Unavailable

BOLT, FLANGE

90105-12057-00

$11.49

NUT, SELF-LOCKING

95602-12200-00

$4.46

BOOT, RUBBER

5ND-F2189-00-00

$15.49

SPRING, TENSION (1J7)

90506-07135-00

$15.99

CLAMP, HOSE(59V)

90460-85277-00

$16.99

COVER

4XE-F219X-01-00

Unavailable

STOPPER, MAIN STAND

109-27114-00-00

$6.99

BOLT, FLANGE

95817-08012-00

$5.49

LABEL 7

5ND-F151K-00-00

Unavailable

HOOK (BALL HITCH PLATE)

5ND-F8488-20-00

Unavailable

BOLT, FLANGE

95817-10020-00

$8.49
