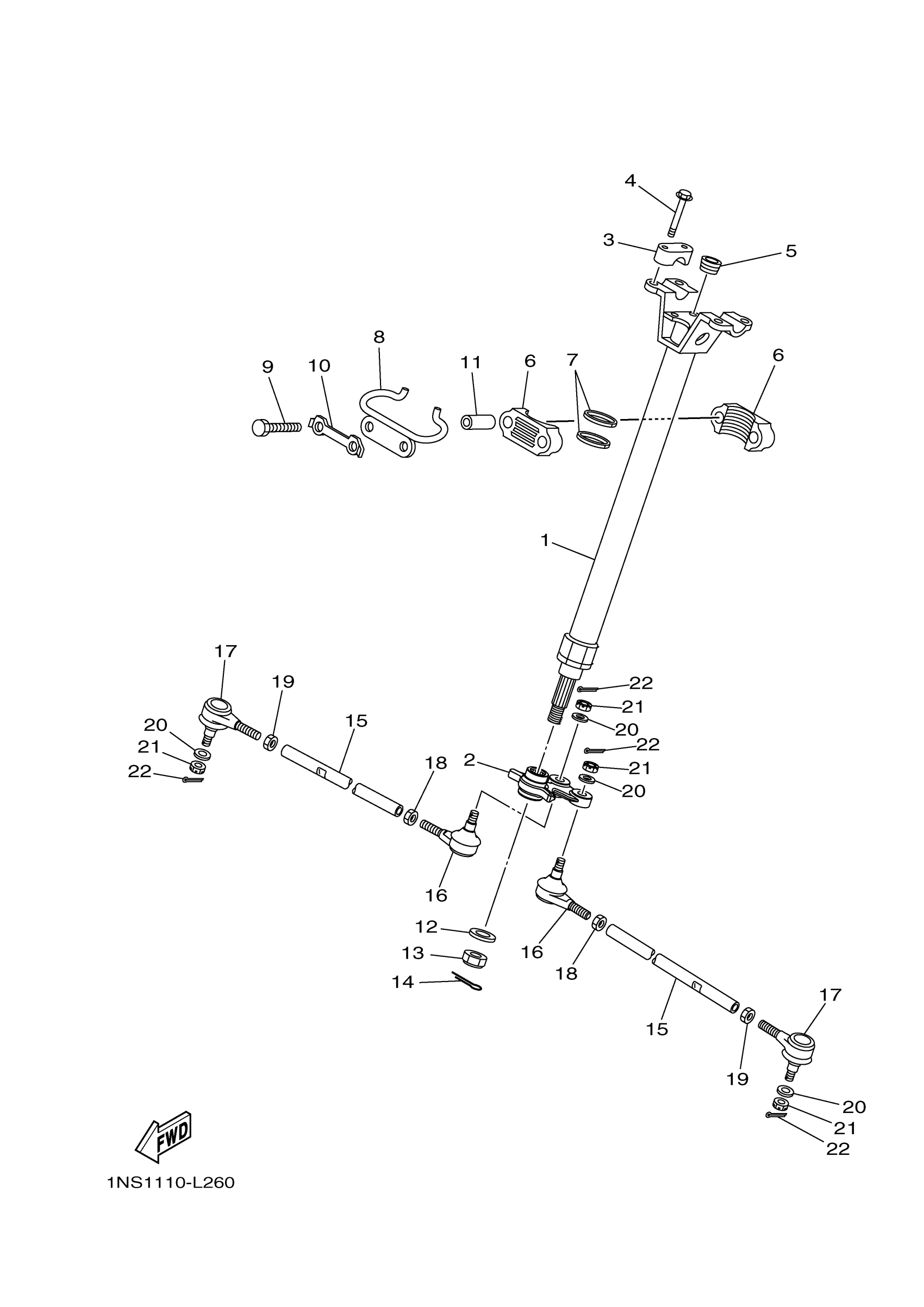

Yamaha YFM35FGHD (GRIZZLY 350 4WD HUNTER) 1NSA 2013 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5ND-F3813-11-00

$155.99

2

ARM, PITMAN

1NS-F3816-00-00

$43.99

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

BOLT, FLANGE

95812-08030-00

$3.81

5

PLUG, TAPER(2HR)

90336-28053-00

$10.49

6

PLANE BEARING, STE

37S-F3812-00-00

$7.99

7

OIL SEAL

93112-31800-00

$1.59

8

BRACKET, STEERING

1HP-F3868-00-00

$9.99

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

WASHER, PLATE

90201-14021-00

$5.60

13

NUT, SELF-LOCKING

90185-14009-00

$9.49

14

PIN, COTTER

91490-20035-00

$4.77

15

ROD, TIE

1NS-23831-00-00

$24.99

16

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

17

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

18

NUT (682)

95380-10700-00

Unavailable

19

NUT

90170-10010-00

Unavailable

20

WASHER (25G)

90209-10229-00

Unavailable

21

NUT, CASTLE

90171-10001-00

Unavailable

22

PIN, COTTER

91490-25020-00

Unavailable
