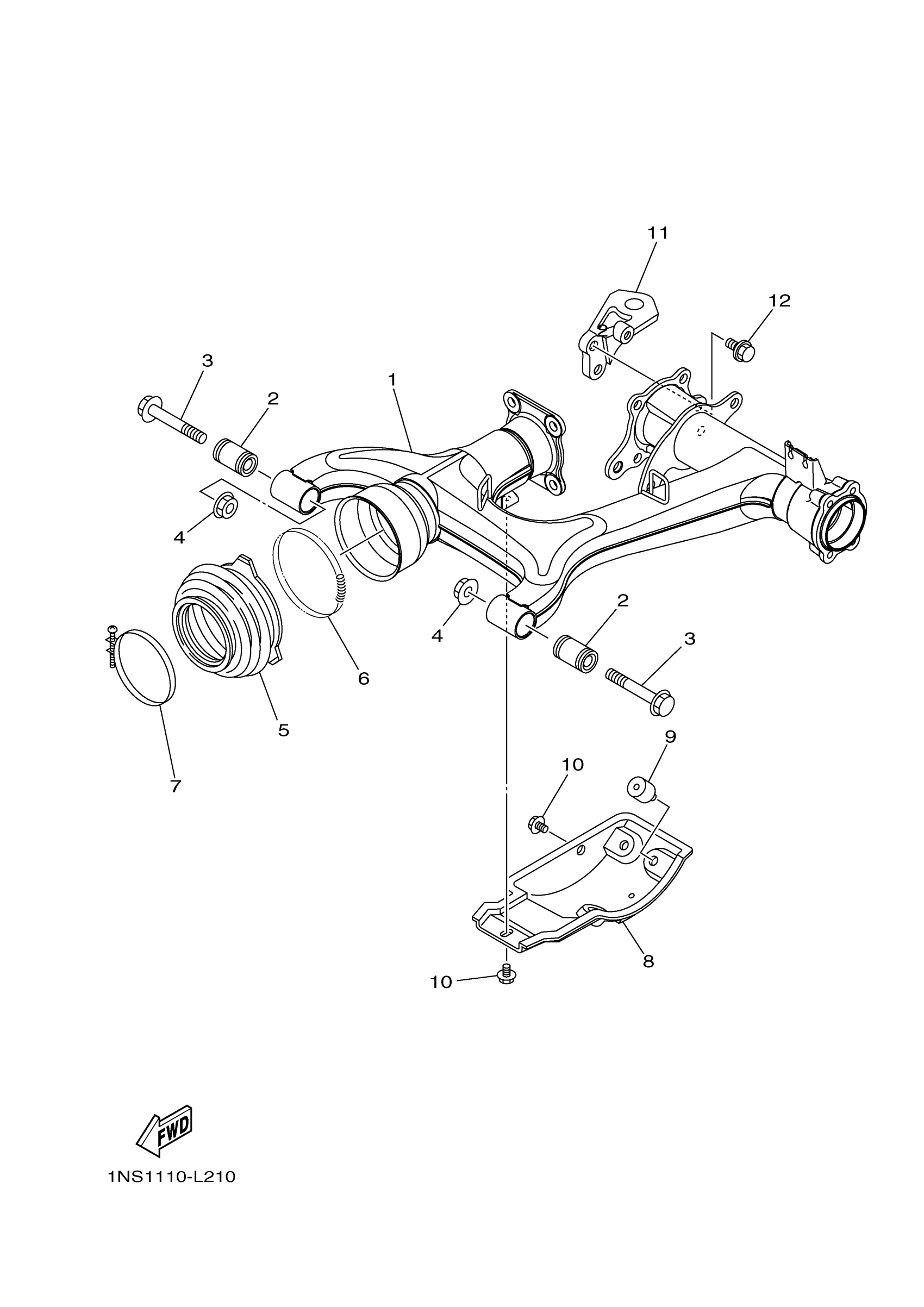

Yamaha YFM35FGHD (GRIZZLY 350 4WD HUNTER) 1NSA 2013 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

1NS-F2110-02-00

Unavailable

2

BUSH 1

5ND-F2123-00-00

Unavailable

3

BOLT, FLANGE

95812-12080-00

$4.44

4

NUT, SELF-LOCKING

90185-12009-00

$6.75

5

BOOT, RUBBER

5ND-F2189-00-00

$12.22

6

SPRING, TENSION (1J7)

90506-07135-00

$11.96

7

CLAMP, HOSE(59V)

90460-85277-00

$11.76

8

COVER

4XE-F219X-01-00

Unavailable

9

STOPPER, MAIN STAND

109-27114-00-00

$5.05

10

BOLT, FLANGE

95817-08012-00

$3.71

11

HOOK (BALL HITCH PLATE)

5ND-F8488-20-00

Unavailable

12

BOLT, FLANGE

95817-10020-00

$4.89
