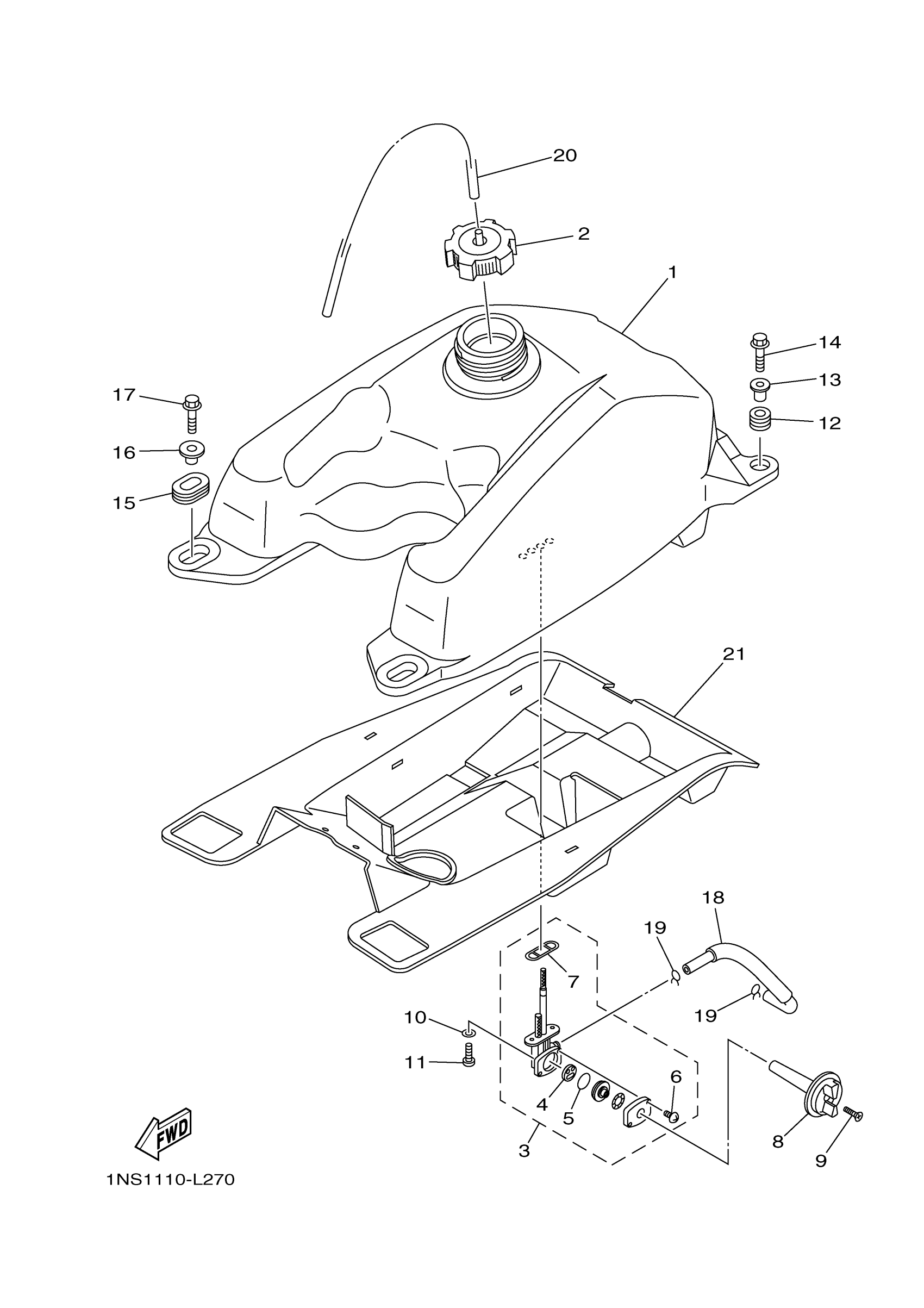

Yamaha YFM35FGHD (GRIZZLY 350 4WD HUNTER) 1NSA 2013 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5UH-F4110-10-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

5KM-24500-10-00

$59.99

4

VALVE PACKING

3AC-24523-00-00

$12.99

5

SEAL, COCK

3AJ-24534-10-00

$7.99

6

SCREW, PAN HEAD

98507-03014-00

Unavailable

7

O-RING

4X8-24512-10-00

$14.49

8

LEVER,COCK

1NS-F4524-00-00

$8.99

9

SCREW, FLAT

98702-04018-00

$2.45

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

SCREW

90149-06108-00

$1.01

12

GROMMET (4V1)

90480-18290-00

$8.49

13

COLLAR (36R)

90387-066J1-00

$8.49

14

BOLT, FLANGE

95817-06030-00

$4.29

15

GROMMET(38W)

90480-01400-00

$13.49

16

COLLAR

90387-07021-00

Unavailable

17

BOLT, FLANGE

95817-06030-00

$4.29

18

PIPE, FUEL 1

5UH-24311-00-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

HOSE

90445-088C5-00

Unavailable

21

DAMPER, PLATE 1

5UH-F414H-01-00

Unavailable
