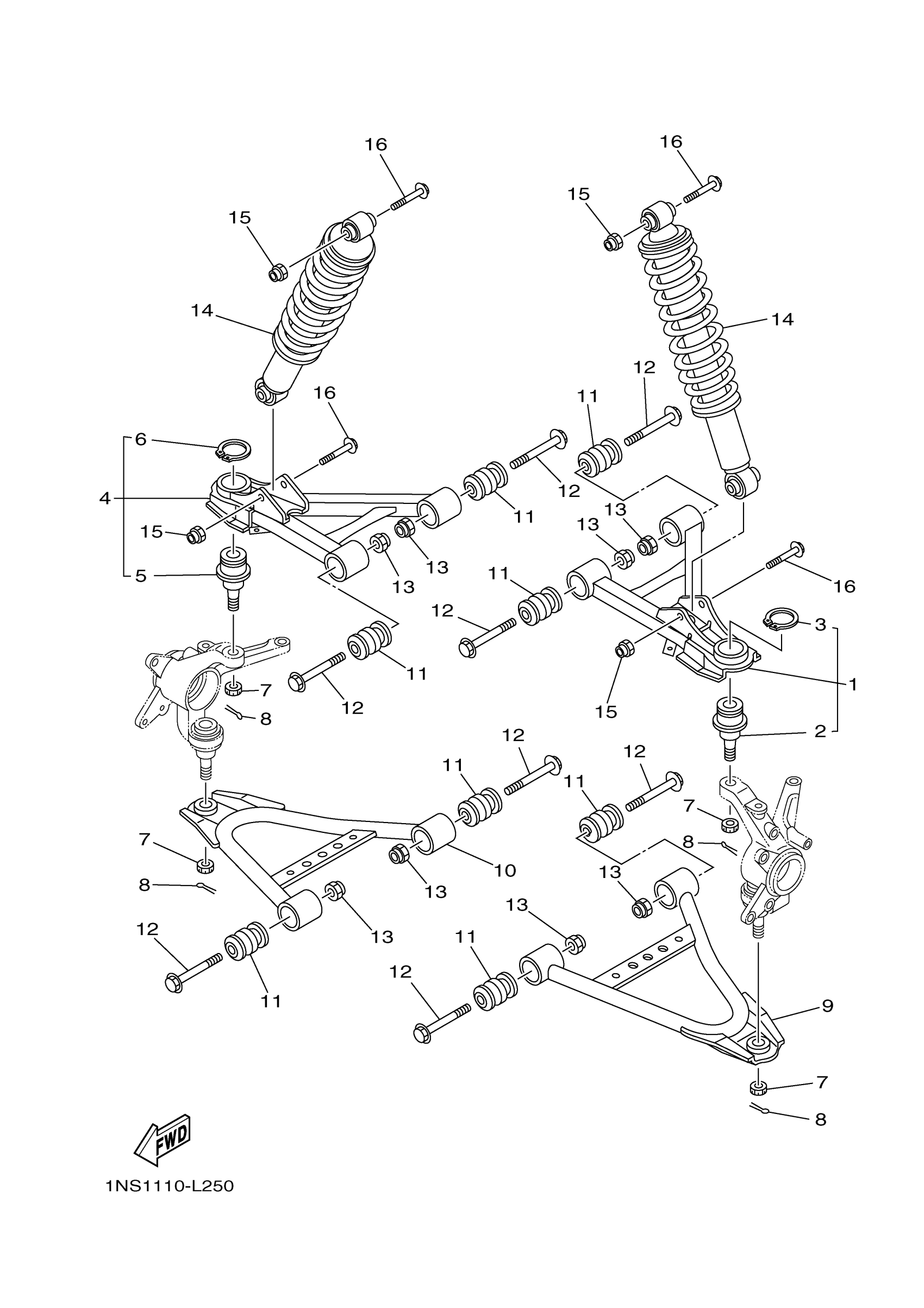

Yamaha YFM35FGHD (GRIZZLY 350 4WD HUNTER) 1NSA 2013 FRONT SUSPENSION WHEEL Diagram

Description

Price

FRT. UPPER ARM (L)

5ND-F3540-13-00

$175.99

BALL JOINT 1

37S-23549-01-00

$76.99

CIRCLIP

93410-32075-00

$9.49

FRT. UPPER ARM (R)

5ND-F3550-13-00

$138.99

BALL JOINT 1

37S-23549-01-00

$76.99

CIRCLIP

93410-32075-00

$9.49

NUT, CASTLE

90171-12001-00

$7.49

PIN, COTTER

91490-25020-00

$3.19

ARM, FR. LWR. LH.

5ND-F357A-01-00

$95.99

ARM, FR. LWR. RH.

5ND-F358A-01-00

$95.99

BUSH

2HR-23526-00-00

$20.99

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

NUT, SELF-LOCKING

90185-10012-00

$9.49

SHOCK ABSORBER ASS

1NS-F3350-00-00

$150.99

NUT, SELF-LOCKING

90185-10012-00

$9.49

BOLT, FLANGE

90105-10841-00

Unavailable
