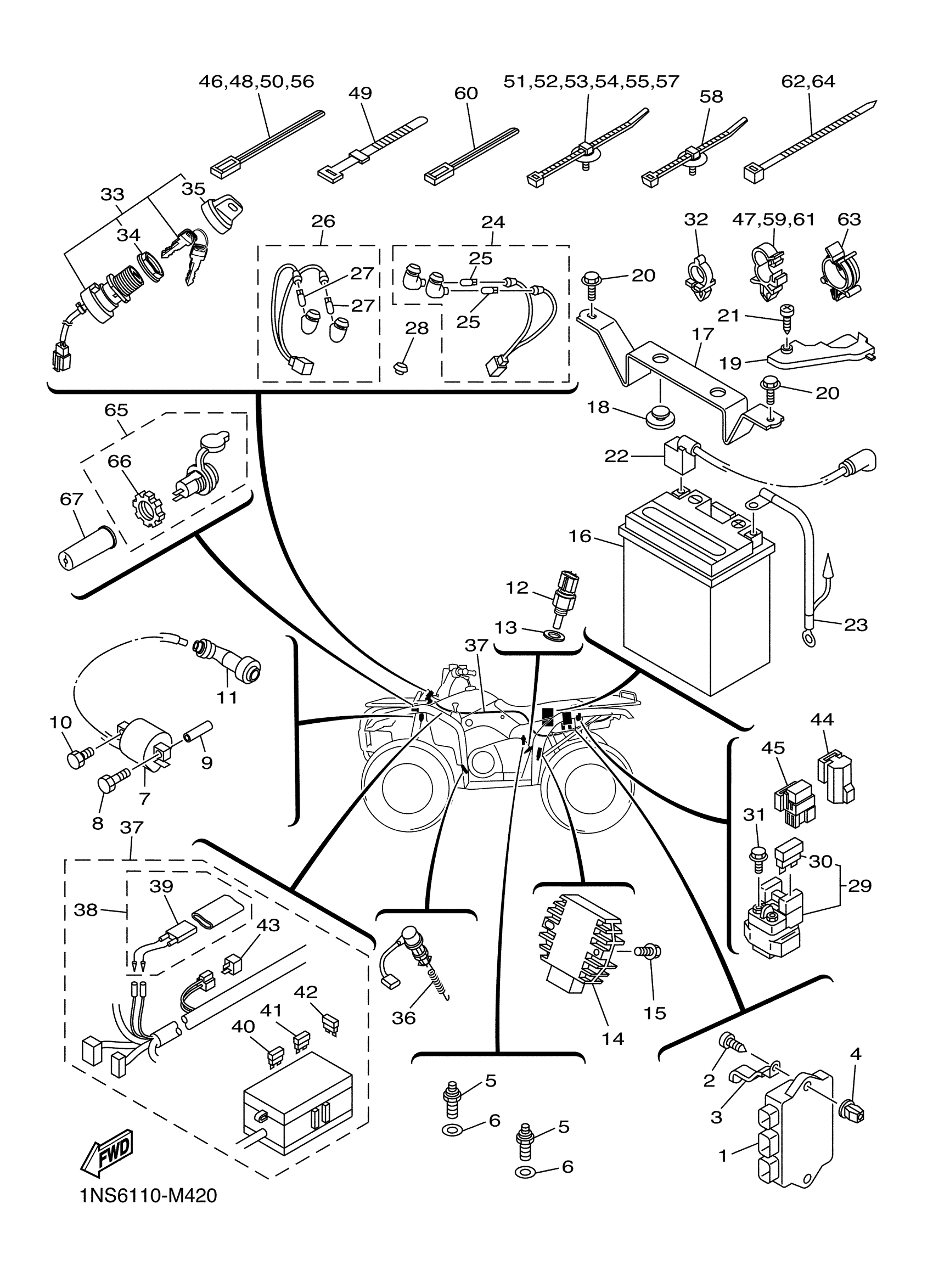

Yamaha YFM35FGHD (GRIZZLY 350 4WD HUNTER) 1NSA 2013 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5UH-85540-00-00

$557.99

2

SCREW, TAPPING

97702-60420-00

$0.64

3

CLAMP

90462-06016-00

$5.60

4

PLUG(4BP)

90338-08226-00

$2.17

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

IGNITION COIL ASSY

5KM-82310-03-00

$46.99

8

BOLT

90109-06865-00

Unavailable

9

SPACER

5UH-H1318-00-00

Unavailable

10

BOLT, FLANGE

95817-06020-00

$3.81

11

PLUG CAP ASSY

3NS-82370-00-00

$37.99

12

THERMO UNIT

4GB-83591-10-00

$180.99

13

WASHER, PLATE 3412175700

90201-12172-00

$3.93

14

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$261.99

15

BOLT, FLANGE

90105-06833-00

$2.28

16

YTX14AHBS YUASA BATTERY - SA

YTX-14AHB-S0-00

Unavailable

17

BRACKET, BATTERY

5TE-H2128-01-00

Unavailable

18

PAD, BATTERY

371-82121-00-00

Unavailable

19

COVER, LEAD WIRE

5ND-H2119-00-00

Unavailable

20

BOLT, FLANGE

90105-06831-00

Unavailable

21

SCREW, TAPPING

97702-60016-00

Unavailable

22

WIRE, PLUS LEAD

5TE-H2115-00-00

Unavailable

23

WIRE, MINUS LEAD

5UH-H2116-00-00

Unavailable

24

PILOT LIGHT ASSY

5TE-83530-00-00

Unavailable

25

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

26

PILOT LIGHT ASSY

5UH-83530-00-00

Unavailable

27

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

28

PLUG

90338-14827-00

Unavailable

29

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

Unavailable

30

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

31

BOLT, FLANGE

95022-06008-00

Unavailable

32

CLAMP

90464-12830-00

Unavailable

33

MAIN SWITCH ASSY

5KM-82510-02-00

Unavailable

33

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

34

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

35

CAP, KEY

3HN-82579-00-00

Unavailable

36

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

37

WIRE HARNESS ASSY

1NS-82590-00-00

Unavailable

37

WIRE HARNESS ASSY

1NS-82590-10-00

Unavailable

38

CIRCUIT BREAKER ASSY

3D5-82180-00-00

Unavailable

39

THERMO SWITCH ASSY

3D5-82560-00-00

Unavailable

40

FUSE (15A)

67F-82151-50-00

Unavailable

41

. FUSE (10A)

67F-82151-40-00

Unavailable

42

. FUSE (3A)

67F-82151-30-00

Unavailable

43

DIODE ASSY

3WP-81980-00-00

Unavailable

44

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

45

RELAY ASSY

5DM-81950-01-00

Unavailable

46

CLAMP(JN6)

90464-40825-00

Unavailable

47

CLAMP

90464-12830-00

Unavailable

48

CLAMP(JN6)

90464-40825-00

Unavailable

49

BAND, SWITCH CORD

437-83936-01-00

Unavailable

50

CLAMP(JN6)

90464-40825-00

Unavailable

51

CLAMP

5B4-F1338-00-00

Unavailable

52

CLAMP

5B4-F1338-00-00

Unavailable

53

CLAMP

5B4-F1338-00-00

Unavailable

54

CLAMP

5B4-F1338-00-00

Unavailable

55

CLAMP

5B4-F1338-00-00

Unavailable

56

CLAMP(JN6)

90464-40825-00

Unavailable

57

CLAMP

5B4-F1338-00-00

Unavailable

58

CLAMP

1NS-F1338-00-00

Unavailable

59

CLAMP

90464-12830-00

Unavailable

60

CLAMP(JN6)

90464-31827-00

Unavailable

61

CLAMP

90464-12830-00

Unavailable

62

CLAMP

90464-48800-00

Unavailable

63

CLAMP

90464-25826-00

Unavailable

64

CLAMP

90464-48800-00

Unavailable

65

TERMINAL ASSY

5FU-H1920-10-00

Unavailable

66

NUT

5FU-H191B-10-00

Unavailable

67

COVER,CONNECTER

5FU-H2599-01-00

Unavailable
