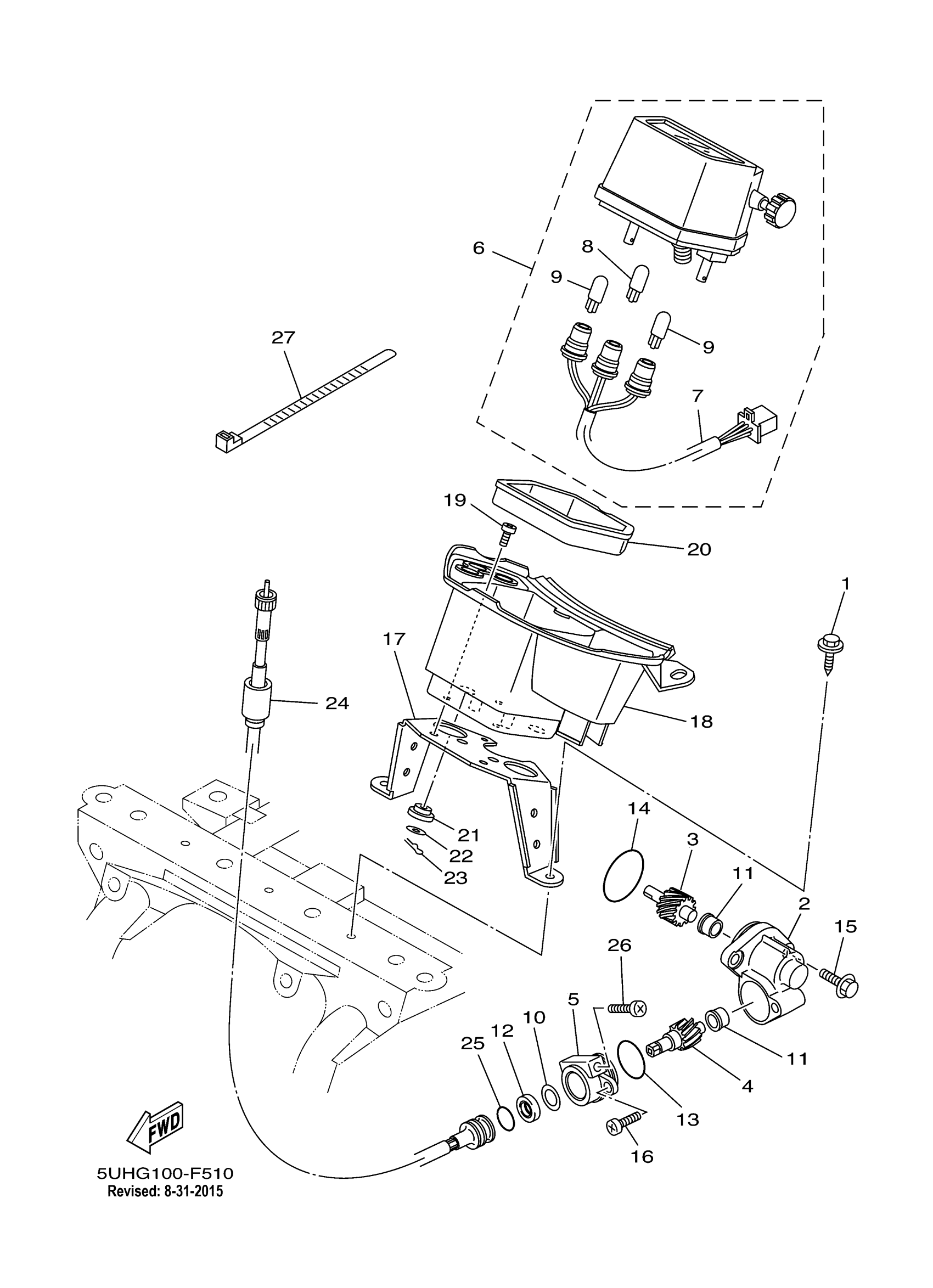

Yamaha YFM35FGHD (GRIZZLY 350 4WD HUNTER) 1NSA 2013 ALTERNATE FOR METER Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06157-00

$8.49

2

HOUSING, TACHOMETER GEAR

4WV-17811-00-00

Unavailable

3

GEAR, DRIVE

4WV-17831-00-00

$64.99

4

GEAR, DRIVEN

4WV-17841-00-00

Unavailable

5

HOUSING, TACHOMETER GEAR

59V-17811-00-00

$94.99

6

SPEEDOMETER ASSY

12S-83570-00-00

$128.99

7

SOCKET, METER

4SH-83536-10-00

Unavailable

8

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

9

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

10

WASHER (692)

90201-12M34-00

Unavailable

11

BUSH (214-17843-00)

90381-08002-00

$11.49

12

OIL SEAL (30X)

93102-08307-00

$7.49

13

O-RING(59V)

93210-24253-00

$7.49

14

O-RING (341)

93210-32172-00

$7.49

15

. BOLT, FLANGE

95027-06020-00

Unavailable

16

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

17

. BRKT, METER

5UH-F834L-00-00

Unavailable

18

PANEL, CONSOLE 1

5UH-F837L-11-00

Unavailable

19

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

20

. DAMPER

5UH-H252R-00-00

Unavailable

21

DAMPER 2

1M1-83526-01-00

Unavailable

22

WASHER, SPECIAL

4X8-83524-00-00

Unavailable

23

CLIP (156-83525-00)

90468-10050-00

Unavailable

24

SPEEDOMETER CABLE

5VH-H3550-01-00

Unavailable

25

O-RING (26H)

93210-14579-00

Unavailable

26

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

27

CLAMP(JN6)

90464-31827-00

Unavailable
