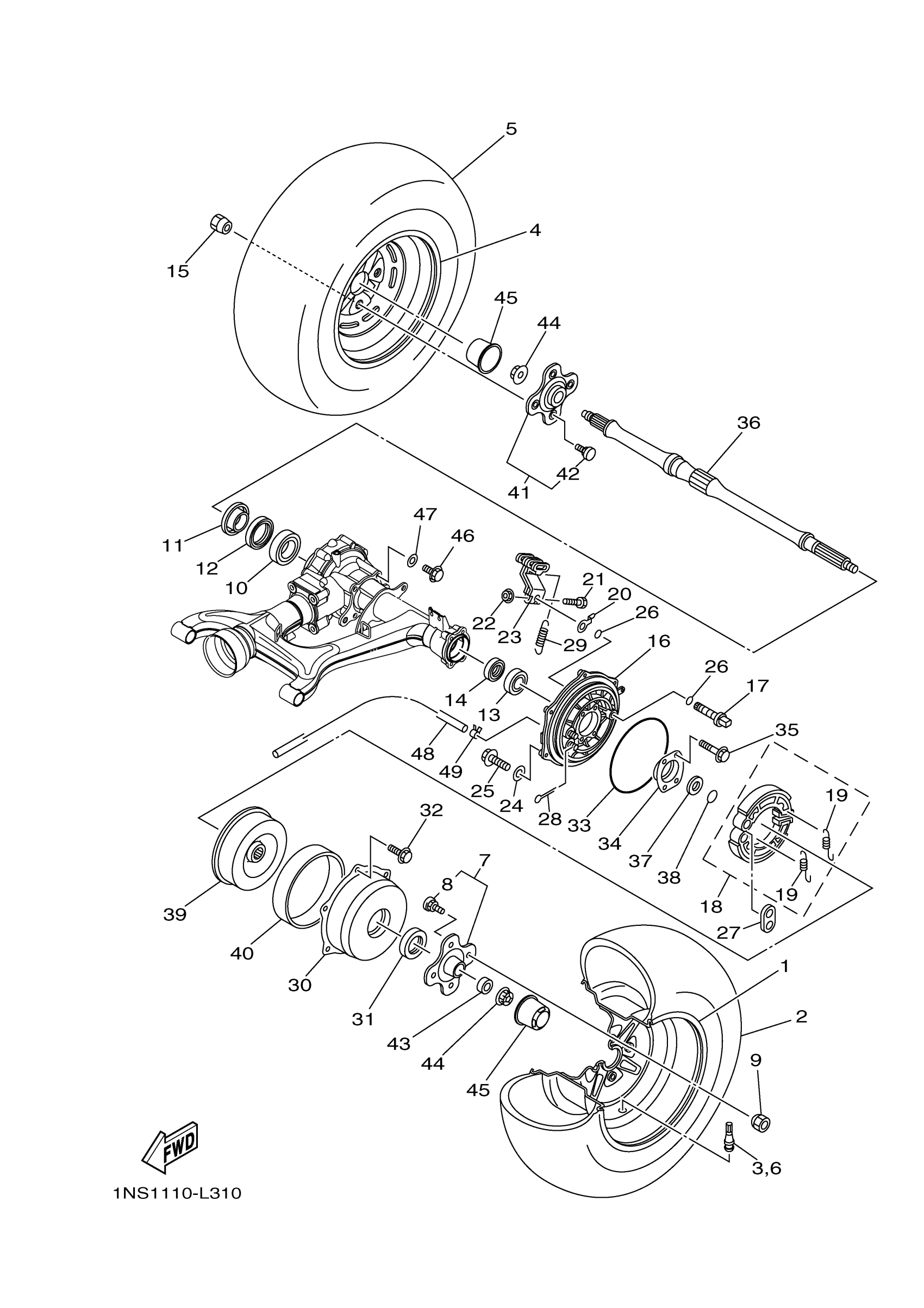

Yamaha YFM35FGHB (GRIZZLY 350 4WD HUNTER) 1NS5 2012 REAR WHEEL Diagram
#
2
TIRE (AT25X10-12 MU14TL)
94110-12813-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
5
TIRE (AT25X10-12 MU14TL)
94110-12813-00
Unavailable
6
VALVE, RIM
93900-00812-00
Unavailable
8
BOLT
1P0-F5411-00-00
Unavailable
10
BEARING
93306-008Y1-00
Unavailable
16
PLATE, BRAKE SHOE
5VH-F5321-01-00
Unavailable
17
CAMSHAFT
5VH-F5351-01-00
Unavailable
18
BRAKE SHOE SET
5VH-WF536-00-00
Unavailable
19
SPRING, RETURN
5VH-F5333-01-00
Unavailable
20
PLATE, INDICATOR
5VH-F533A-01-00
Unavailable
21
BOLT
90101-06824-00
Unavailable
22
NUT, U FLANGE
95604-06200-00
Unavailable
23
LEVER, CAMSHAFT
5VH-F5355-01-00
Unavailable
24
GASKET
5VH-F5898-00-00
Unavailable
25
BOLT, CALIPER
5VH-F5818-00-00
Unavailable
26
SEAL, CAMSHAFT
5VH-F5359-00-00
Unavailable
27
PLATE 1
5VH-F539F-01-00
Unavailable
28
PIN, COTTER
91490-25020-00
Unavailable
29
SPRING, TENSION(4GB)
90506-16482-00
Unavailable
30
COVER, PLATE
5FU-F5327-01-00
Unavailable
31
SEAL, HUB DUST
5FU-F5319-10-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
SEAL, DUST
5FU-F537Y-00-00
Unavailable
34
RETAINER
4XE-G6513-00-00
Unavailable
35
BOLT, FLANGE
90105-088A4-00
Unavailable
36
AXLE, WHEEL
1NS-F5381-00-00
Unavailable
37
COLLAR(2NL)
90387-284T0-00
Unavailable
38
O-RING(22F)
93210-26662-00
Unavailable
39
DRUM ASSY WITH RING
5FU-F5310-10-00
Unavailable
40
DRUM ASSY WITH RING
5FU-F5310-10-00
Unavailable
41
COLLAR, WHEEL
1NS-F5186-00-00
Unavailable
42
BOLT
1P0-F5411-00-00
Unavailable
43
WASHER, WHEEL
1NS-F5384-00-00
Unavailable
44
NUT
90179-20016-00
Unavailable
45
WHEEL CAP ASSY.
1NS-F530B-00-00
Unavailable
46
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
47
WASHER, PLATE
90201-10035-00
Unavailable
48
HOSE
90445-07807-00
Unavailable
49
CLIP
90467-070A0-00
Unavailable
