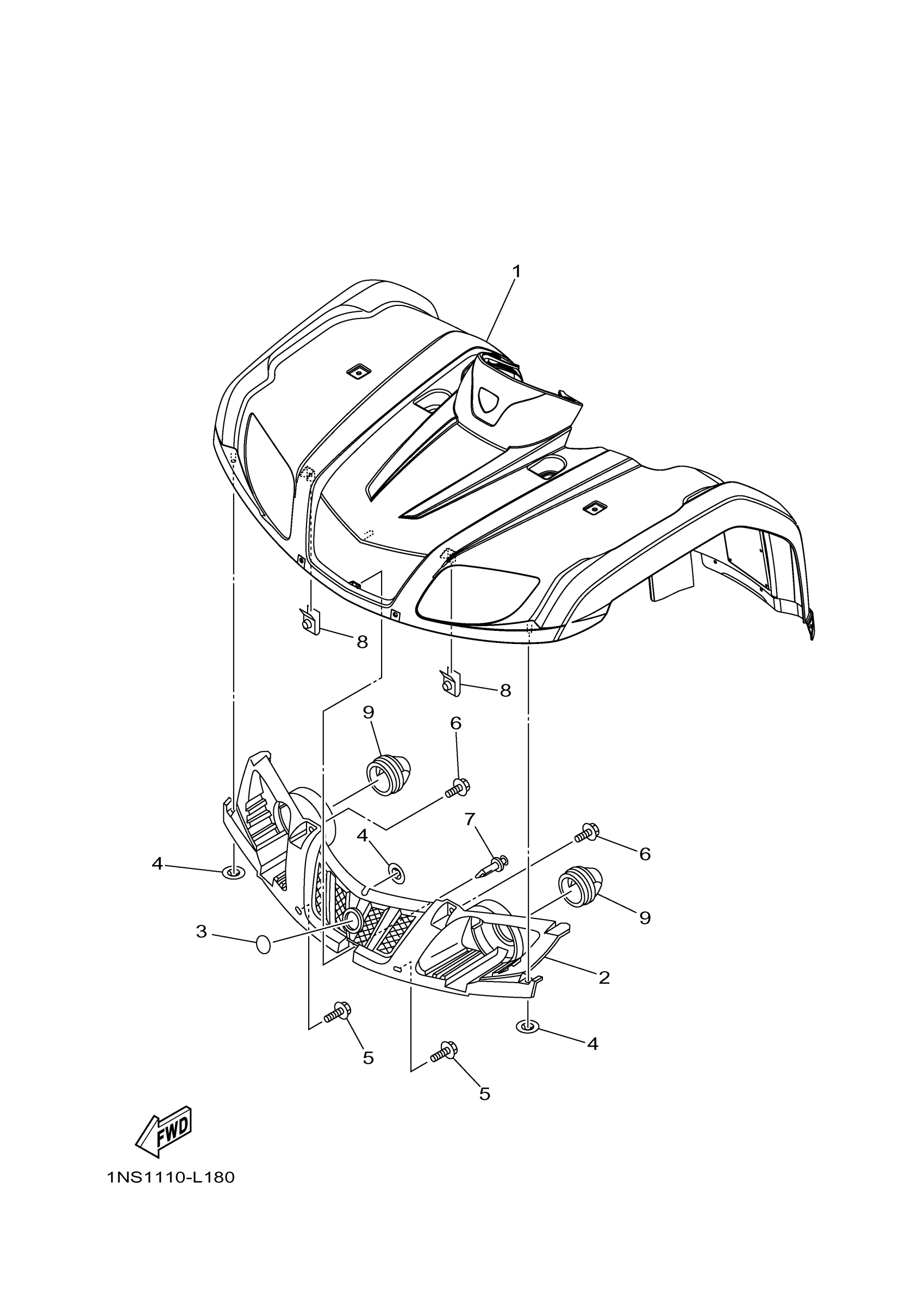

Yamaha YFM35FGHB (GRIZZLY 350 4WD HUNTER) 1NS5 2012 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

5UH-F1500-M0-00

Unavailable

2

GRILLE, FRONT

5UH-F8309-01-00

Unavailable

3

TUNING FORK MARK

5FU-F175B-01-00

$12.25

4

NUT, SPRING

90183-08800-00

$1.23

5

BOLT, WITH WASHER

90119-06157-00

$6.23

6

BOLT, WITH WASHER

90119-06157-00

$6.23

7

RIVET

90269-06804-00

$1.19

8

NUT, SPRING(4ES)

90183-06069-00

$5.69

9

CAP

5UH-F8349-00-00

$11.65
