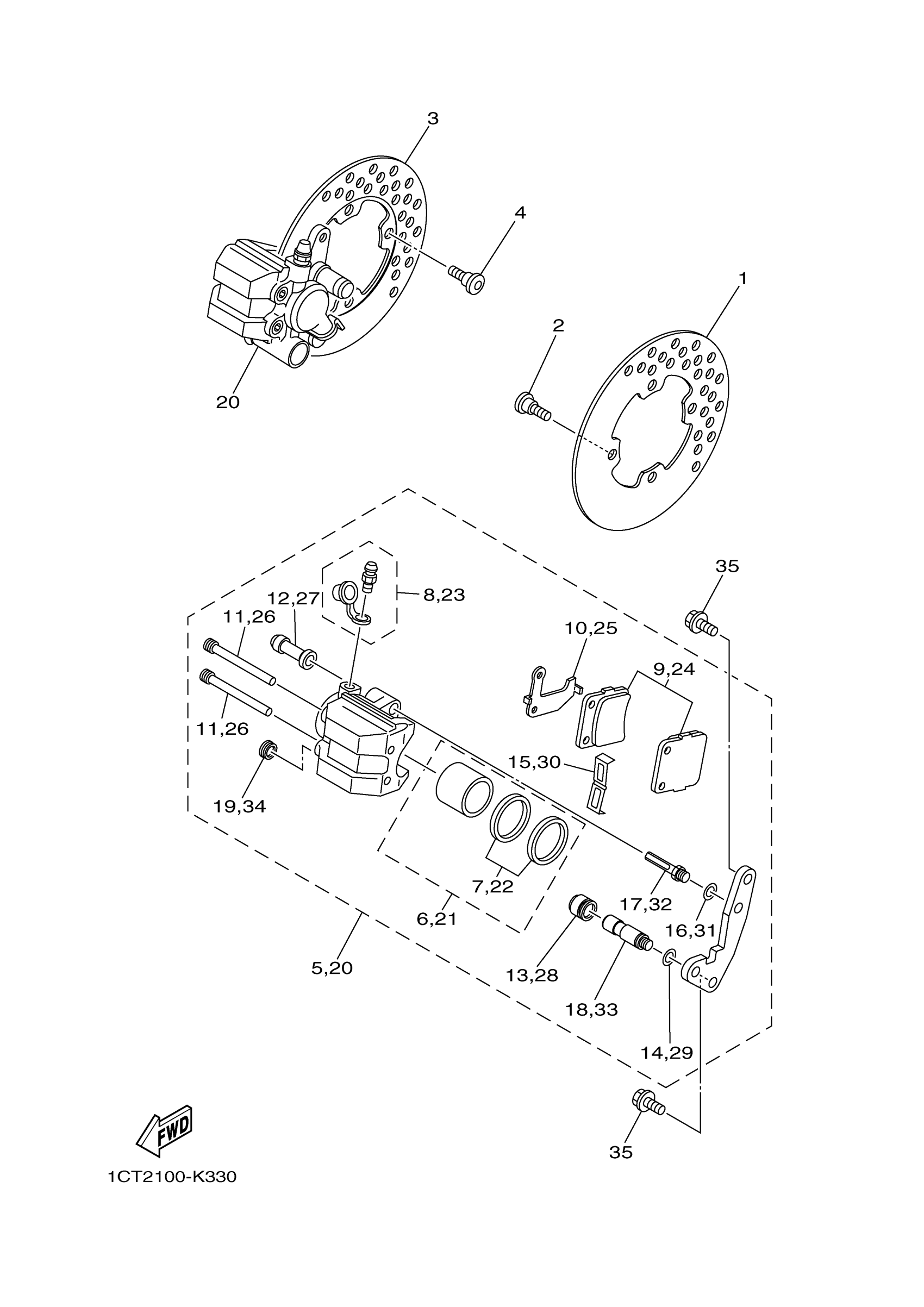

Yamaha YFM35FGHB (GRIZZLY 350 4WD HUNTER) 1NS5 2012 FRONT BRAKE CALIPER Diagram
#
Description
Price
1
DISC, BRAKE (FRONT)
5ND-F582T-00-00
Unavailable
3
DISC, BRAKE (FRONT)
5ND-F582T-00-00
Unavailable
16
WASHER, SPRING
1UY-25938-51-00
Unavailable
17
BOLT
1UY-25926-51-00
Unavailable
18
PIN, SLIDE
3GD-25914-00-00
Unavailable
19
DUST PLUG
3GD-25916-00-00
Unavailable
20
CALIPER ASSY (RIGHT)
3GD-2580U-01-00
Unavailable
25
SHIM, CALIPER
3GD-25828-00-00
Unavailable
31
WASHER, SPRING
1UY-25938-51-00
Unavailable
32
BOLT
1UY-25926-51-00
Unavailable
33
PIN, SLIDE
3GD-25914-00-00
Unavailable
34
DUST PLUG
3GD-25916-00-00
Unavailable
35
BOLT, FLANGE
90105-08161-00
Unavailable
