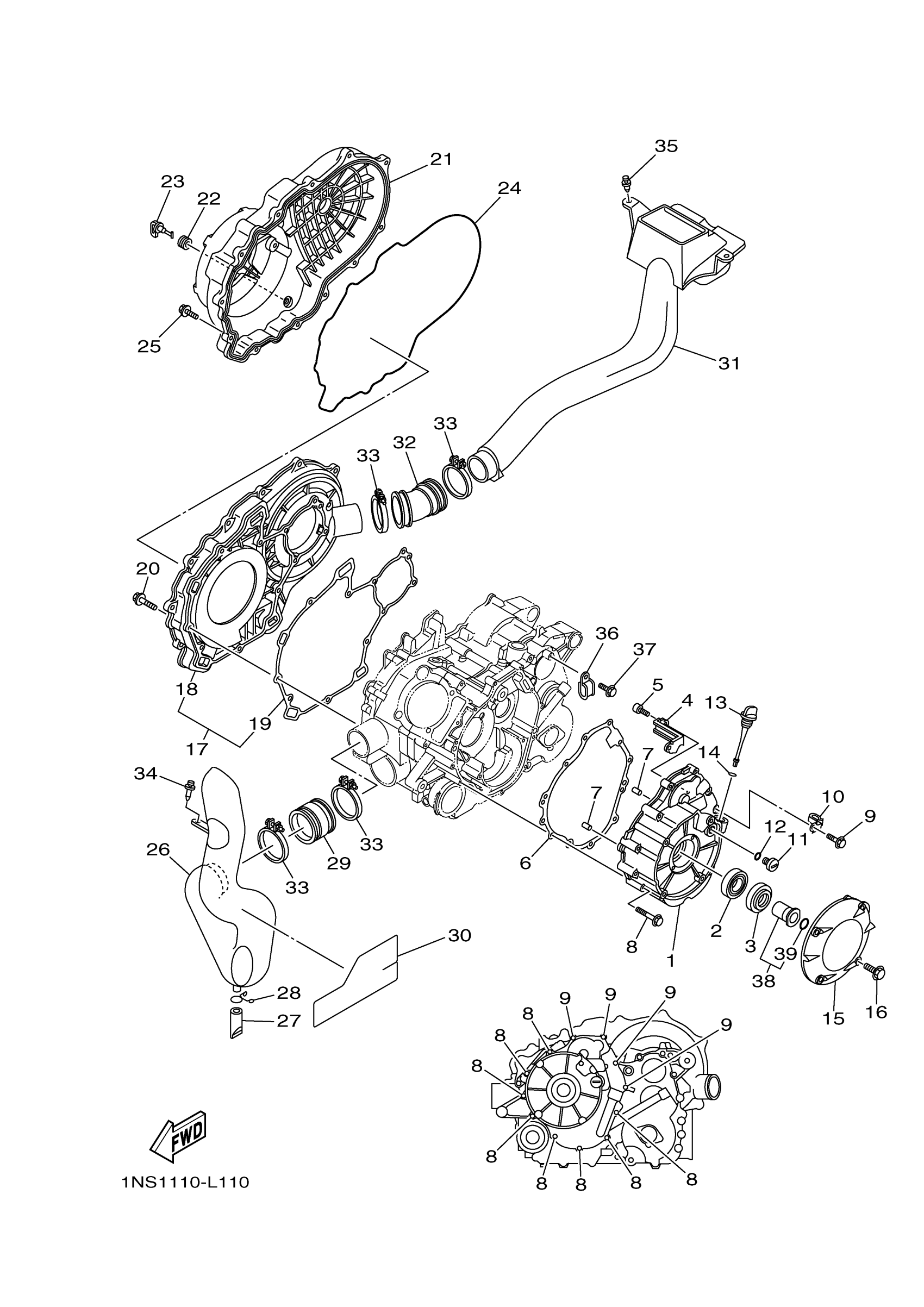

Yamaha YFM35FGHB (GRIZZLY 350 4WD HUNTER) 1NS5 2012 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5UH-15411-00-00

Unavailable

2

BEARING(55X)

93306-07801-00

$55.99

3

OIL SEAL

93102-28017-00

Unavailable

4

PLATE

5UH-15113-00-00

$4.21

5

BOLT(47X)

91312-05012-00

$4.29

6

GASKET, CRANKCASE COVER 1

5UH-15451-00-00

$20.99

7

PIN, DOWEL(2VG)

99530-10116-00

$4.25

8

BOLT, FLANGE

95022-06050-00

$3.23

9

BOLT, FLANGE

95022-06030-00

$3.72

10

CLAMP(4MX)

90465-06376-00

$9.49

11

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

12

O-RING (2H9)

93210-14369-00

$7.49

13

PLUG, OIL LEVEL

517-15362-10-00

$17.49

14

O-RING (603)

93210-19026-00

$8.49

15

COVER

3C2-15492-00-00

$65.99

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

CRANKCASE COVER ASSY 2

5UH-15420-00-00

Unavailable

18

COVER, CRANKCASE 2

5UH-15421-01-00

Unavailable

19

SEAL, CRANKCASE

5UH-15315-00-00

Unavailable

20

95822-06030

95822-06030-00

Unavailable

21

COVER, CRANKCASE 3

5UH-15431-01-00

Unavailable

22

GROMMET (462)

90480-13018-00

Unavailable

23

PLUG, DRAIN

5KM-15351-00-00

Unavailable

24

SEAL, CRANKCASE

5UH-15379-00-00

Unavailable

25

BOLT, FLANGE

95817-06020-00

Unavailable

26

DUCT, AIR

5UH-E5471-00-00

Unavailable

27

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

28

CLIP

90467-160A4-00

Unavailable

29

SEAL, AIR DUCT

5ND-E5472-01-00

Unavailable

30

PROTECTOR

1NS-E5491-00-00

Unavailable

31

DUCT, AIR

5ND-E5473-00-00

Unavailable

32

SEAL, AIR DUCT

5UH-E5474-00-00

Unavailable

33

HOSE CLAMP ASSY

90450-64004-00

Unavailable

34

RIVET

90269-06800-00

Unavailable

35

RIVET

90269-08813-00

Unavailable

36

CLAMP(8BN)

90461-08134-00

Unavailable

37

BOLT, FLANGE

95022-06012-00

Unavailable

38

STARTER PULLEY ASSY

3D5-15730-00-00

Unavailable

39

O-RING (538)

93210-16290-00

Unavailable
