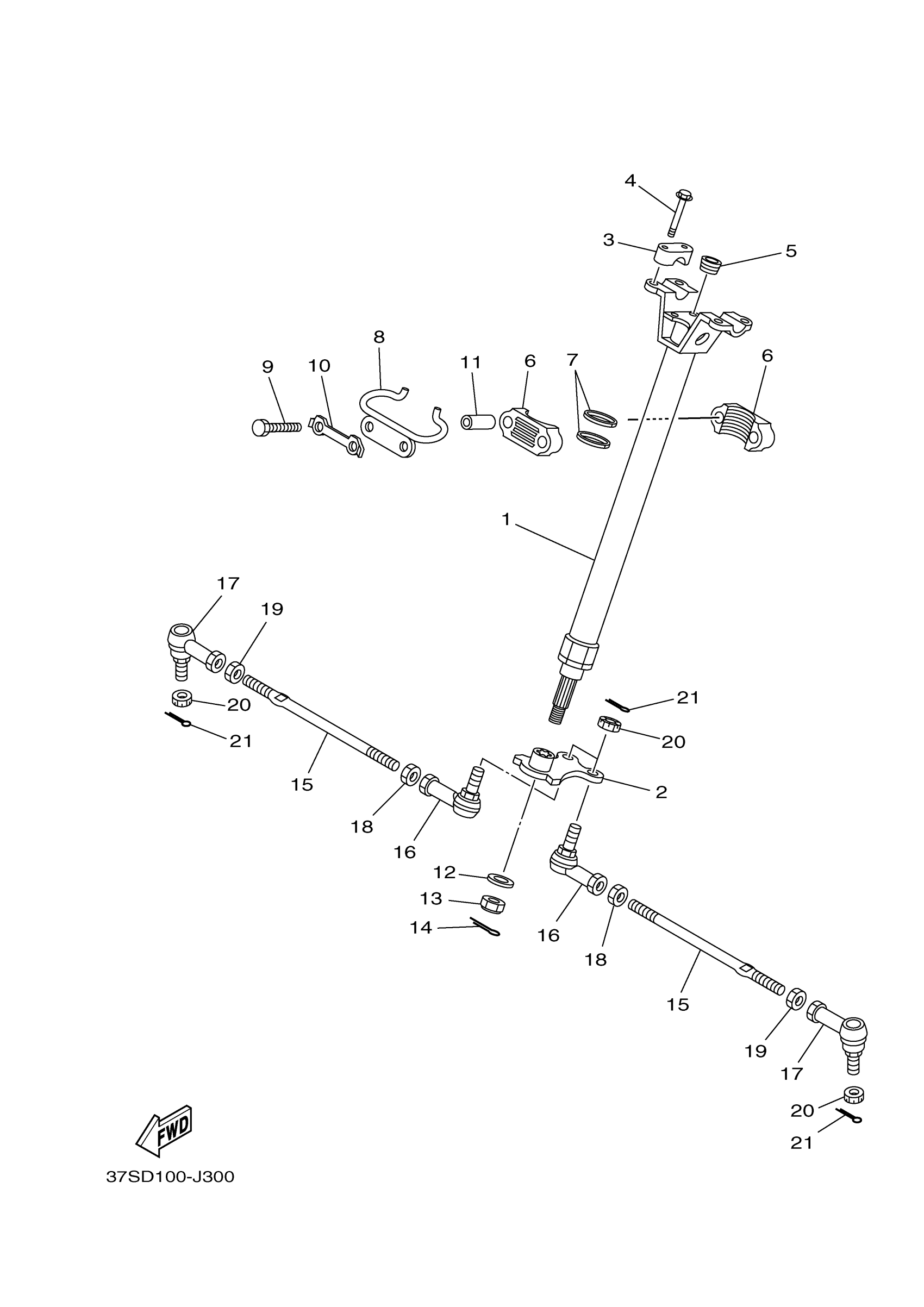

Yamaha YFM35FGHA (GRIZZLY 350 4WD HUNTER) 1AB6 2011 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5ND-F3813-11-00

Unavailable

2

ARM,PITMAN

5ND-F3816-12-00

$25.90

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

4

BOLT, FLANGE

95812-08030-00

$3.01

5

PLUG, TAPER(2HR)

90336-28053-00

$8.14

6

PLANE BEARING, STE

37S-F3812-00-00

$5.81

7

OIL SEAL

93112-31800-00

$1.38

8

BRACKET, STEERING LOWER

5ND-F3868-00-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$6.39

11

COLLAR(85G)

90387-106T4-00

$10.53

12

WASHER, PLATE

90201-14021-00

$4.81

13

NUT, SELF-LOCKING

90185-14009-00

$7.77

14

PIN, COTTER

91490-20035-00

$3.02

15

ROD, TIE

37S-23831-00-00

$48.47

16

JOINT, UNIVERSAL 1

37S-23841-00-00

Unavailable

17

JOINT, UNIVERSAL 2

4S2-23845-00-00

Unavailable

18

NUT 1

37S-23833-00-00

Unavailable

19

NUT 2

37S-23834-00-00

Unavailable

20

NUT, CASTLE

90171-12001-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable
