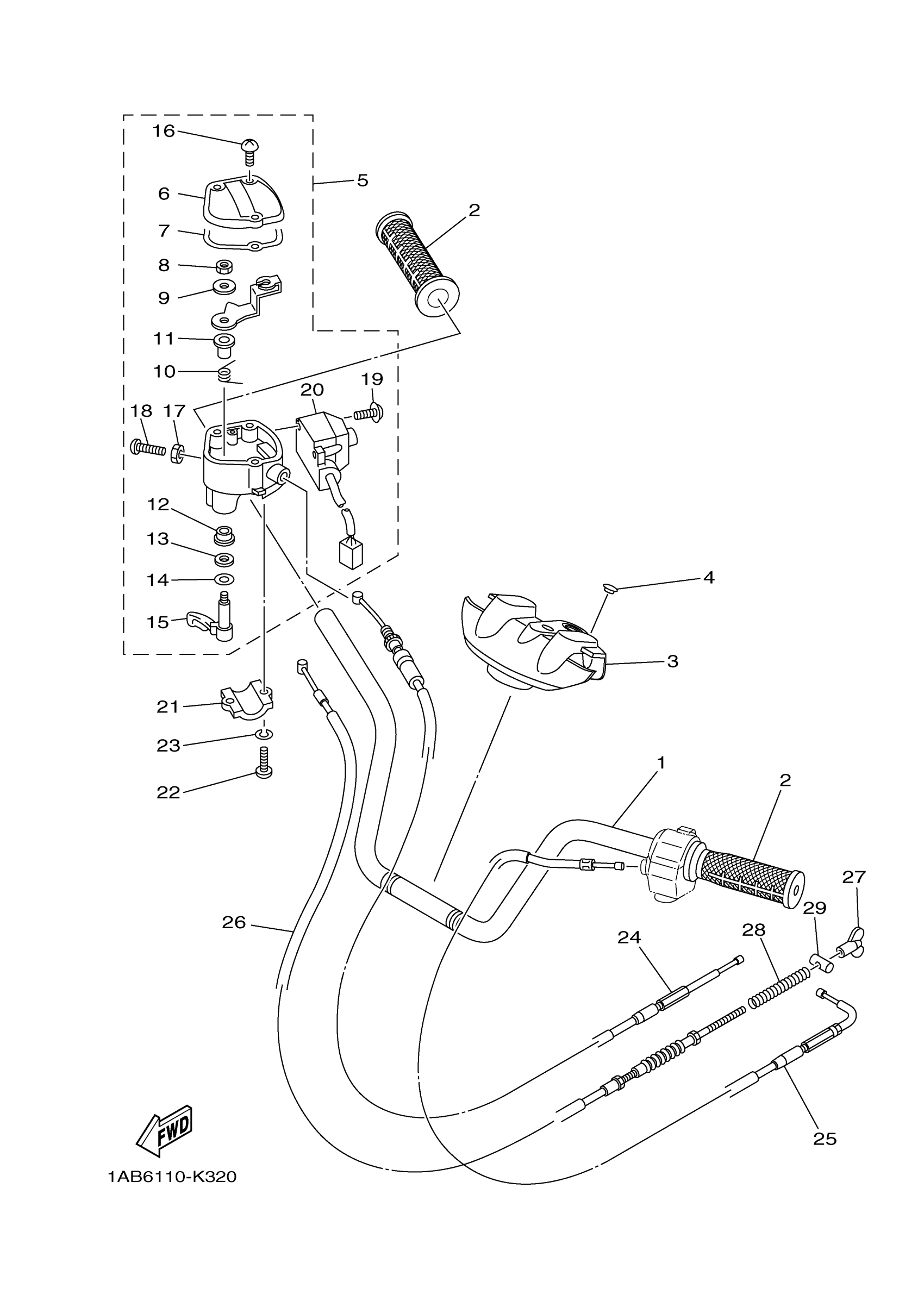

Yamaha YFM35FGHA (GRIZZLY 350 4WD HUNTER) 1AB6 2011 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

$68.99

2

GRIP

5FU-F6241-10-00

$17.49

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$46.99

4

PLUG

90338-14827-00

Unavailable

5

THROTTLE LEVER ASSY

4WV-26250-12-00

Unavailable

6

CAP, GEAR

4KB-2628F-10-00

$30.99

7

GASKET

4KB-2628G-00-00

$13.49

8

NUT, U

95617-05100-00

$9.49

9

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

10

SPRING

1NV-26304-00-00

$11.99

11

COLLAR

1NV-26259-01-00

$7.99

12

COLLAR

1NV-2625K-00-00

$6.99

13

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

14

WASHER

1NV-26129-00-00

$6.99

15

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

16

SCREW(3HE)

90149-04278-00

Unavailable

17

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

Unavailable

19

. SCREW, WITH WASHER

97607-04210-00

Unavailable

20

SWITCH, HANDLE 1

4WV-83976-00-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

CABLE, THROTTLE 1

5GH-26311-11-00

Unavailable

25

CABLE,STARTER 1

5VH-F6331-01-00

Unavailable

26

CABLE, BRAKE

5TE-26341-00-00

Unavailable

27

NUT, AJUSTING

20E-26343-00-00

Unavailable

28

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

29

PIN 1562723700

90249-12008-00

Unavailable
