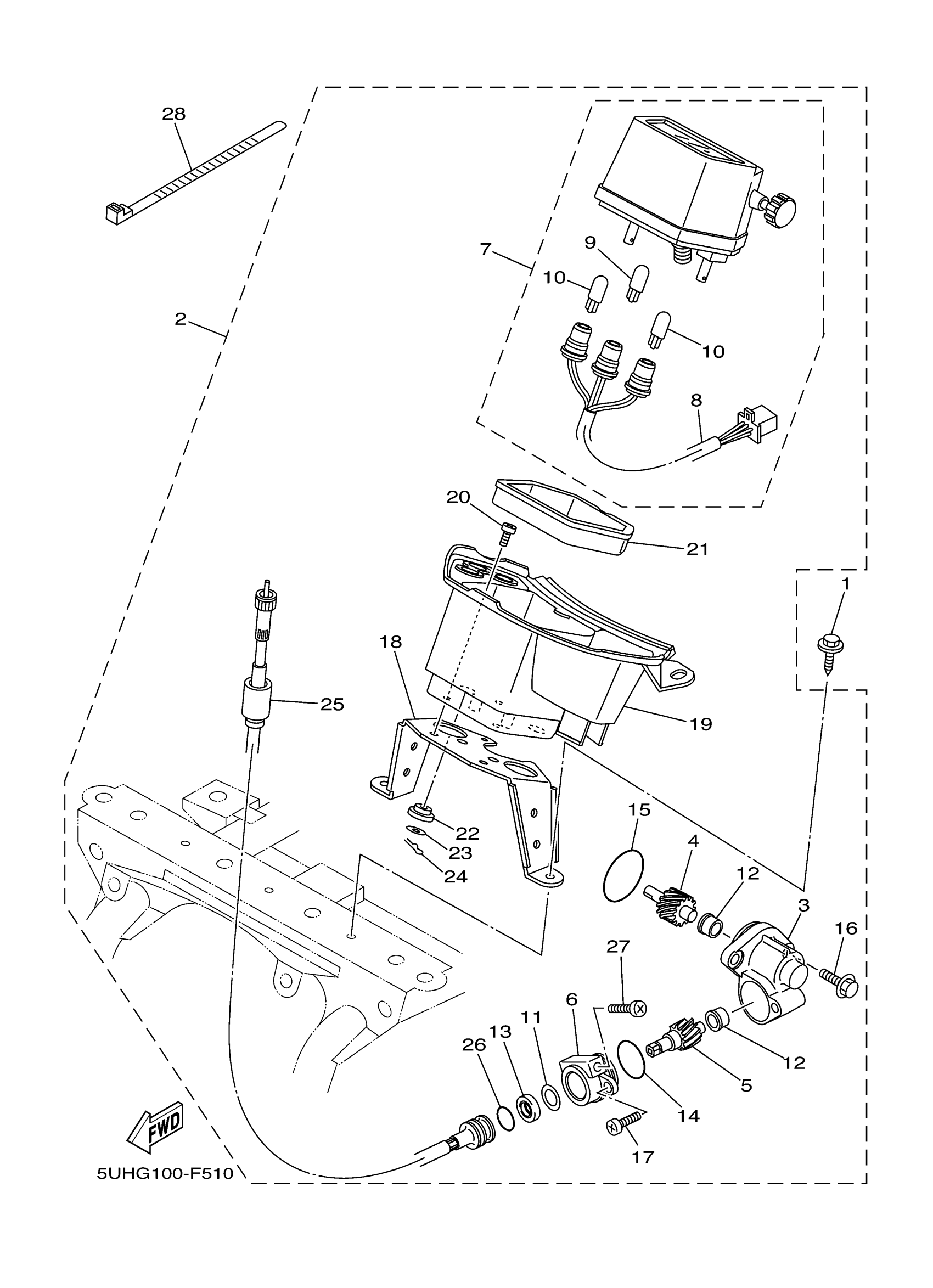

Yamaha YFM35FGHA (GRIZZLY 350 4WD HUNTER) 1AB6 2011 ALTERNATE FOR METER Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06157-00

$8.49

2

BRUIN SPEEDOMETER KIT

5UH-W0081-00-KT

Unavailable

3

HOUSING, TACHOMETER GEAR

4WV-17811-00-00

Unavailable

4

GEAR, DRIVE

4WV-17831-00-00

$64.99

5

GEAR, DRIVEN

4WV-17841-00-00

Unavailable

6

HOUSING, TACHOMETER GEAR

59V-17811-00-00

$94.99

7

SPEEDOMETER ASSY

4SH-83570-01-00

Unavailable

8

SOCKET, METER

4SH-83536-00-00

Unavailable

9

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

10

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

11

WASHER (692)

90201-12M34-00

Unavailable

12

BUSH (214-17843-00)

90381-08002-00

$11.49

13

OIL SEAL (30X)

93102-08307-00

$7.49

14

O-RING(59V)

93210-24253-00

$7.49

15

O-RING (341)

93210-32172-00

$7.49

16

. BOLT, FLANGE

95027-06020-00

Unavailable

17

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

18

. BRKT, METER

5UH-F834L-00-00

Unavailable

19

PANEL, CONSOLE 1

5UH-F837L-11-00

Unavailable

20

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

21

. DAMPER

5UH-H252R-00-00

Unavailable

22

DAMPER 2

1M1-83526-01-00

Unavailable

23

WASHER, SPECIAL

4X8-83524-00-00

Unavailable

24

CLIP (156-83525-00)

90468-10050-00

Unavailable

25

SPEEDOMETER CABLE

5VH-H3550-01-00

Unavailable

26

O-RING (26H)

93210-14579-00

Unavailable

27

SCREW, PAN

98517-06030-00

Unavailable

28

CLAMP(JN6)

90464-31827-00

Unavailable
