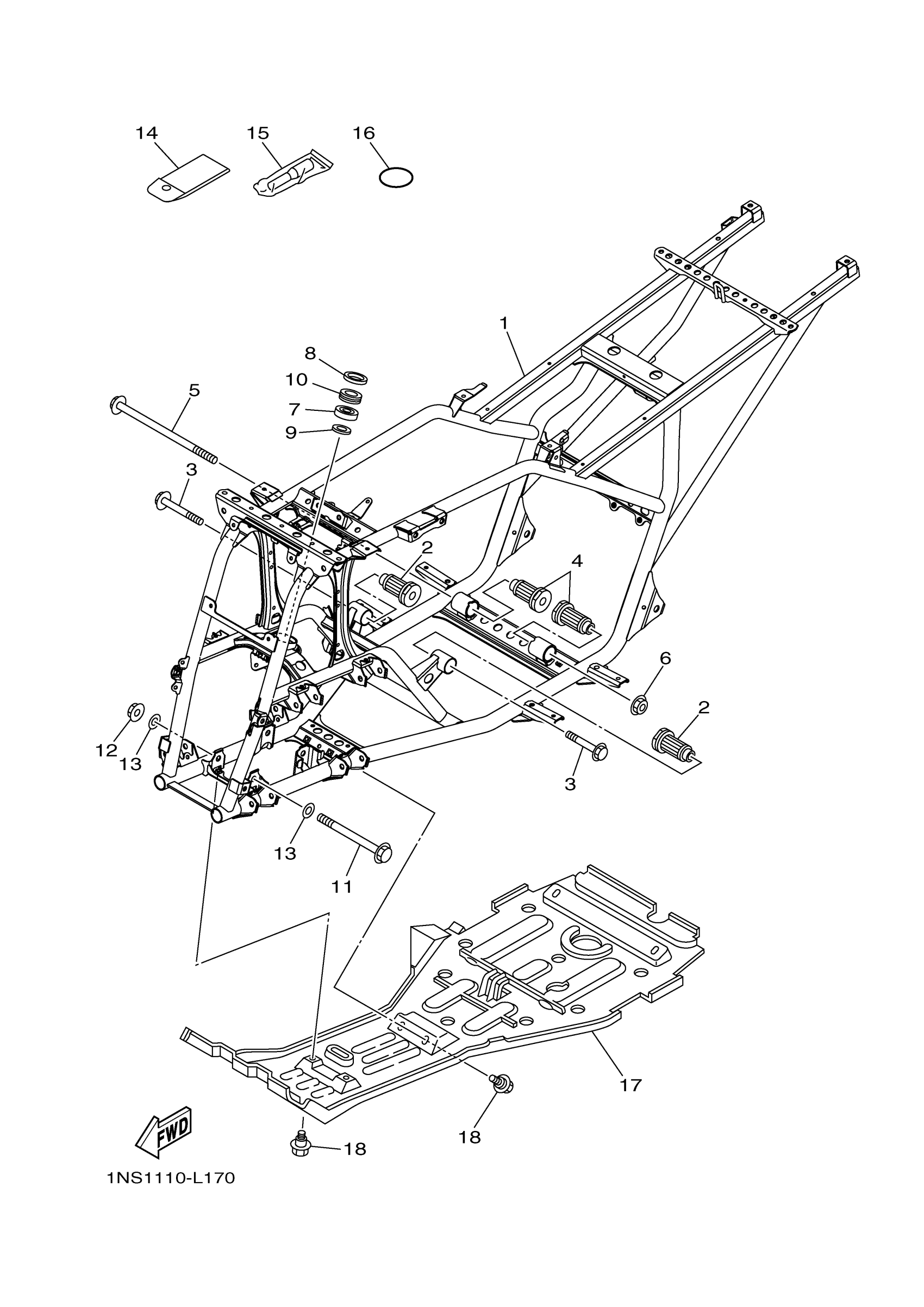

Yamaha YFM35FGDR (GRIZZLY 350 4WD) 1NS62 2013 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1NS-F1110-00-00

Unavailable

2

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

3

BOLT, FLANGE

95812-10080-00

$9.49

4

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

5

BOLT, FLANGE

90105-10284-00

$10.49

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

BEARING

93306-203YN-00

$11.49

8

OIL SEAL (25X44X6-810)

93102-25081-00

$5.60

9

OIL SEAL (25X36X8-334)

93102-25099-00

$13.49

10

HOLDER, BEARING

2GU-23872-00-00

$25.99

11

BOLT, HEXAGON BASED WASHER.

90105-10051-00

Unavailable

12

NUT, S/L FLANGE

95602-10200-00

$4.82

13

WASHER, PLATE

90201-10035-00

$4.19

14

TOOL KIT

1CT-F8100-00-00

$12.99

15

GAUGE, AIR

1NV-2811A-01-00

$57.99

16

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

17

GUARD, ENGINE 1

5ND-F147A-03-00

Unavailable

18

BOLT

90109-06172-00

Unavailable
