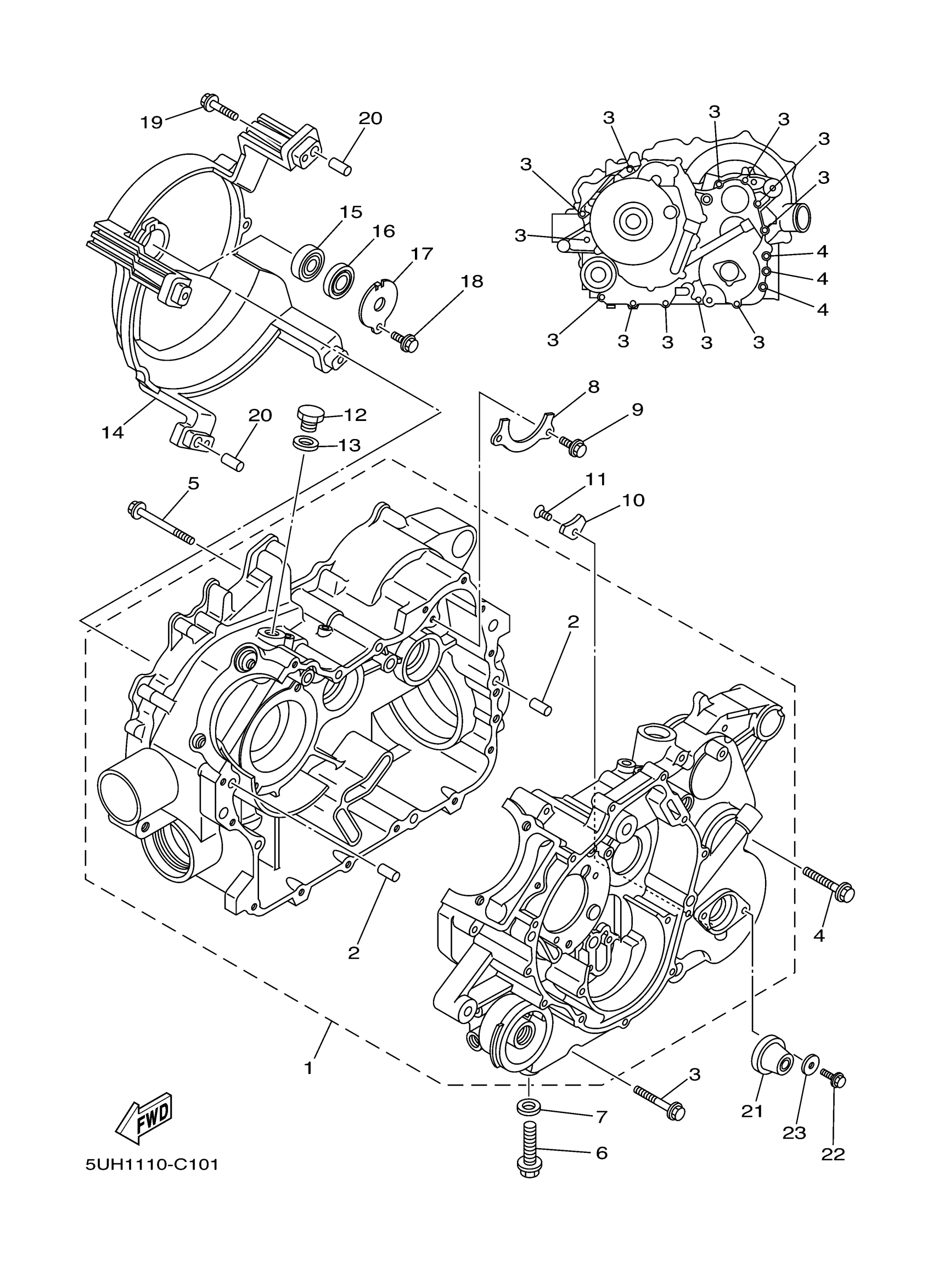

Yamaha YFM35FGDL (GRIZZLY 350 4WD) 1NS61 2013 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1NS-15100-09-00

$859.99

2

PIN, DOWEL(2VG)

99530-10116-00

$3.37

3

BOLT, FLANGE

95022-06050-00

$1.38

4

BOLT, FLANGE

95022-08045-00

$5.91

5

BOLT, FLANGE

95022-06070-00

$2.02

6

BOLT, FLANGE

95022-12040-00

$6.18

7

WASHER, PLATE 3412175700

90201-12172-00

$2.91

8

PLATE, BEARING COVER

5GH-15388-00-00

$4.48

9

BOLT, FLANGE

95817-06012-00

$1.49

10

PLATE, BEARING COVER

4XM-15383-00-00

$11.03

11

SCREW, COUNTERSUNK

90151-06023-00

$6.52

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

13

GASKET

214-11198-01-00

$2.66

14

HOUSING, BEARING

5UH-15442-00-00

$145.00

15

BEARING(3WF)

93306-20119-00

$28.48

16

OIL SEAL

93101-12168-00

$3.22

17

PLATE, BEARING COVER

4WV-15381-00-00

$7.32

18

BOLT, FLANGE

95022-06012-00

$3.00

19

95822-06030

95822-06030-00

$1.54

20

PIN, DOWEL(2VG)

99530-10116-00

$3.37

21

PLUG, BLIND

5GH-15385-00-00

$15.80

22

BOLT, FLANGE

95022-06012-00

$3.00

23

WASHER, PLATE

90201-06095-00

$6.31
