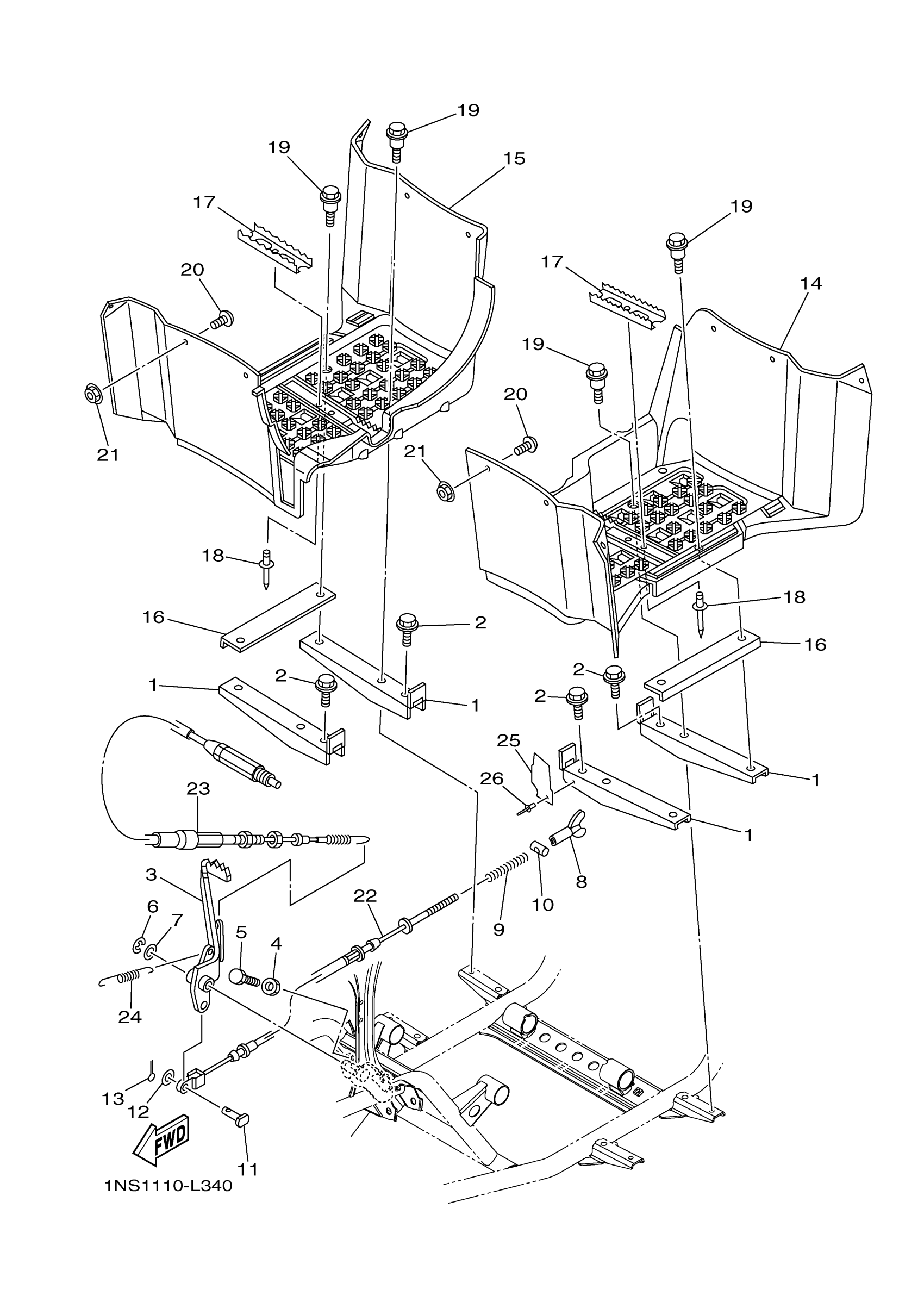

Yamaha YFM35FGBL (GRIZZLY 350 4WD) 1NS10 2012 STAND FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

5ND-F7471-01-00

$14.49

2

BOLT, FLANGE

95817-08012-00

$5.49

3

PEDAL, BRAKE

5TE-F7211-00-00

$71.99

4

NUT(JN5)

95317-06700-00

$8.49

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

CIRCLIP (137)

93430-10015-00

$9.49

7

WASHER, PLATE

90201-14023-00

$5.60

8

NUT, AJUSTING

20E-26343-00-00

$27.99

9

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

PIN, CLEVIS

90240-08005-00

$8.49

12

WASHER, PLATE

90201-08066-00

$8.49

13

PIN, COTTER

91490-20025-00

$1.99

14

COVER 1 (FOOTREST CVR LH SIDE)

5ND-F7453-01-00

$66.99

15

COVER 2 (FOOTREST CVR RH SIDE)

5ND-F7463-01-00

Unavailable

16

PLATE 1

5ND-F7445-00-00

Unavailable

17

ARM 1

5UH-F741A-10-00

Unavailable

18

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

19

BOLT

90109-06262-00

Unavailable

20

SCREW

90149-05034-00

Unavailable

21

NUT, S/L FLANGE

95607-05200-00

Unavailable

22

CABLE, BRAKE

1NS-26361-00-00

Unavailable

23

CABLE, CONTROL 2

5GH-2637F-11-00

Unavailable

24

SPRING, TENSION(2NL)

90506-12403-00

Unavailable

25

PLATE 1

5UH-F7445-02-00

Unavailable

26

RIVET (EU0)

90267-48938-00

Unavailable
