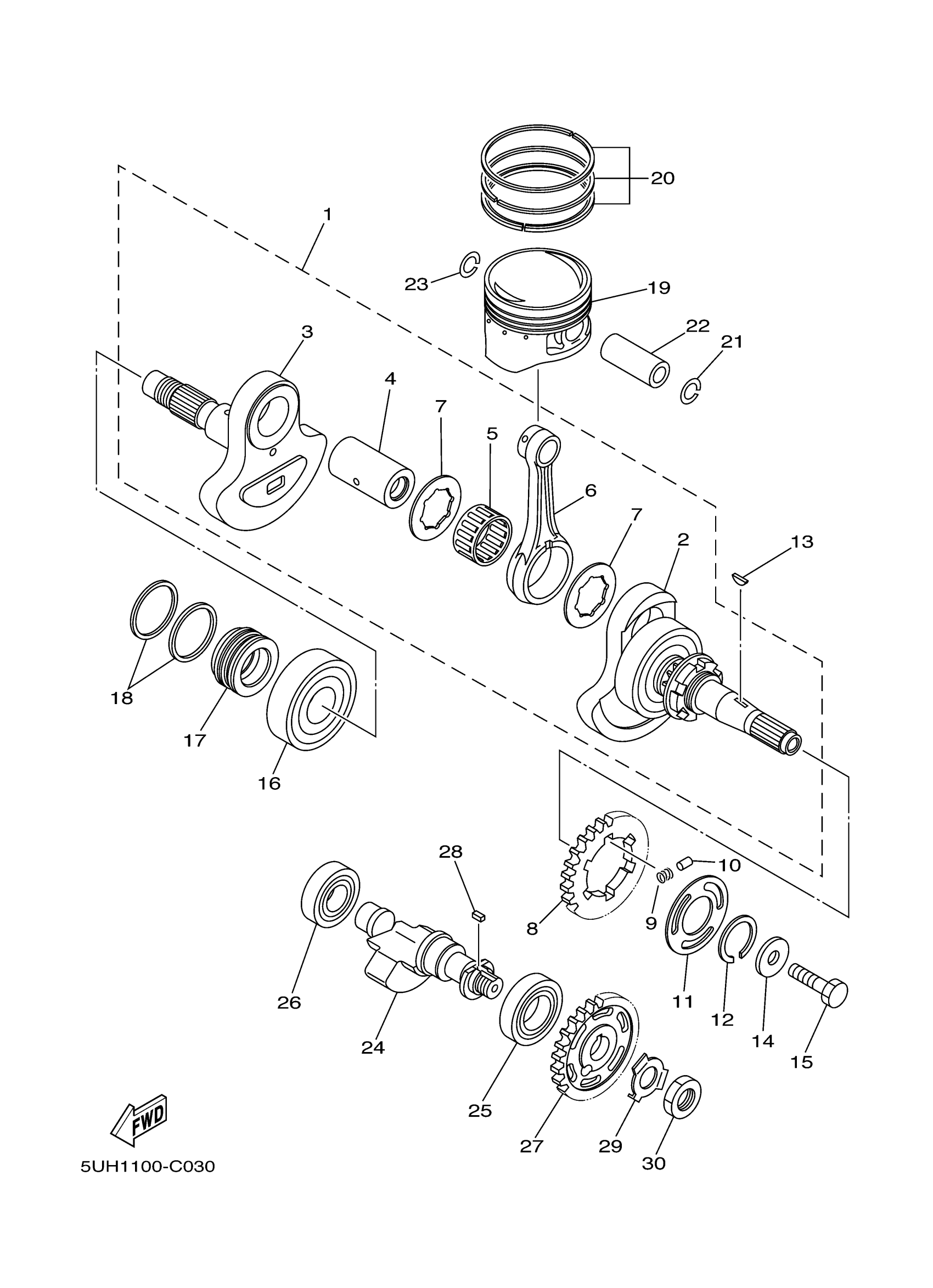

Yamaha YFM35FGBL (GRIZZLY 350 4WD) 1NS10 2012 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5UH-11400-00-00

$602.99

2

CRANK SUB ASSY 1

5UH-11401-09-00

Unavailable

3

CRANK SUB ASSY 2

5UH-11402-09-00

Unavailable

4

PIN, CRANK 1

30X-11681-00-00

Unavailable

5

BEARING, CYLINDRICAL(4KB)

93310-633P5-00

$60.99

6

ROD, CONNECTING

5UH-11651-00-00

$82.99

7

WASHER (30X)

90209-33253-00

$16.99

8

GEAR, DRIVE

5UH-11536-00-00

Unavailable

9

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

10

PIN, DOWEL

93605-10090-00

$8.49

11

WASHER, BEARING COVER

5UH-11565-00-00

$5.49

12

CIRCLIP

93410-32075-00

$9.49

13

KEY, WOODRUFF

90280-05001-00

$12.49

14

WASHER, PLATE

90201-10038-00

$5.60

15

BOLT

90101-10017-00

$4.51

16

BRG,R-B 6306 72MM 351G KY

93306-30615-00

Unavailable

17

SPACER 1

5UH-16181-00-00

Unavailable

18

SEAL, CRANK

5KM-11447-00-00

Unavailable

19

PISTON (STD)

5UH-11631-00-C0

Unavailable

19

PISTON (0.50MM O/S)

5UH-11636-00-00

Unavailable

19

PISTON (1.00MM O/S)

5UH-11638-00-00

Unavailable

20

PISTON RING SET (STD)

4GB-11610-00-00

Unavailable

20

PISTON RING SET (0.50MM O/S)

4GB-11610-20-00

Unavailable

20

PISTON RING SET (1.00MM O/S)

4GB-11610-40-00

Unavailable

21

CIRCLIP (26H)

93450-19095-00

Unavailable

22

PIN, PISTON

55V-11633-00-00

Unavailable

23

CIRCLIP (26H)

93450-19095-00

Unavailable

24

WEIGHT 1

5UH-11454-01-00

Unavailable

25

BEARING(2HR)

93306-00612-00

Unavailable

26

BEARING(1GJ)

93306-20458-00

Unavailable

27

GEAR, BALANCE WEIGHT

5UH-11531-00-00

Unavailable

28

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

29

WASHER, LOCK(1UY)

90215-16258-00

Unavailable

30

NUT, HEXAGON (30X)

90170-16326-00

Unavailable
