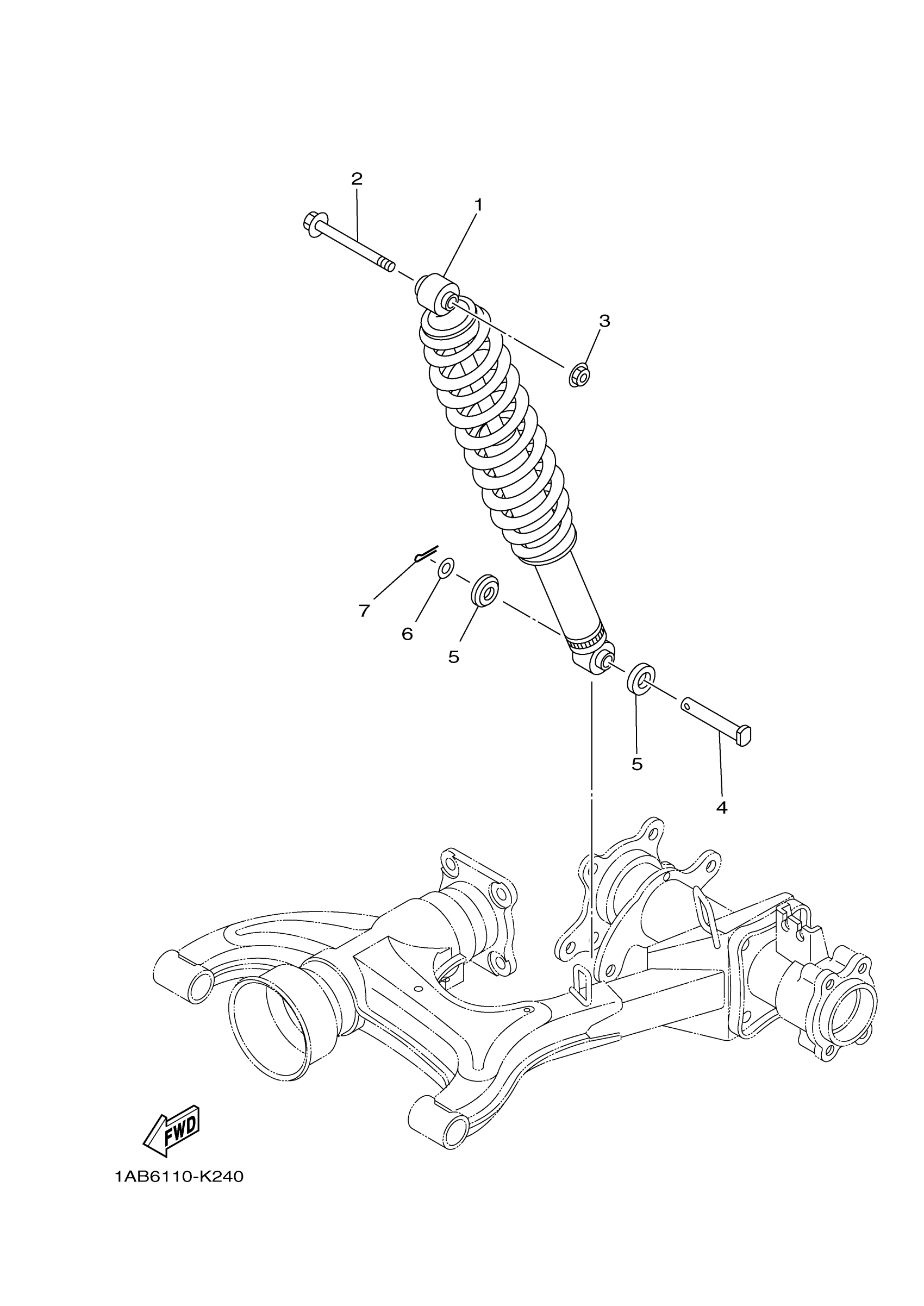

Yamaha YFM35FGAL (GRIZZLY 350 4WD) 1AB70 2011 REAR SUSPENSION Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY, REAR

1AB-F2210-00-00

Unavailable

2

BOLT,WASHER BASED

90105-12803-00

$4.29

3

NUT, SELF-LOCKING

90185-12009-00

$6.75

4

PIN, CLEVIS (10V)

90240-12092-00

$7.32

5

COVER, THRUST

1W1-22128-00-00

$16.83

6

WASHER, PLATE

90201-12049-00

$5.15

7

PIN, COTTER

91401-30025-00

$6.09
