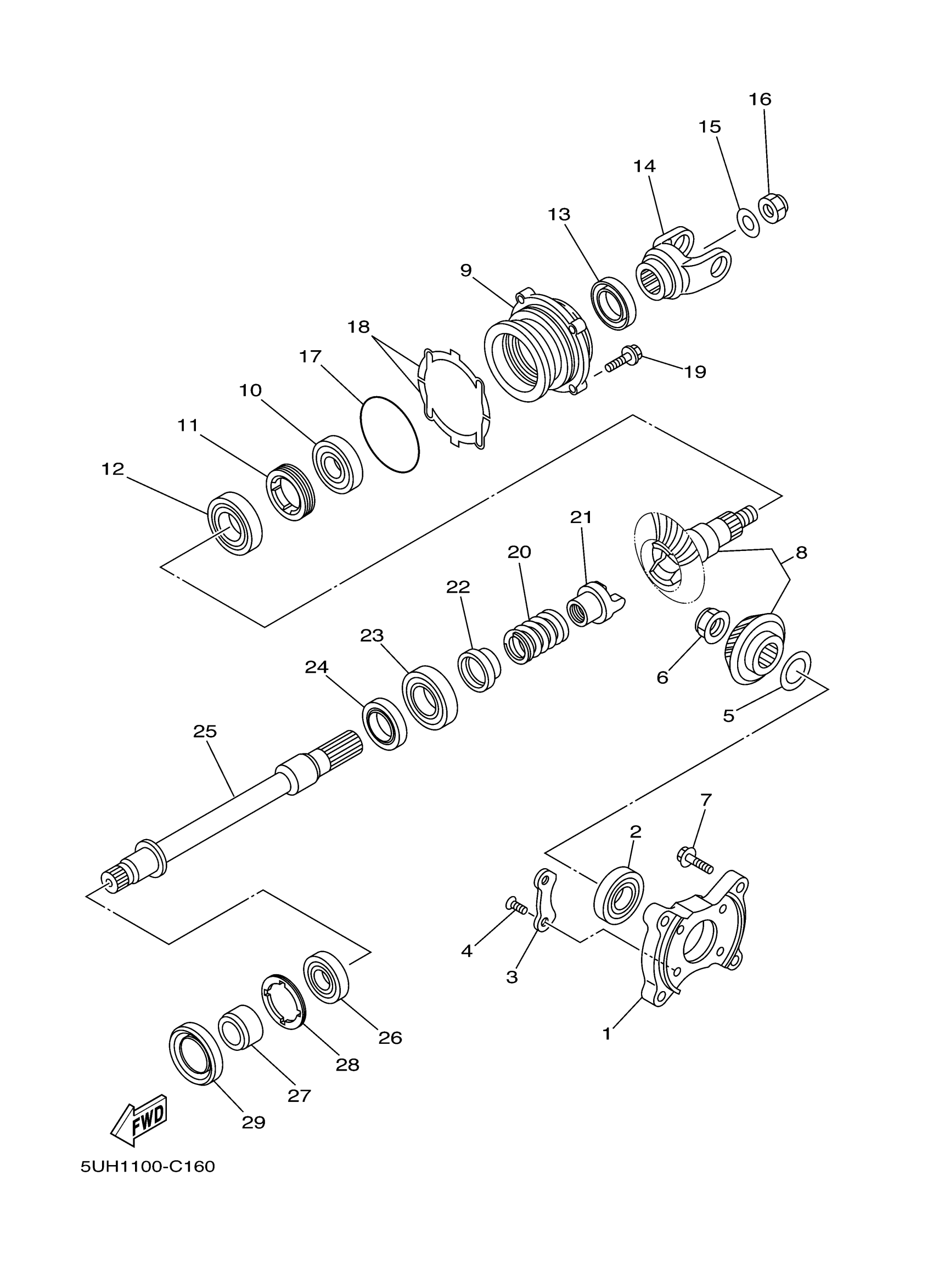

Yamaha YFM35FGAL (GRIZZLY 350 4WD) 1AB70 2011 MIDDLE DRIVE GEAR Diagram
#
5
SHIM, PINION (0.3T)
5KM-17531-30-00
Unavailable
5
SHIM, PINION (0.4T)
5KM-17531-40-00
Unavailable
8
PINION SET
5UH-17530-10-00
Unavailable
9
HOUSING, BEARING
5GH-17551-00-00
Unavailable
10
BEARING(3RR)
93306-30560-00
Unavailable
11
NUT(59V)
90179-65305-00
Unavailable
12
BEARING (8U9)
93306-20712-00
Unavailable
13
OIL SEAL (4H7)
93101-35097-00
Unavailable
14
YOKE, JOINT
5UH-17556-10-00
Unavailable
15
WASHER, PLATE(3JP)
90201-166R6-00
Unavailable
16
Nut
90179-16006-00
Unavailable
17
O-RING (14X)
93210-78544-00
Unavailable
18
SHIM, PINION (0.1T)
5GH-17531-00-00
Unavailable
18
SHIM, PINION (0.15T)
5GH-17531-10-00
Unavailable
18
SHIM, PINION (0.2T)
5GH-17531-20-00
Unavailable
18
SHIM, PINION (0.3T)
5GH-17531-30-00
Unavailable
18
SHIM, PINION (0.4T)
5GH-17531-40-00
Unavailable
18
SHIM, PINION (0.5T)
5GH-17531-50-00
Unavailable
18
SHIM, PINION (0.6T)
5GH-17531-60-00
Unavailable
19
BOLT, WITH WASHER
97527-08530-00
Unavailable
20
SPRING, COMPRESSION
90501-650L5-00
Unavailable
21
CAM, DRIVEN
4VR-17527-00-00
Unavailable
22
COLLAR, GEAR
5UH-17585-00-00
Unavailable
23
BEARING(2HR)
93306-00612-00
Unavailable
24
OIL SEAL(76K)
93102-30339-00
Unavailable
25
SHAFT, 1
5UH-1761A-00-00
Unavailable
26
BEARING(83R)
93306-20582-00
Unavailable
27
COLLAR(1WG)
90387-252R2-00
Unavailable
28
NUT(4KB)
90179-55660-00
Unavailable
29
OIL SEAL(2HR)
93102-35380-00
Unavailable
