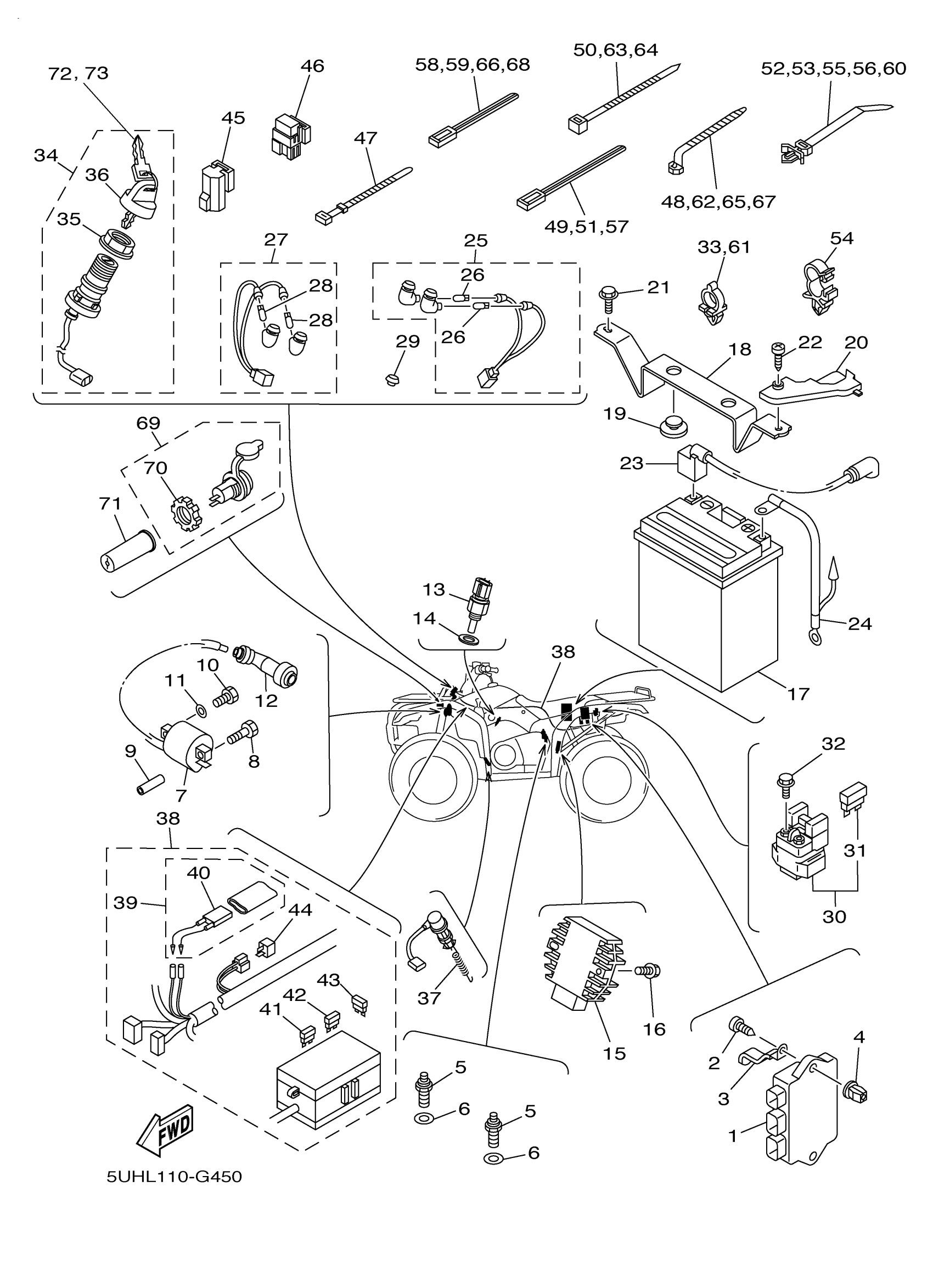

Yamaha YFM35FGAL (GRIZZLY 350 4WD) 1AB70 2011 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5UH-85540-00-00

$557.99

2

SCREW, TAPPING

97702-60420-00

$0.64

3

CLAMP

90462-06016-00

$5.60

4

PLUG(4BP)

90338-08226-00

$2.17

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

IGNITION COIL ASSY

5KM-82310-03-00

$46.99

8

BOLT

90109-06865-00

Unavailable

9

SPACER

5UH-H1318-00-00

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

PLUG CAP ASSY

3NS-82370-00-00

$37.99

13

THERMO UNIT

4GB-83591-10-00

$180.99

14

WASHER, PLATE 3412175700

90201-12172-00

$3.93

15

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$261.99

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

YTX14AHBS YUASA BATTERY - SA

YTX-14AHB-S0-00

Unavailable

18

BRACKET, BATTERY

5TE-H2128-01-00

Unavailable

19

PAD, BATTERY

371-82121-00-00

Unavailable

20

COVER, LEAD WIRE

5ND-H2119-00-00

Unavailable

21

BOLT, FLANGE

95817-06020-00

Unavailable

22

SCREW, TAPPING

97702-60016-00

Unavailable

23

WIRE, PLUS LEAD

5TE-H2115-00-00

Unavailable

24

WIRE, MINUS LEAD

5UH-H2116-00-00

Unavailable

25

PILOT LIGHT ASSY

5TE-83530-00-00

Unavailable

26

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

27

PILOT LIGHT ASSY

5UH-83530-00-00

Unavailable

28

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

29

PLUG

90338-14827-00

Unavailable

30

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

Unavailable

31

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

32

BOLT, FLANGE

95022-06008-00

Unavailable

33

CLAMP

90464-12830-00

Unavailable

34

MAIN SWITCH ASSY

5KM-82510-02-00

Unavailable

34

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

35

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

36

CAP, KEY

3HN-82579-00-00

Unavailable

37

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

38

WIRE HARNESS ASSY

5UH-82590-30-00

Unavailable

38

WIRE HARNESS ASSY

5UH-82590-60-00

Unavailable

39

CIRCUIT BREAKER ASSY

3D5-82180-00-00

Unavailable

40

THERMO SWITCH ASSY

3D5-82560-00-00

Unavailable

41

FUSE (15A)

67F-82151-50-00

Unavailable

42

. FUSE (10A)

67F-82151-40-00

Unavailable

43

. FUSE (3A)

67F-82151-30-00

Unavailable

44

DIODE ASSY

3WP-81980-00-00

Unavailable

45

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

46

RELAY ASSY

5DM-81950-01-00

Unavailable

47

CLAMP

90464-51800-00

Unavailable

48

CLAMP

90464-12830-00

Unavailable

49

CLAMP(JN6)

90464-40825-00

Unavailable

50

CLAMP(JN6)

90464-31827-00

Unavailable

51

CLAMP(JN6)

90464-40825-00

Unavailable

52

CLAMP

90464-25800-00

Unavailable

53

CLAMP

90464-25800-00

Unavailable

54

CLAMP

90464-16006-00

Unavailable

55

CLAMP

90464-25800-00

Unavailable

56

CLAMP

90464-25800-00

Unavailable

57

CLAMP(JN6)

90464-40825-00

Unavailable

58

CLAMP

90464-48800-00

Unavailable

59

CLAMP

90464-48800-00

Unavailable

60

CLAMP

90464-25800-00

Unavailable

61

CLAMP

90464-12830-00

Unavailable

62

CLAMP

90464-12830-00

Unavailable

63

CLAMP(JN6)

90464-31827-00

Unavailable

64

CLAMP(JN6)

90464-31827-00

Unavailable

65

CLAMP

90464-12830-00

Unavailable

66

CLAMP

90464-48800-00

Unavailable

67

CLAMP

90464-12830-00

Unavailable

68

CLAMP

90464-48800-00

Unavailable

69

TERMINAL ASSY

5FU-H1920-10-00

Unavailable

70

NUT

5FU-H191B-10-00

Unavailable

71

COVER,CONNECTER

5FU-H2599-01-00

Unavailable

72

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

73

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
