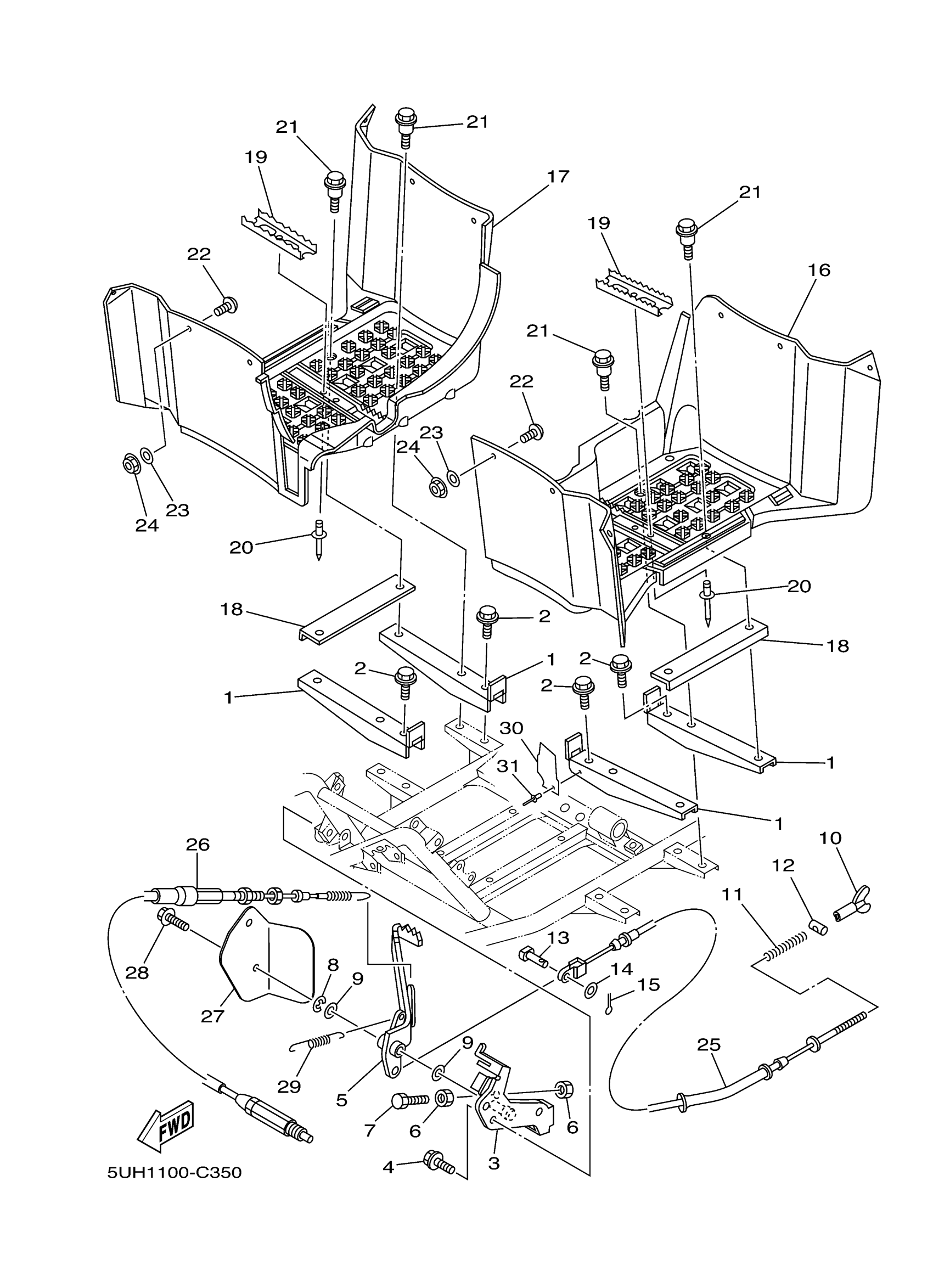

Yamaha YFM35FAV (BRUIN 350 4WD) 5UHB 2006 STAND FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

5ND-F7471-01-00

$11.20

2

BOLT, FLANGE

95817-08012-00

$3.71

3

BRACKET, FOOTREST

5TE-F7412-11-00

Unavailable

4

BOLT, FLANGE

95817-08012-00

$3.71

5

PEDAL, BRAKE

5TE-F7211-00-00

$15.86

6

NUT(JN5)

95317-06700-00

$6.23

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

CIRCLIP (137)

93430-10015-00

$6.98

9

WASHER, PLATE(52G)

90201-144J2-00

$6.03

10

NUT, AJUSTING

20E-26343-00-00

$20.80

11

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

12

PIN 1562723700

90249-12008-00

$5.75

13

PIN, CLEVIS(2YK)

90240-08124-00

$5.30

14

WASHER, PLATE 1562722600

90201-08083-00

$5.86

15

PIN, COTTER

91490-20025-00

$1.23

16

COVER 1 (FOOTREST CVR LH SIDE)

5ND-F7453-01-00

Unavailable

17

COVER 2 (FOOTREST CVR RH SIDE)

5ND-F7463-01-00

Unavailable

18

PLATE 1

5ND-F7445-00-00

Unavailable

19

ARM 1

5UH-F741A-10-00

Unavailable

20

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

21

BOLT

90109-06072-00

Unavailable

22

SCREW(3YF)

90149-05299-00

Unavailable

23

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

24

NUT, NYLON

95707-05300-00

Unavailable

25

CABLE, BRAKE

5TE-26361-00-00

Unavailable

26

CABLE, CONTROL 2

5GH-2637F-11-00

Unavailable

27

PROTECTOR

5UH-F7491-01-00

Unavailable

28

BOLT, WITH WASHER

97527-06512-00

Unavailable

29

SPRING, TENSION(2NL)

90506-12403-00

Unavailable

30

PLATE 1

5UH-F7445-02-00

Unavailable

31

RIVET (EU0)

90267-48938-00

$5.00
