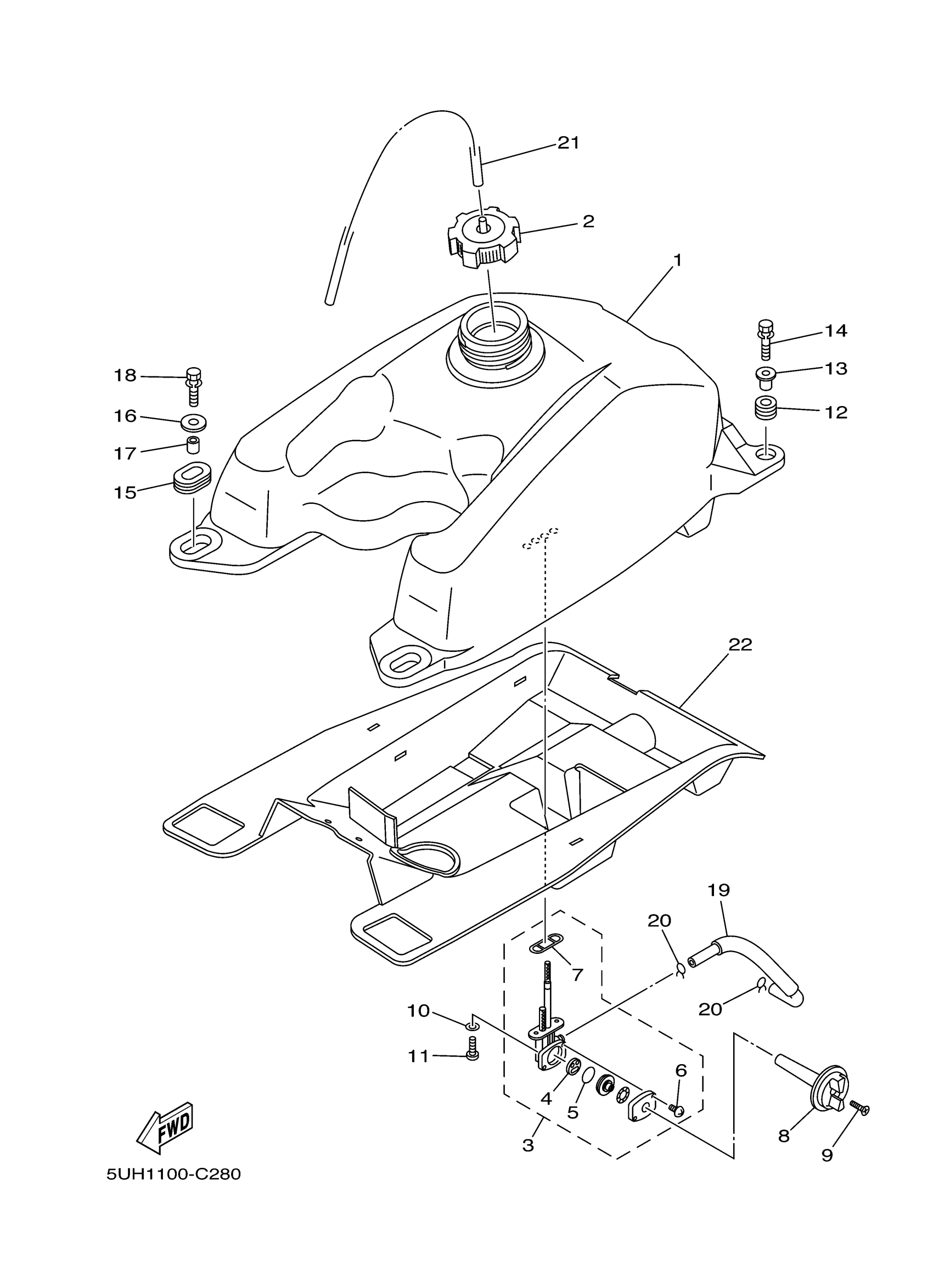

Yamaha YFM35FAV (BRUIN 350 4WD) 5UHB 2006 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5UH-F4110-01-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$49.64

3

FUEL COCK ASSY 1

5KM-24500-10-00

$50.01

4

VALVE PACKING

3AC-24523-00-00

$10.82

5

SEAL, COCK

3AJ-24534-01-00

$8.69

6

SCREW, PAN HEAD

98507-03014-00

Unavailable

7

O-RING

4X8-24512-00-00

$6.25

8

LEVER,COCK

1NS-F4524-00-00

$5.87

9

SCREW, FLAT HEAD(3HH)

98707-04018-00

$1.92

10

WASHER, PLATE(3MB)

90202-05187-00

$1.01

11

SCREW 256241430000

90149-06011-00

$1.56

12

GROMMET (4V1)

90480-18290-00

$6.54

13

COLLAR (36R)

90387-066J1-00

$6.39

14

BOLT, WITH WASHER

90119-06883-00

$1.18

15

GROMMET(38W)

90480-01400-00

$9.40

16

WASHER, PLATE

90201-06090-00

Unavailable

17

COLLAR (1T2)

90387-07598-00

Unavailable

18

BOLT, WITH WASHER

90119-06883-00

$1.18

19

PIPE, FUEL 1

5UH-F4311-00-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

HOSE

90445-088C5-00

Unavailable

22

DAMPER, PLATE 1

5UH-F414H-01-00

Unavailable
