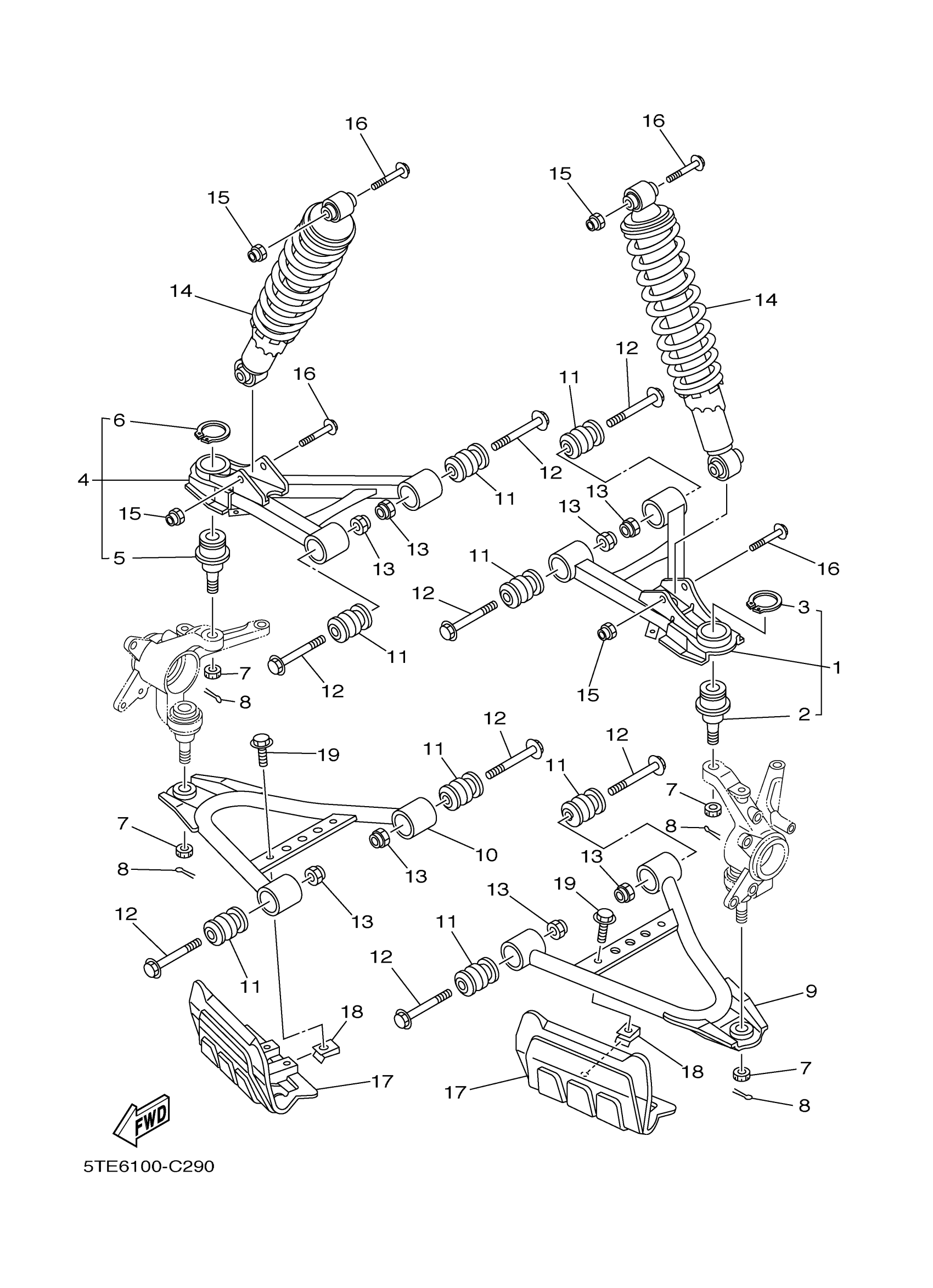

Yamaha YFM35FAV (BRUIN 350 4WD) 5UHB 2006 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRT. UPPER ARM (L)

5ND-F3540-13-00

$169.65

2

BALL JOINT 1

37S-23549-01-00

$64.63

3

CIRCLIP

93410-32075-00

$6.51

4

FRT. UPPER ARM (R)

5ND-F3550-13-00

$114.75

5

BALL JOINT 1

37S-23549-01-00

$64.63

6

CIRCLIP

93410-32075-00

$6.51

7

NUT, CASTLE

90171-12001-00

$2.66

8

PIN, COTTER

91490-25020-00

$2.73

9

ARM, FR. LWR. LH.

5ND-F357A-01-00

$79.03

10

ARM, FR. LWR. RH.

5ND-F358A-01-00

$79.03

11

BUSH

2HR-23526-00-00

$17.03

12

BOLT, FLANGE

90105-10267-00

$7.23

13

NUT, SELF-LOCKING

90185-10012-00

$2.78

14

SHOCK ABSORBER ASS

5UH-F3350-01-00

$188.47

15

NUT, SELF-LOCKING

90185-10012-00

$2.78

16

BOLT, FLANGE

90105-10841-00

Unavailable

17

COVER, LOWER 1

5ND-F3123-00-00

$17.03

18

NUT, SPRING(4ES)

90183-06069-00

$5.69

19

BOLT, FLANGE

95817-06012-00

Unavailable
