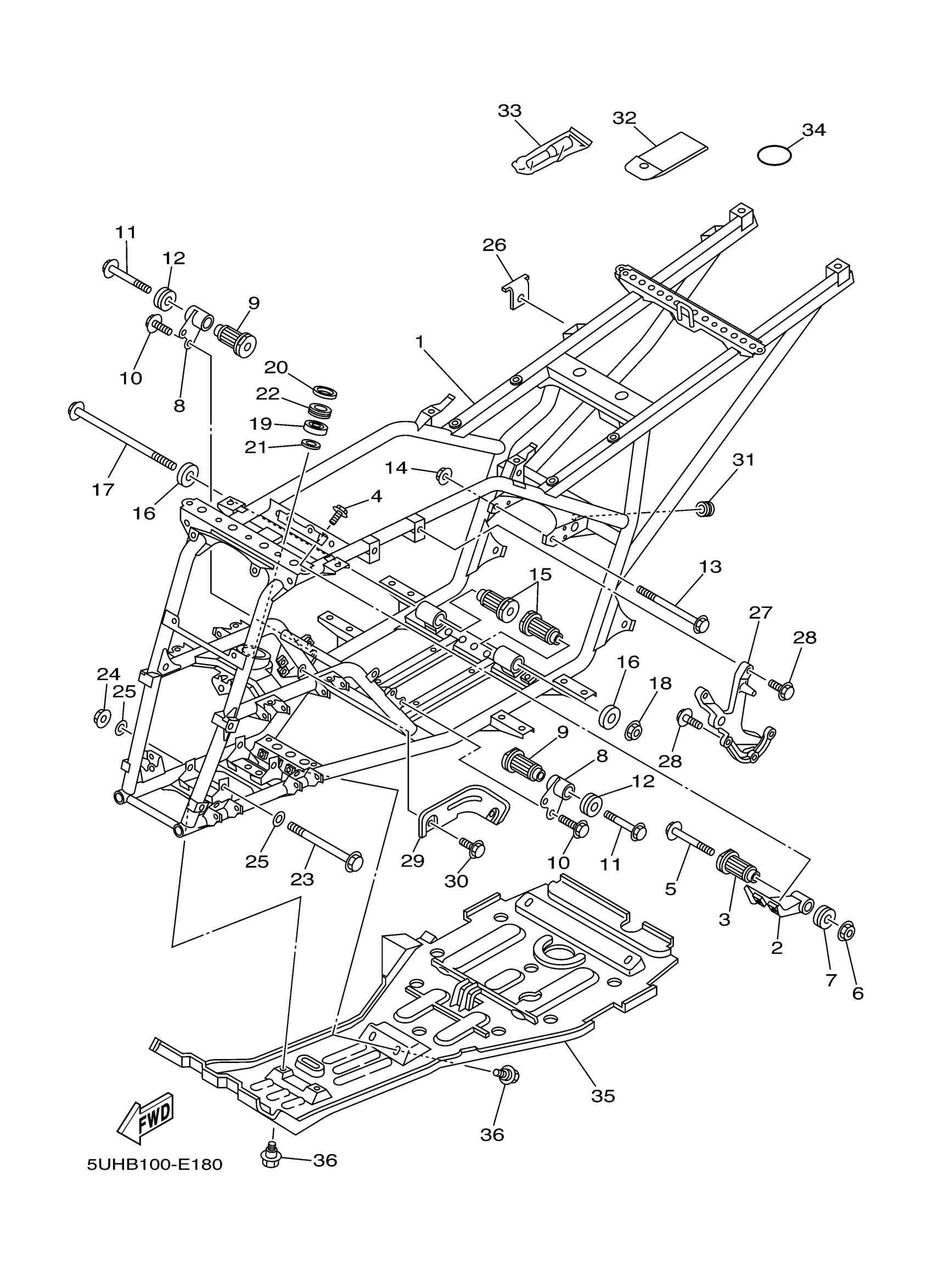

Yamaha YFM35FAV (BRUIN 350 4WD) 5UHB 2006 FRAME Diagram
#
Description
Price
1
FRAME COMP
5UH-F1110-02-00
Unavailable
2
STAY, ENGINE 2
5UH-F1315-01-00
Unavailable
3
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
8
STAY, ENGINE 3
5UH-F1316-01-00
Unavailable
9
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
15
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
16
DAMPER
5ND-F1488-00-00
Unavailable
17
BOLT, WASHER BASED
90105-10055-00
Unavailable
19
BEARING
93306-203YN-00
Unavailable
20
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
21
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
22
HOLDER, BEARING
2GU-23872-00-00
Unavailable
23
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
25
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
26
STAY, MUFFLER 2
5ND-F1446-01-00
Unavailable
27
ARM
5ND-F1585-01-00
Unavailable
28
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
29
PROTECTOR 1
5UH-F2825-00-00
Unavailable
30
BOLT, FLANGE
95817-06010-00
Unavailable
31
GROMMET(3GM)
90480-10517-00
Unavailable
32
TOOL KIT
5ND-F8100-00-00
Unavailable
33
GAUGE, AIR
1NV-2811A-01-00
Unavailable
34
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
35
GUARD, ENGINE 1
5ND-F147A-03-00
Unavailable
36
BOLT(3KJ)
90109-063F1-00
Unavailable
