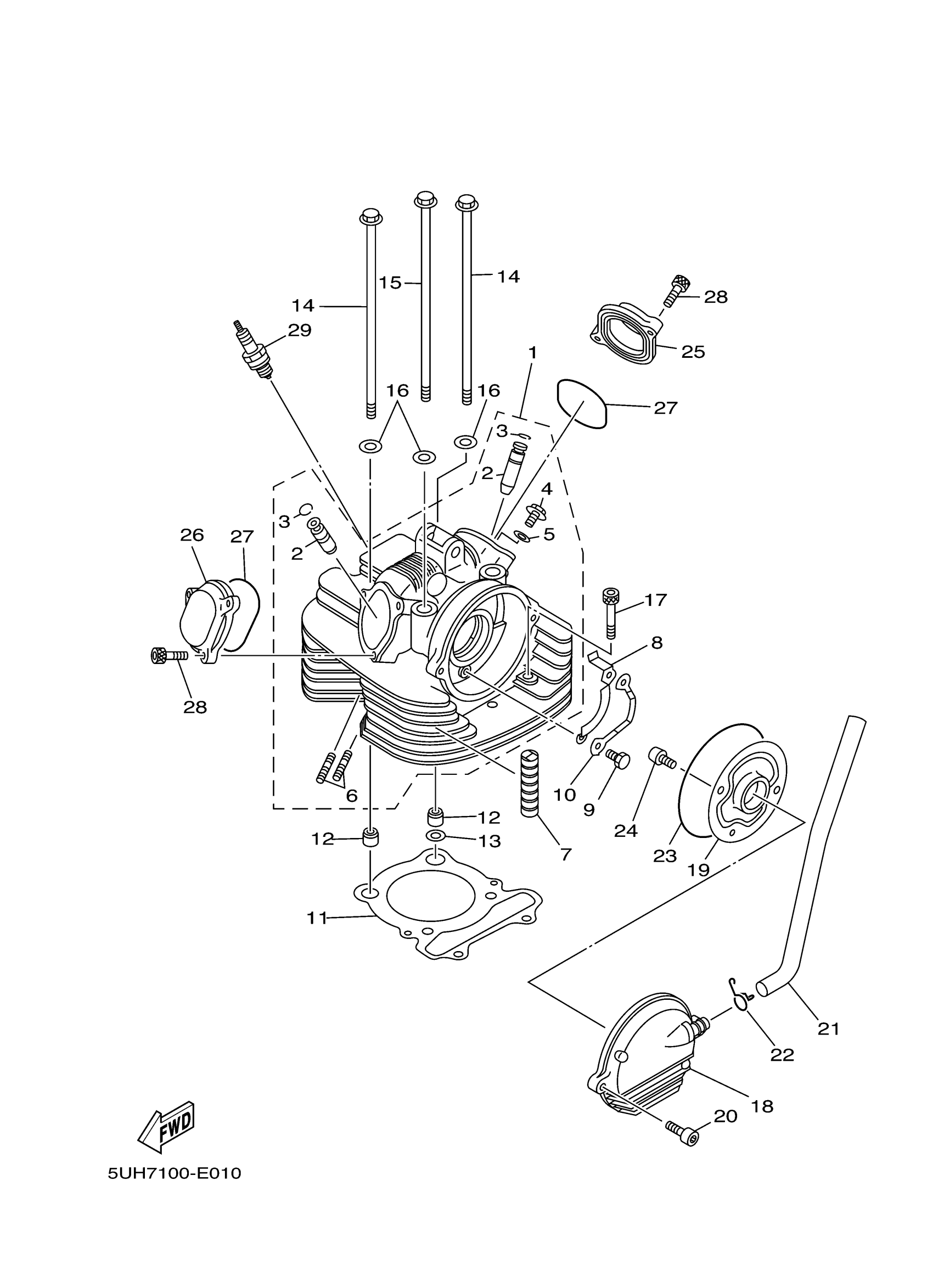

Yamaha YFM35FAV (BRUIN 350 4WD) 5UHB 2006 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5UH-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$58.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

5

GASKET (4V2)

90430-06166-00

$3.76

6

BOLT, STUD(2NL)

90116-06503-00

$8.49

7

ABSORBER

583-11127-00-00

$7.99

8

PLATE

3Y1-1111F-00-00

Unavailable

9

BOLT, HEXAGON

97017-06012-00

$3.76

10

WASHER, LOCK (3Y1)

90215-06162-00

$10.49

11

GASKET, CYLINDER HEAD 1

1UY-11181-01-00

$46.99

12

PIN, DOWEL

99530-14016-00

$3.80

13

GASKET

90430-14240-00

$9.49

14

BOLT, FLANGE

90105-10137-00

$11.49

15

BOLT, FLANGE

90105-10136-00

$11.49

16

WASHER PLATE 341839090000

90201-10128-00

Unavailable

17

BOLT, SOCKET

91317-08050-00

Unavailable

18

BREATHER ASSY

4WU-11160-01-00

Unavailable

19

PLATE, BREATHER

4KB-11165-00-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

21

PIPE, BREATHER 1

3C2-E1166-00-00

Unavailable

22

CLIP (371)

90467-14015-00

Unavailable

23

O-RING (15A)

93211-06635-00

Unavailable

24

BOLT,SOCKET

91317-06025-00

Unavailable

25

COVER, CYLINDER HEAD SIDE 2

2NL-11186-12-00

Unavailable

26

COVER, CYLINDER HEAD SIDE 3

2NL-11187-11-00

Unavailable

27

O-RING

93210-57634-00

Unavailable

28

BOLT,SOCKET

91317-06020-00

Unavailable

29

DR8EA NGK SPLUG 10PK

DR8-EA000-00-00

Unavailable
