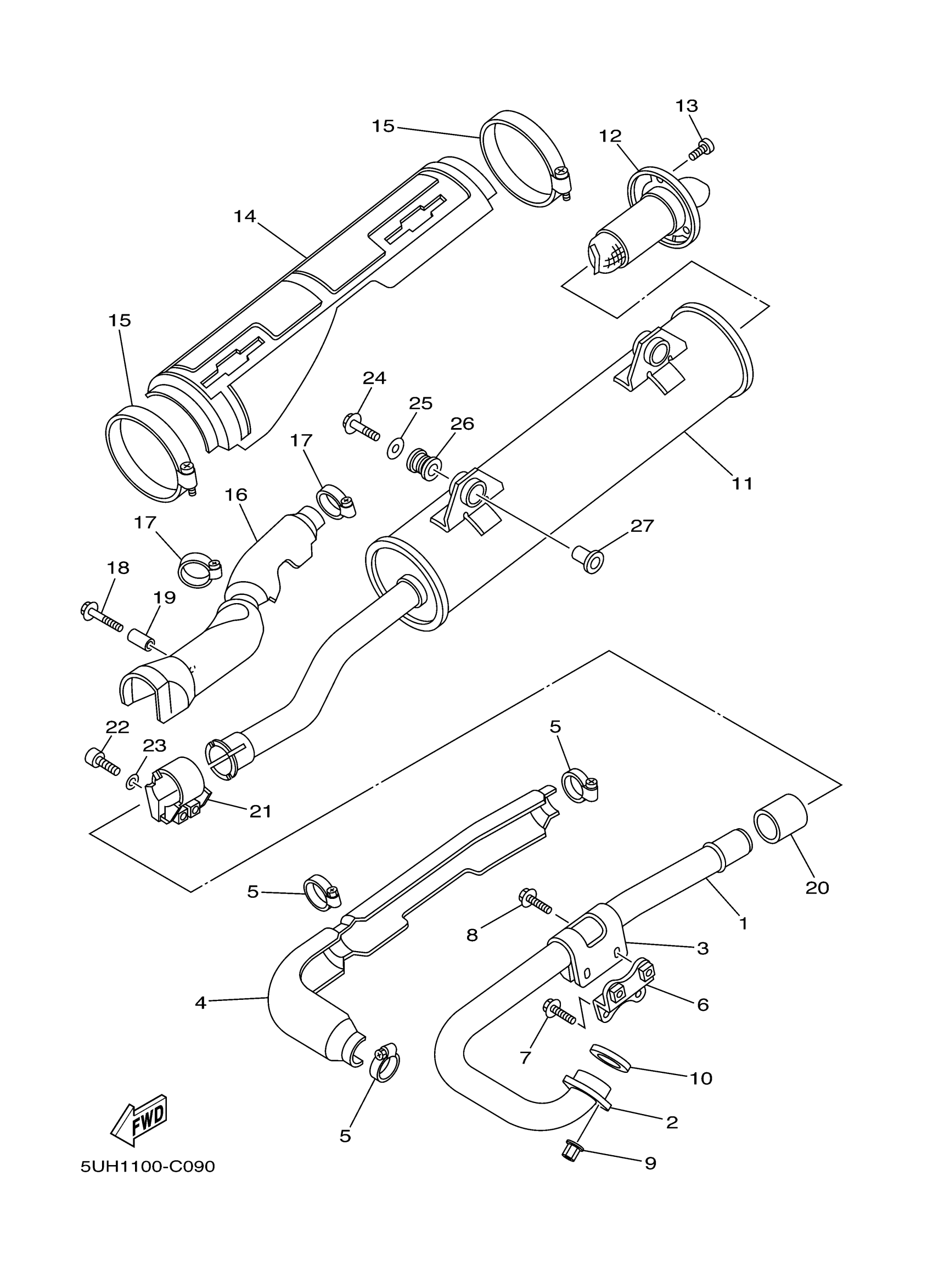

Yamaha YFM35FAT (BRUIN 350 4X4) 5UH6 2005 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5UH-E4611-00-00

Unavailable

2

NUT, RING

5UH-E4612-00-00

Unavailable

3

BAND 1

5UH-E477R-00-00

Unavailable

4

PROTECTOR, EXHAUST PIPE

5UH-E4628-01-00

Unavailable

5

BAND 2

5UH-E477T-00-00

Unavailable

6

PLATE 1

5UH-E477K-01-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

BOLT, FLANGE

95817-06020-00

$3.81

9

NUT(2UJ)

90179-06668-00

$8.49

10

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

11

MUFFLER 1

5UH-E4711-00-00

$410.99

12

PIPE, OUTLET

5ND-E4752-00-00

$119.99

13

BOLT,SOCKET

91380-06010-00

$8.49

14

PROTECTOR, MUFFLER 1

5UH-E4718-00-00

Unavailable

15

BAND, SILENCER

5ND-E4788-00-00

Unavailable

16

PROTECTOR, MUFFLER 2

5UH-E4728-01-00

Unavailable

17

BAND 2

5UH-E477T-00-00

Unavailable

18

BOLT, FLANGE

9580P-06035-00

Unavailable

19

COLLAR

5UH-E4638-00-00

Unavailable

20

GASKET, MUFFLER

3YF-14714-00-00

Unavailable

21

BAND, MUFFLER

5ND-E4715-00-00

Unavailable

22

BOLT

5ND-E4777-00-00

Unavailable

23

WASHER

5ND-E4759-00-00

Unavailable

24

BOLT, FLANGE

95817-10040-00

Unavailable

25

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

26

DAMPER, MUFFLER

5ND-E4737-00-00

Unavailable

27

COLLAR (2H7)

90387-10636-00

Unavailable
