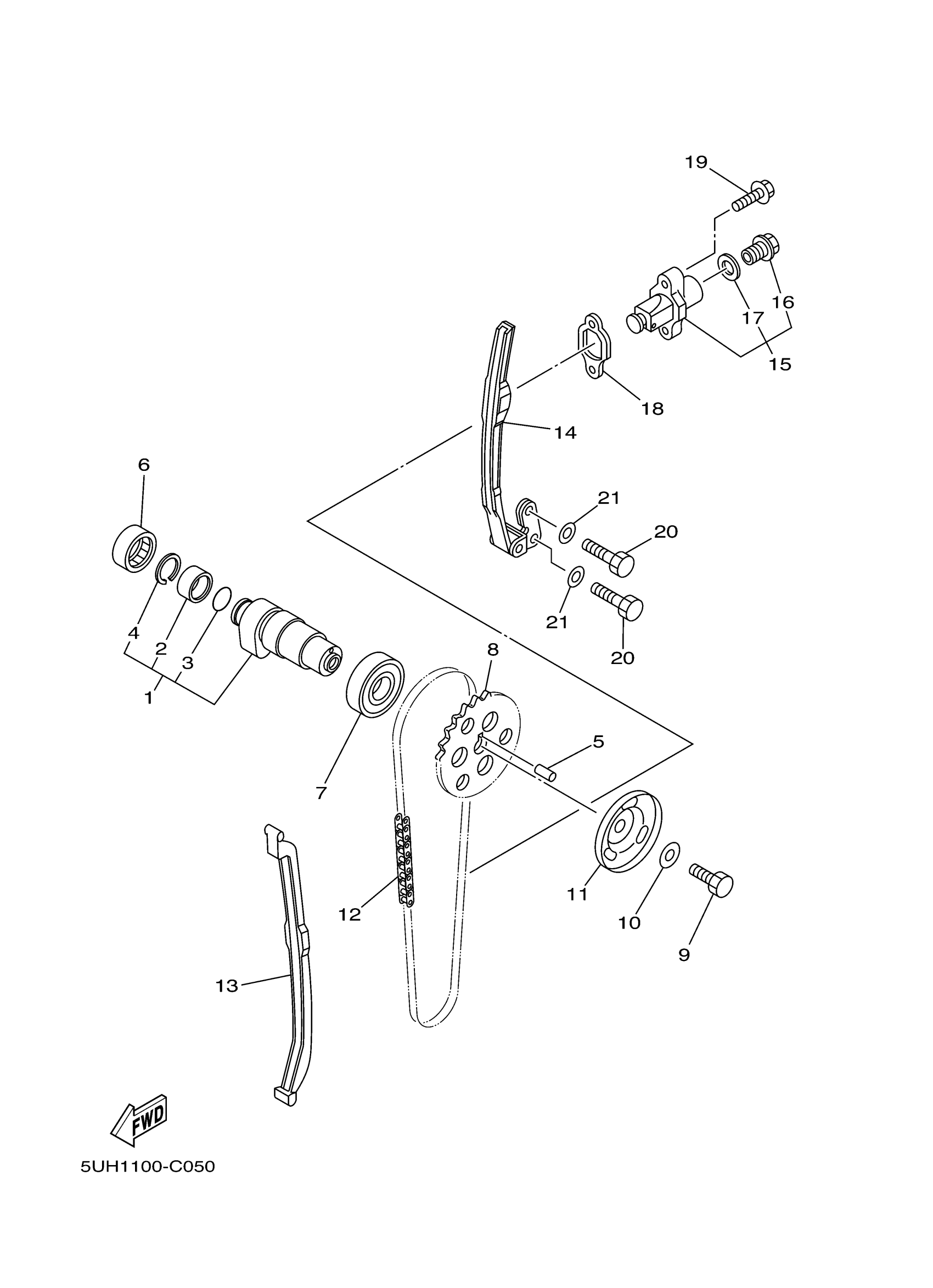

Yamaha YFM35FAS (BRUIN 350 AUTO 4X4_HARDWOOD) 5UH1 2004 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

5UH-12170-00-00

$218.99

. COLLAR

90387-20013-00

Unavailable

. O-RING

93210-17003-00

Unavailable

CIRCLIP (525)

93410-20038-00

$3.76

PIN,DOWEL (603)

93604-10011-00

$8.49

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$34.99

BEARING(1FF)

93306-00519-00

$36.99

SPROCKET, CAM CHAIN

5UH-12176-00-00

Unavailable

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

PLATE, BREATHER 2

4KB-11145-00-00

$11.99

CHAIN

94591-87110-00

$21.99

GUIDE STOPPER 1

5UH-12231-01-00

Unavailable

GUIDE, STOPPER 2

5UH-12241-01-00

$163.99

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

PLUG

31G-12222-00-00

Unavailable

GASKET, TENSIONER

31G-12214-00-00

Unavailable

GASKET, TENSIONER CASE

3GD-12213-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

BOLT, HEXAGON

97017-06016-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable
