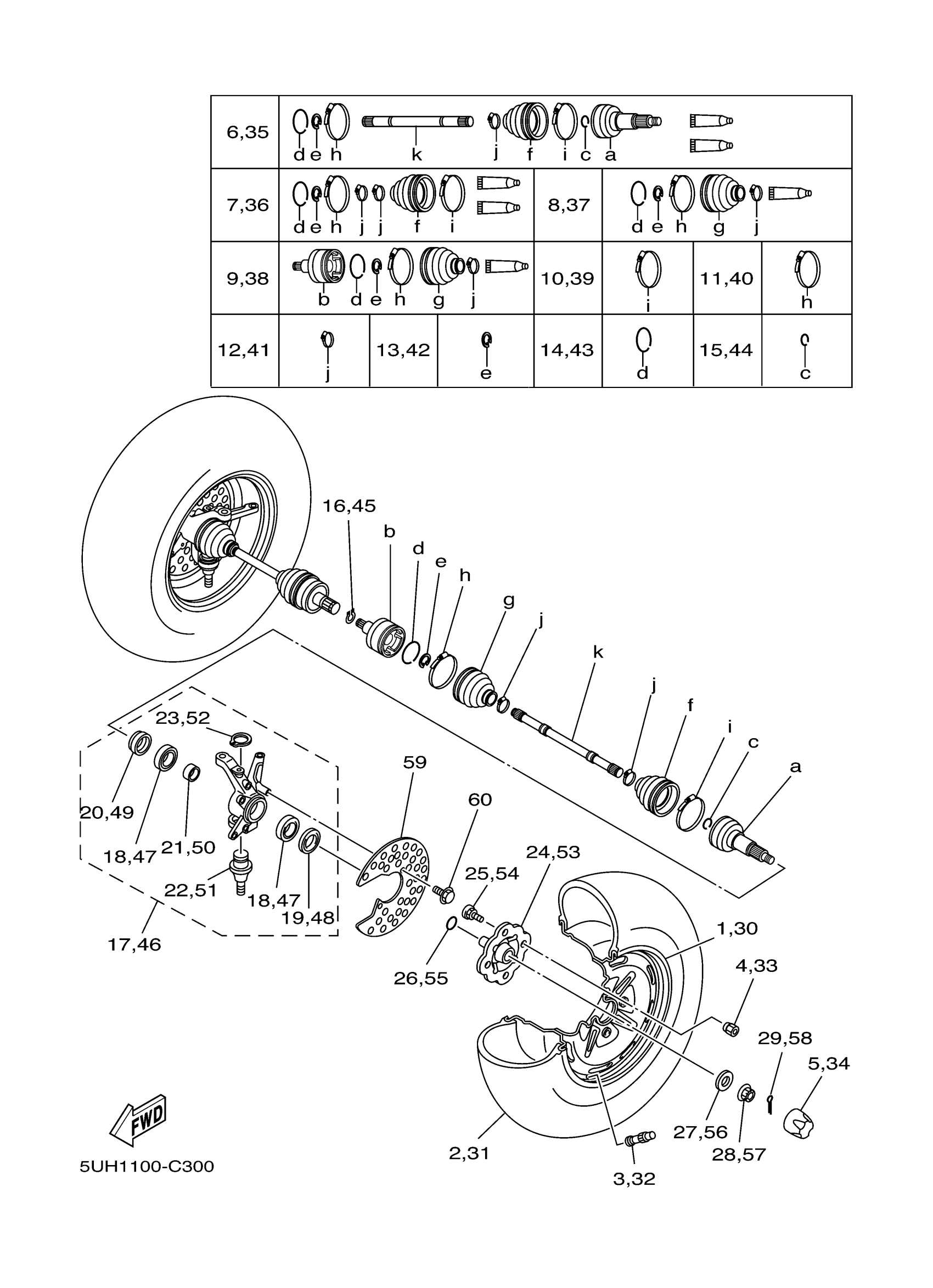

Yamaha YFM35FAHV (BRUIN 350 4WD HUNTER) 5UHF 2006 FRONT WHEEL Diagram

#

Description
Price

1

RIM FRONT (BLACK 12 X 6.0)

5ND-F5180-11-00

Unavailable

2

AT25X8-12 M911Y

94108-12813-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT(2HR)

90179-10540-00

$5.60

5

CAP, WHEEL

5GT-2512A-00-00

$9.99

6

BALL JOINT SET

5UH-2510F-00-00

$419.99

7

BOOT SET (BALL JOINT)

5UH-2510G-00-00

$65.99

8

BOOT SET (DOUBLE OFFSET JOINT)

5UH-2510H-00-00

$83.99

9

DOUBLE OFF SET JOINT

5UH-2510J-00-00

Unavailable

10

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

11

BOOT BAND (DOUBLE OFFSET JOINT

3HN-2511H-01-00

$20.99

12

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

13

SNAP RING

2HR-2512J-00-00

$6.99

14

CIRCLIP

4KB-2512H-00-00

$6.99

15

CIRCLIP

2HR-2512H-00-00

Unavailable

16

CIRCLIP(2HR)

93450-22119-00

Unavailable

17

STEERING KNUCKLE A

5ND-F3501-11-00

Unavailable

18

BEARING

93306-006Y2-00

Unavailable

19

OIL SEAL

93106-38046-00

Unavailable

20

OIL SEAL

93106-38047-00

Unavailable

21

SPACER(2HR)

90560-30325-00

Unavailable

22

BALL JOINT 1

37S-23549-01-00

Unavailable

23

CIRCLIP

93410-32075-00

Unavailable

24

HUB,FRONT

5ND-F5111-30-00

Unavailable

25

BOLT, SERRATION

90114-10014-00

Unavailable

26

O-RING(47X)

93210-27666-00

Unavailable

27

WASHER, PLATE

90201-16804-00

Unavailable

28

NUT, CASTLE

90171-16001-00

Unavailable

29

PIN, COTTER

91490-30030-00

Unavailable

30

RIM FRONT (BLACK 12 X 6.0)

5ND-F5180-11-00

Unavailable

31

AT25X8-12 M911Y

94108-12813-00

Unavailable

32

VALVE, RIM

93900-00812-00

Unavailable

33

NUT(2HR)

90179-10540-00

$5.60

34

CAP, WHEEL

5GT-2512A-00-00

$9.99

35

BALL JOINT SET

5UH-2510F-00-00

$419.99

36

BOOT SET (BALL JOINT)

5UH-2510G-00-00

$65.99

37

BOOT SET (DOUBLE OFFSET JOINT)

5UH-2510H-00-00

$83.99

38

DOUBLE OFF SET JOINT

5UH-2510J-00-00

Unavailable

39

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

40

BOOT BAND (DOUBLE OFFSET JOINT

3HN-2511H-01-00

$20.99

41

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

42

SNAP RING

2HR-2512J-00-00

$6.99

43

CIRCLIP

4KB-2512H-00-00

$6.99

44

CIRCLIP

2HR-2512H-00-00

Unavailable

45

CIRCLIP(2HR)

93450-22119-00

Unavailable

46

STEERING KNUCKLE A

5ND-F3502-11-00

Unavailable

47

BEARING

93306-006Y2-00

Unavailable

48

OIL SEAL

93106-38046-00

Unavailable

49

OIL SEAL

93106-38047-00

Unavailable

50

SPACER(2HR)

90560-30325-00

Unavailable

51

BALL JOINT 1

37S-23549-01-00

Unavailable

52

CIRCLIP

93410-32075-00

Unavailable

53

HUB,FRONT

5ND-F5111-30-00

Unavailable

54

BOLT, SERRATION

90114-10014-00

Unavailable

55

O-RING(47X)

93210-27666-00

Unavailable

56

WASHER, PLATE

90201-16804-00

Unavailable

57

NUT, CASTLE

90171-16001-00

Unavailable

58

PIN, COTTER

91490-30030-00

Unavailable

59

RING, WHEEL 1 (LEF

5ND-F514A-00-00

Unavailable

60

BOLT, FLANGE

95817-06012-00

Unavailable
