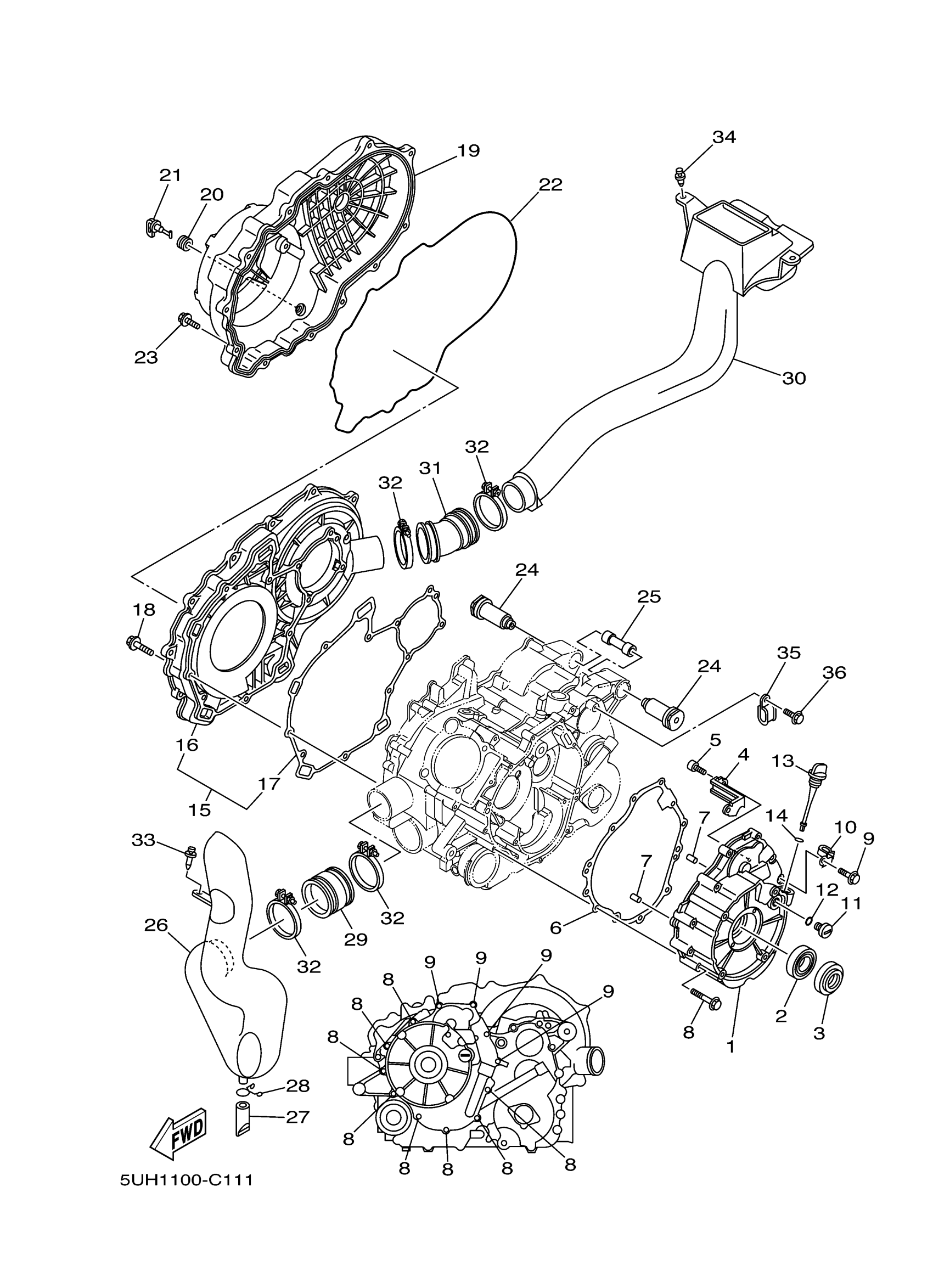

Yamaha YFM35FAHV (BRUIN 350 4WD HUNTER) 5UHF 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5UH-15411-00-00

Unavailable

2

BEARING(55X)

93306-07801-00

$46.93

3

OIL SEAL

93102-28476-00

$18.82

4

PLATE

5UH-15113-00-00

$3.92

5

BOLT, SOCKET

91317-05012-00

$1.62

6

GASKET, CRANKCASE COVER 1

5UH-15451-00-00

$16.38

7

PIN, DOWEL(2VG)

99530-10116-00

$3.14

8

BOLT, SMALL FLANGE

95027-06050-00

$1.68

9

BOLT, SMALL FLANGE

95027-06030-00

$3.40

10

CLAMP(4MX)

90465-06376-00

$6.59

11

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

12

O-RING (2H9)

93210-14369-00

$5.42

13

PLUG, OIL LEVEL

517-15362-10-00

$13.59

14

O-RING (603)

93210-19026-00

$6.22

15

CRANKCASE COVER ASSY 2

5UH-15420-00-00

$113.20

16

COVER, CRANKCASE 2

5UH-15421-01-00

Unavailable

17

SEAL, CRANKCASE

5UH-15315-00-00

Unavailable

18

BOLT, FLANGE

95817-06030-00

Unavailable

19

COVER, CRANKCASE 3

5UH-15431-01-00

Unavailable

20

GROMMET (462)

90480-13018-00

Unavailable

21

PLUG, DRAIN

5KM-15351-00-00

Unavailable

22

SEAL, CRANKCASE

5UH-15379-00-00

Unavailable

23

BOLT, FLANGE

95817-06020-00

Unavailable

24

DAMPER

90388-10001-00

Unavailable

25

SPACER, ENGINE MOUNT

5UH-15317-00-00

Unavailable

26

DUCT, AIR

5UH-E5471-00-00

Unavailable

27

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

28

CLIP(62Y)

90467-15M14-00

$3.21

29

SEAL, AIR DUCT

5ND-E5472-01-00

Unavailable

30

DUCT, AIR

5ND-E5473-00-00

Unavailable

31

SEAL, AIR DUCT

5UH-E5474-00-00

Unavailable

32

HOSE CLAMP ASSY

90450-64004-00

Unavailable

33

RIVET

90269-06800-00

Unavailable

34

RIVET

90269-08813-00

$0.50

35

CLAMP(8BN)

90461-08134-00

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
