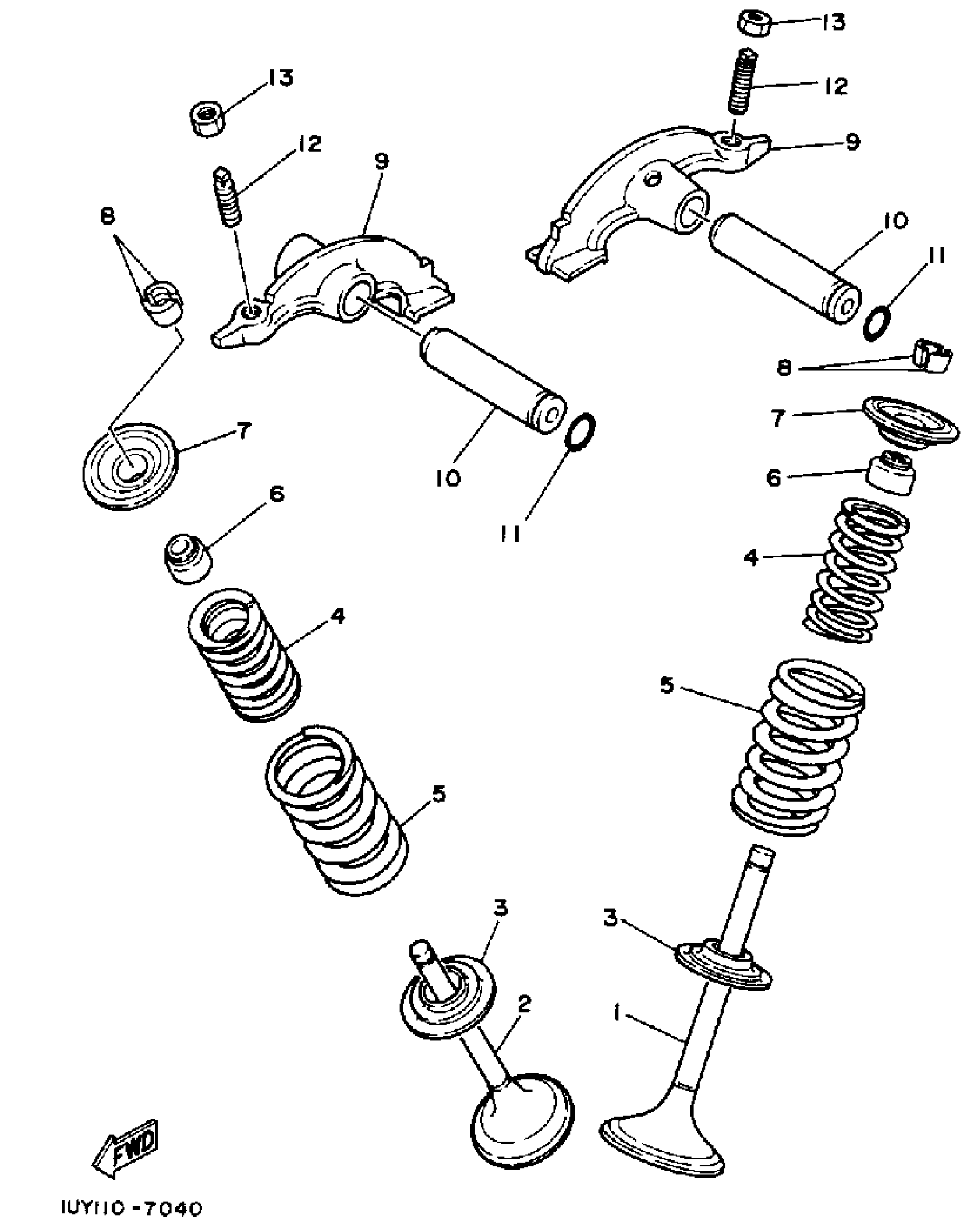

Yamaha YFM350XW (WARRIOR) 3GD 1989 VALVE Diagram

VALVE, INTAKE

1UY-12111-01-00

$65.20

VALVE, EXHAUST

1UY-12121-01-00

$76.31

SEAT, VALVE SPRING

3Y1-12116-00-00

$13.33

SPRING, VALVE INNER

1UY-12113-01-00

$14.81

SPRING, VALVE OUTER

1UY-12114-01-00

$20.00

SEAL, VALVE STEM OIL

1J7-12119-01-00

$17.03

RETAINER, VALVE SPRING

3Y1-12117-01-00

$14.07

LOCK, VALVE SPRING

1J7-12118-00-00

$5.99

ARM, VALVE ROCKER

1UY-12151-00-00

Unavailable

SHAFT, ROCKER

3Y1-12156-00-00

$59.41

O-RING (1J7)

93210-09350-00

$5.42

SCREW, VALVE ADJUSTING

31G-12159-02-00

$7.96

NUT, LOCK

31G-12158-00-00

$5.37
