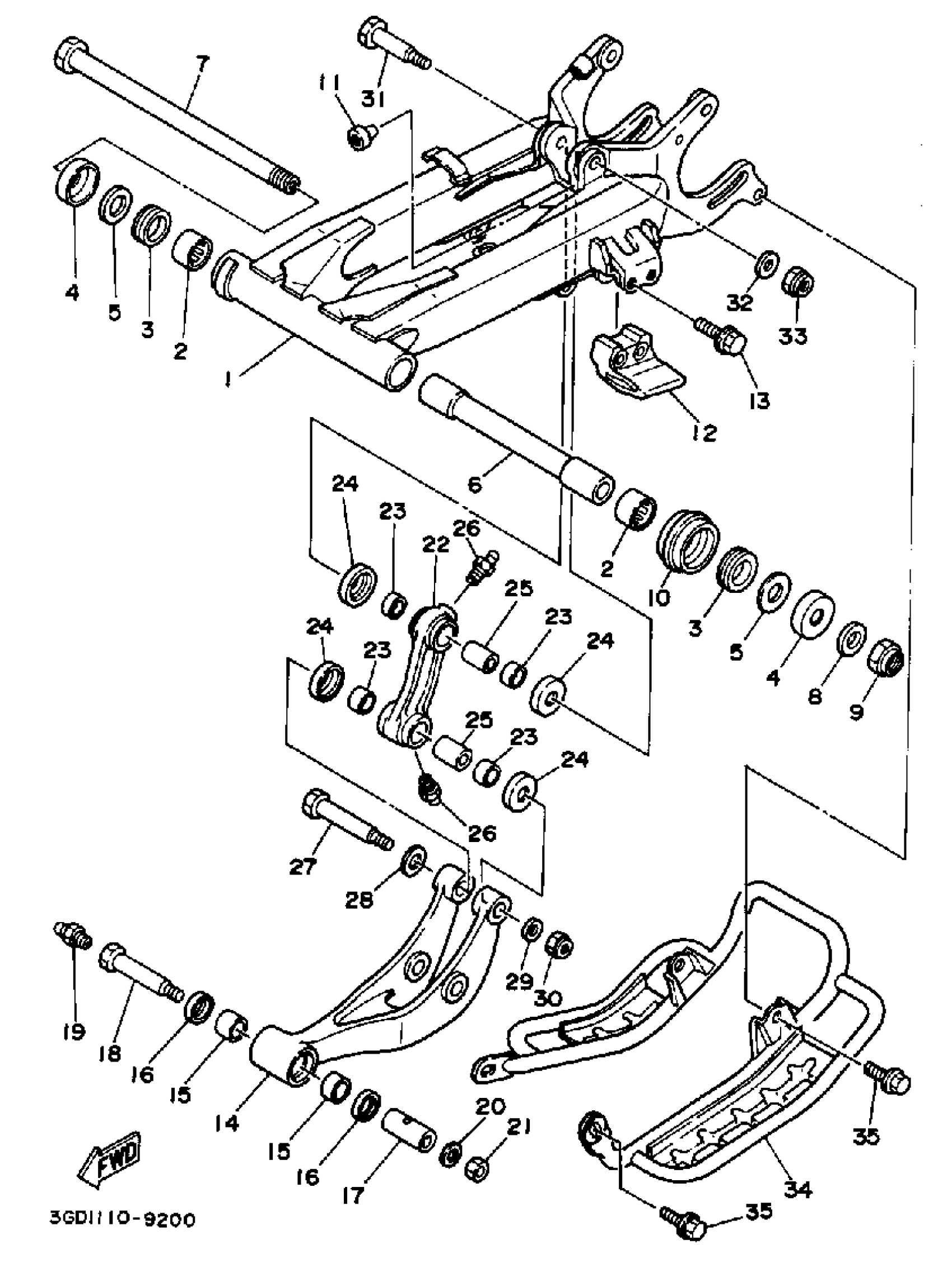

Yamaha YFM350XW (WARRIOR) 3GD 1989 SWING ARM Diagram

#

Description
Price

1

REAR ARM (3GD-22110-00-35)

3GD-22110-10-35

Unavailable

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$36.96

3

OIL SEAL (35X41.5X8-483)

93108-35004-00

$11.73

4

COVER, THRUST

2K6-22128-01-00

$24.44

5

WASHER, PLATE(2VM)

90201-247L2-00

$7.55

6

BUSH

3GD-22184-00-00

$72.18

7

SHAFT, PIVOT

1UY-22141-10-00

$51.55

8

WASHER, PLATE (5X6)

90201-160F6-00

$7.03

9

NUT, SELF-LOCKING

90185-16002-00

$14.11

10

SEAL, GUARD

2GU-22151-00-00

$14.87

11

STOPPER, MAIN STAND

4N0-27114-00-00

$5.39

12

SUPPORT, CHAIN

38W-22199-00-00

$32.59

13

BOLT, FLANGE

95817-08040-00

$5.04

14

ARM, RELAY

1UY-2217A-00-00

Unavailable

15

BUSH, FORMED(1RX)

90383-20033-00

$12.48

16

OIL SEAL

93109-20076-00

Unavailable

17

COLLAR

90387-12021-00

Unavailable

18

BOLT (30X)

90109-10752-00

Unavailable

19

NIPPLE, GREASE

93700-06M03-00

$7.40

20

WASHER (7A9)

90201-100F7-00

Unavailable

21

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

22

ROD, CONNECTING 1

1UY-2217F-00-00

Unavailable

23

BUSH, FORMED(1RX)

90383-20032-00

Unavailable

24

COVER, THRUST 2

55K-22129-00-00

Unavailable

25

COLLAR(1RX)

90387-125N8-00

Unavailable

26

NIPPLE, GREASE

93700-06M03-00

$7.40

27

BOLT(38W)

90109-102A6-00

Unavailable

28

WASHER, PLATE

90201-12027-00

Unavailable

29

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

30

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

31

BOLT

90109-102A7-00

Unavailable

32

WASHER (7A9)

90201-100F7-00

Unavailable

33

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

34

COVER

1UY-2219X-00-00

Unavailable

35

BOLT, FLANGE

95817-08012-00

Unavailable
