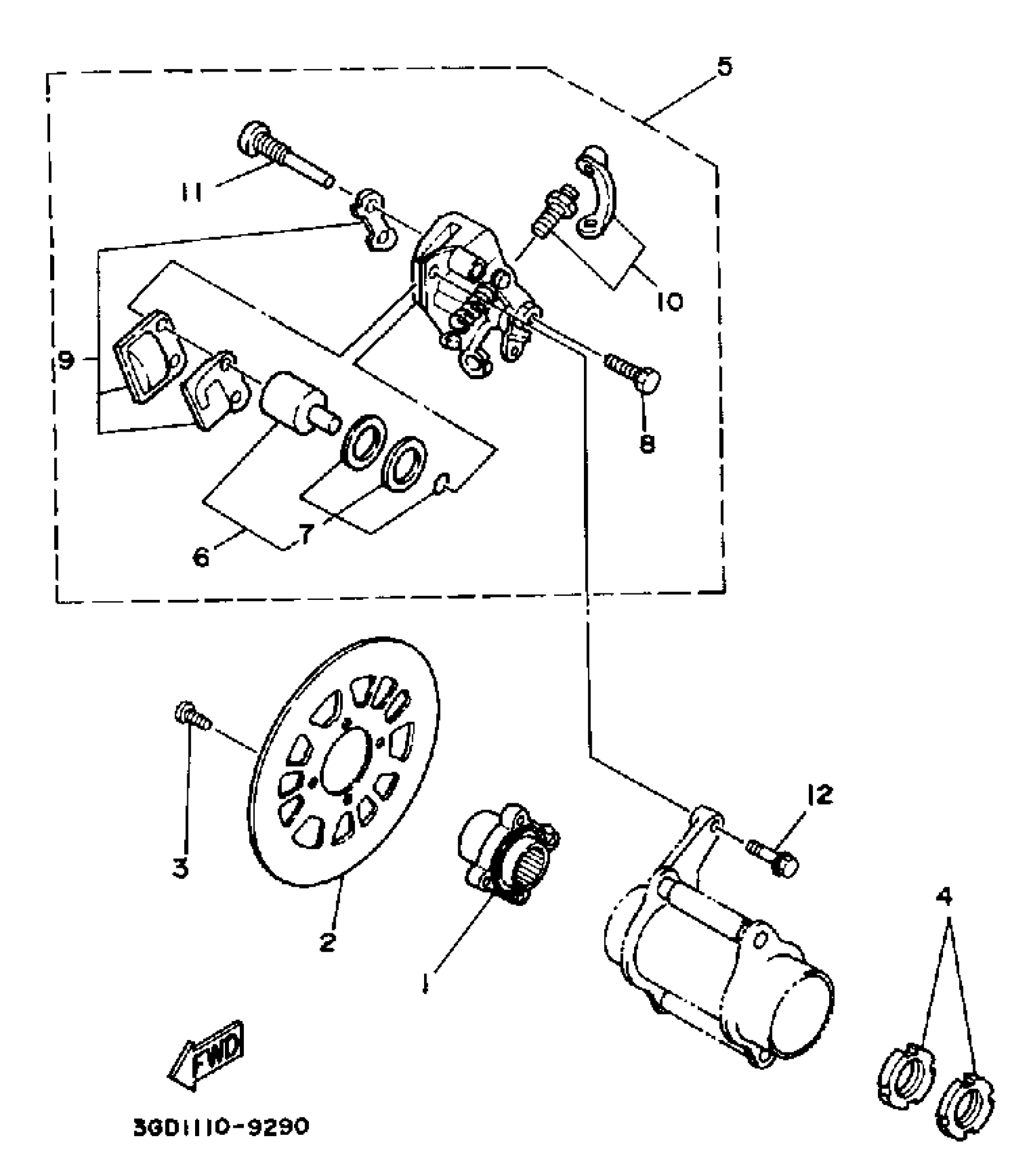

Yamaha YFM350XW (WARRIOR) 3GD 1989 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

2XK-25712-00-00

Unavailable

2

DISC, BRAKE

2XJ-25831-50-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$5.93

4

NUT

90170-38377-00

Unavailable

5

CALIPER ASSY, REAR 2

1UY-2580W-02-00

Unavailable

6

PISTON ASSY, CALIPER

1UY-W0057-50-00

$102.21

7

CALIPER SEAL KIT

1UY-W0047-50-00

$14.76

8

ADJUSTBOLT

1UY-25972-51-00

$10.74

9

BRAKE PAD KIT 2

1UY-W0046-01-00

Unavailable

10

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

11

PIN, PAD

1UY-25924-51-00

Unavailable

12

BOLT, WASHER BASED(1UY)

90105-08440-00

$4.91
