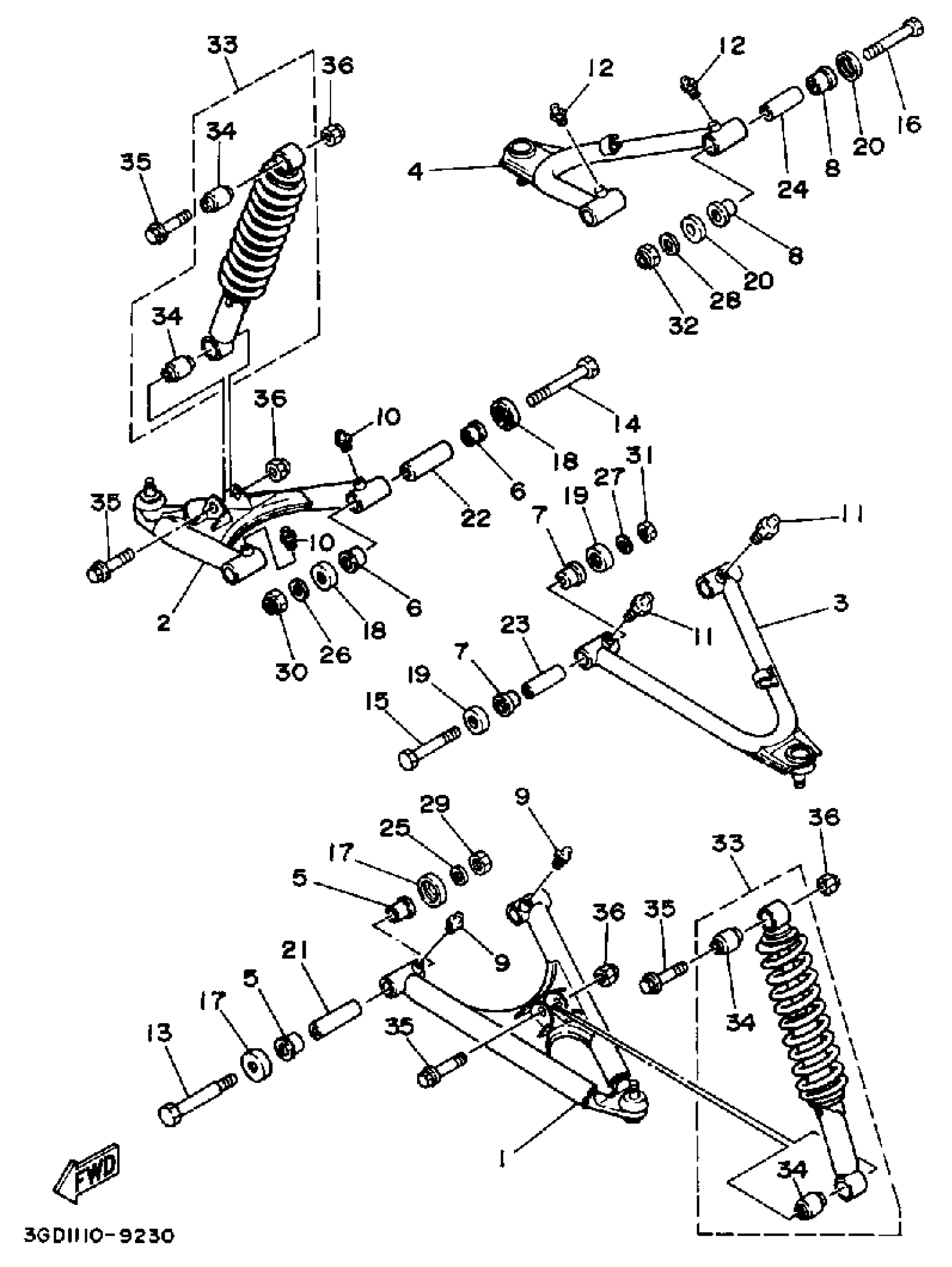

Yamaha YFM350XW (WARRIOR) 3GD 1989 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

3GD-23570-00-35

Unavailable

2

FRONT LOWER ARM COMP. (RIGHT)

3GD-23580-00-35

Unavailable

3

FRONT UPPER ARM COMP. (LEFT)

3GD-23540-00-35

Unavailable

4

FRONT UPPER ARM COMP. (RIGHT)

3GD-23550-00-35

Unavailable

5

BUSH, SOLID(3GG)

90381-15088-00

$19.50

6

BUSH, SOLID(3GG)

90381-15088-00

$19.50

7

BUSH, SOLID(3GG)

90381-15088-00

$19.50

8

BUSH, SOLID(3GG)

90381-15088-00

$19.50

9

NIPPLE, GREASE

93700-06M03-00

$7.40

10

NIPPLE, GREASE

93700-06M03-00

$7.40

11

NIPPLE, GREASE

93700-06M03-00

$7.40

12

NIPPLE, GREASE

93700-06M03-00

$7.40

13

BOLT(1UY)

90101-10655-00

$5.76

14

BOLT(1UY)

90101-10655-00

$5.76

15

BOLT(1UY)

90101-10655-00

$5.76

16

BOLT(1UY)

90101-10655-00

$5.76

17

COVER, THRUST 1

1UY-23517-01-00

Unavailable

18

COVER, THRUST 1

1UY-23517-01-00

Unavailable

19

COVER, THRUST 1

1UY-23517-01-00

Unavailable

20

COVER, THRUST 1

1UY-23517-01-00

Unavailable

21

COLLAR(1UY)

90387-101R3-00

Unavailable

22

COLLAR(1UY)

90387-101R3-00

Unavailable

23

COLLAR(1UY)

90387-101R3-00

Unavailable

24

COLLAR(1UY)

90387-101R3-00

Unavailable

25

WASHER (7A9)

90201-100F7-00

Unavailable

26

WASHER (7A9)

90201-100F7-00

Unavailable

27

WASHER (7A9)

90201-100F7-00

Unavailable

28

WASHER (7A9)

90201-100F7-00

Unavailable

29

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

30

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

31

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

32

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

33

SHOCK ABSORBER ASSEMBLY

3GD-23350-00-26

Unavailable

33

SHOCK ASSY FRONT (RED SPRING)

3GD-23350-00-6W

Unavailable

34

. DAMPER, BUSH B

2XJ-2331R-00-00

Unavailable

35

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

36

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable
