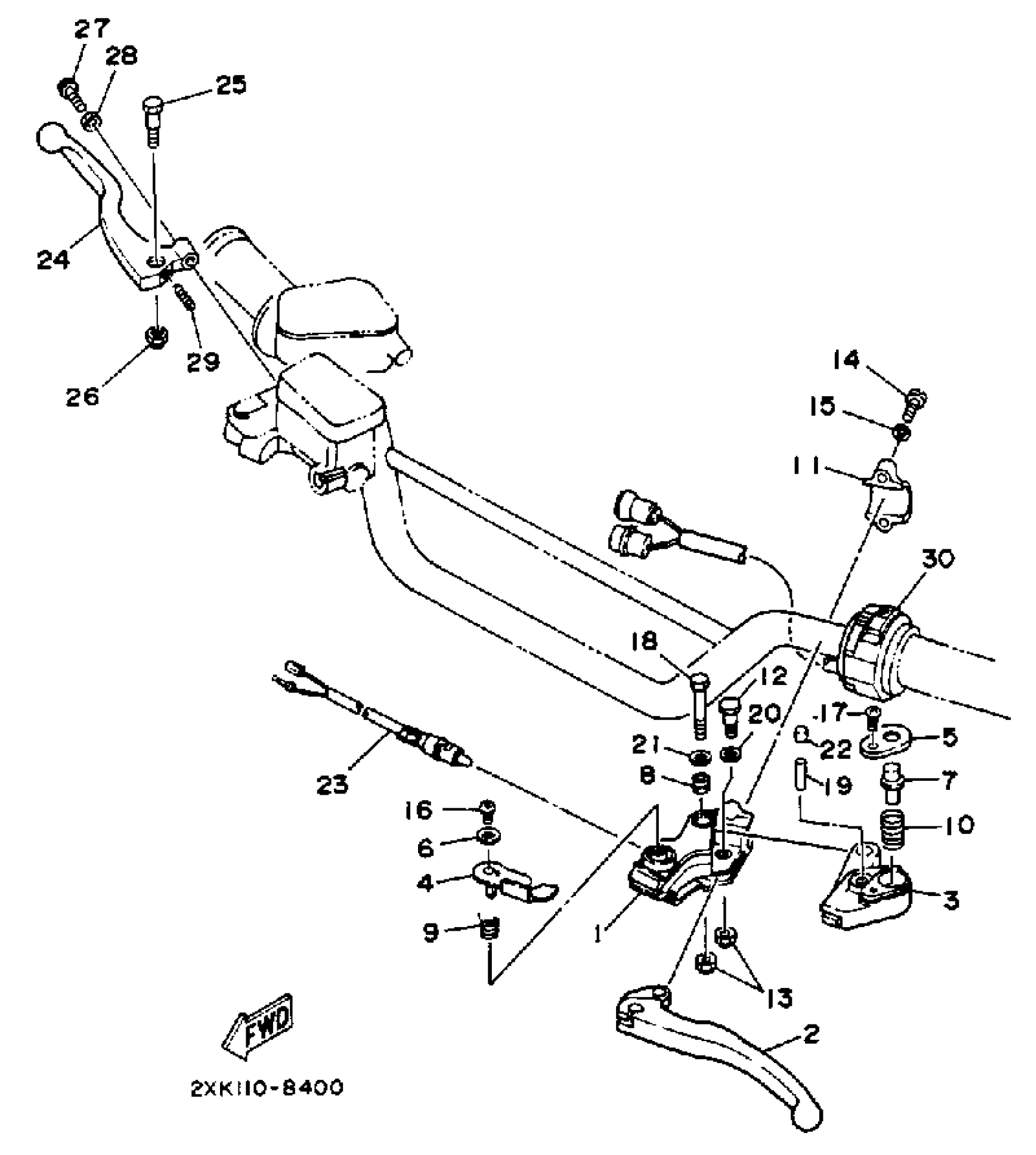

Yamaha YFM350XU (WARRIOR) 2XK 1988 HANDLE SWITCH LEVER Diagram
#
Description
Price
1
HOLDER, LEVER 1
99999-02990-00
Unavailable
3
LEVER 2
1UY-83922-01-00
Unavailable
4
LEVER, LOCK
1UY-83965-00-00
Unavailable
5
COVER
1UY-83935-00-00
Unavailable
7
PIN, LOCK 1
1UY-83967-00-00
Unavailable
11
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
16
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
17
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
18
BOLT(8BC)
97017-06040-00
Unavailable
19
PIN,SPRING (648)
91690-40022-00
Unavailable
20
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
21
WASHER(6TA)
92907-06200-00
Unavailable
22
CAP 1
1UY-83956-00-00
Unavailable
23
FRONT STOP SWITCH ASSY
1YW-83980-00-00
Unavailable
24
LEVER 2
1RX-83922-02-00
Unavailable
25
BOLT (4L0)
90109-06577-00
Unavailable
27
SCREW (2L0)
90149-06131-00
Unavailable
28
NUT HEXAGON 306839270000
90170-06010-00
Unavailable
29
SPRING COMPRESSION306839240000
90501-10312-00
Unavailable
30
SWITCH, HANDLE 3
59V-83973-09-00
Unavailable
