Description

Price

1

FUEL TANK COMP.

1UY-24110-01-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

4

O-RING

4X8-24534-00-00

$13.49

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

SCREW 256241430000

90149-06011-00

$5.60

9

GROMMET (4V1)

90480-18290-00

$8.49

10

COLLAR (29U)

90387-066H4-00

$8.49

11

BOLT, HEXAGON

97017-06030-00

$3.61

12

WASHER, SPRING

92995-06100-00

Unavailable

13

GROMMET(38W)

90480-01400-00

$13.49

14

WASHER, PLATE

90201-06090-00

$5.60

15

COLLAR (1T2)

90387-07598-00

$5.60

16

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

17

HOSE (L400)

90445-116K9-00

Unavailable

18

CLIP

90467-100A1-00

Unavailable

19

HOSE (L1500)

90445-090F6-00

Unavailable

20

DAMPER, PLATE 1

1UY-2414H-00-00

Unavailable

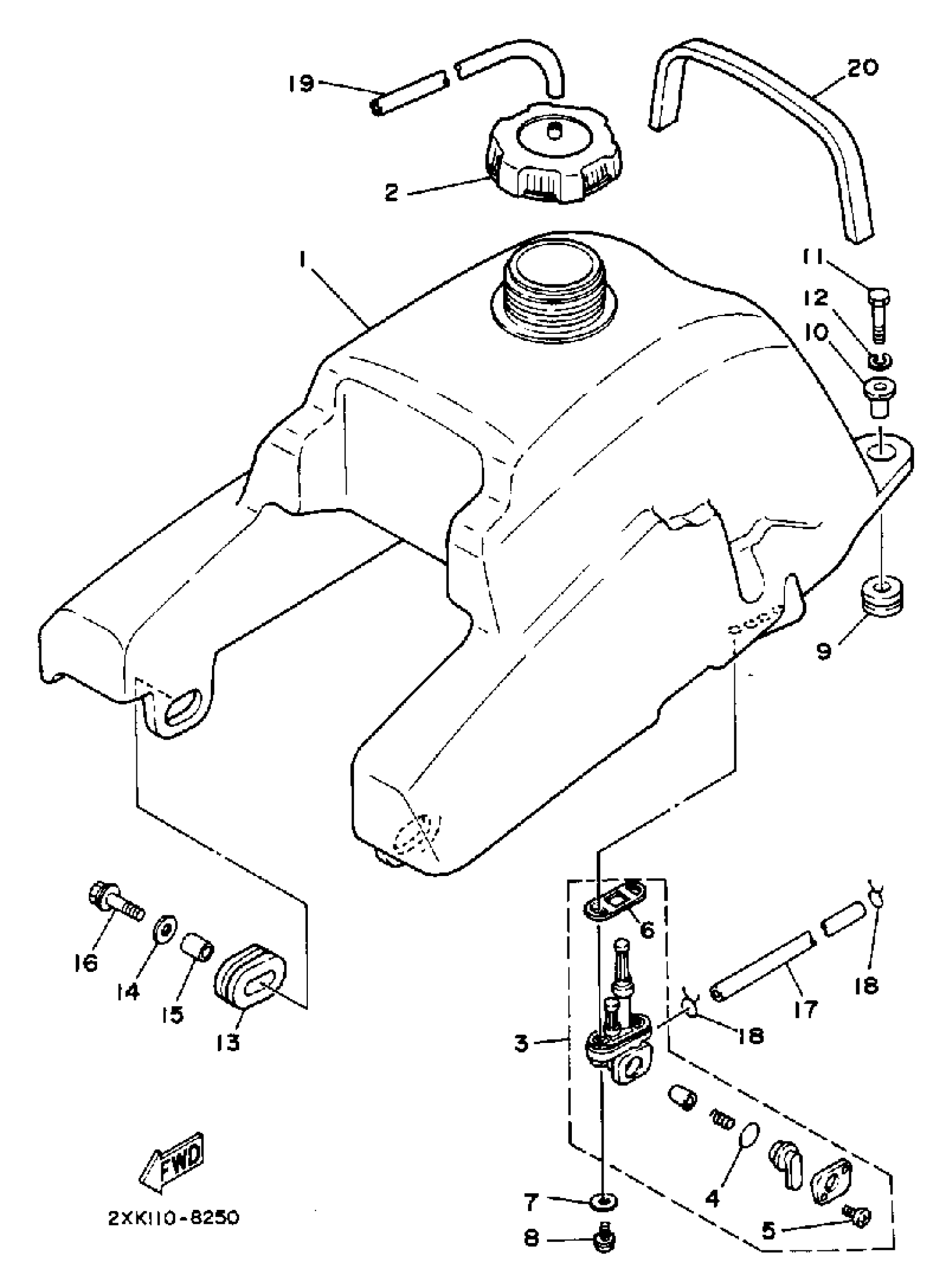

Yamaha YFM350XU (WARRIOR) 2XK 1988 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

FUEL COCK ASSY 1

O-RING

SCREW, PAN HEAD (J10)

O-RING

WASHER, PLATE(3MB)

SCREW 256241430000

GROMMET (4V1)

COLLAR (29U)

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

COLLAR (1T2)

BOLT, WITH WASHER (24X)

HOSE (L400)

CLIP

HOSE (L1500)

DAMPER, PLATE 1
