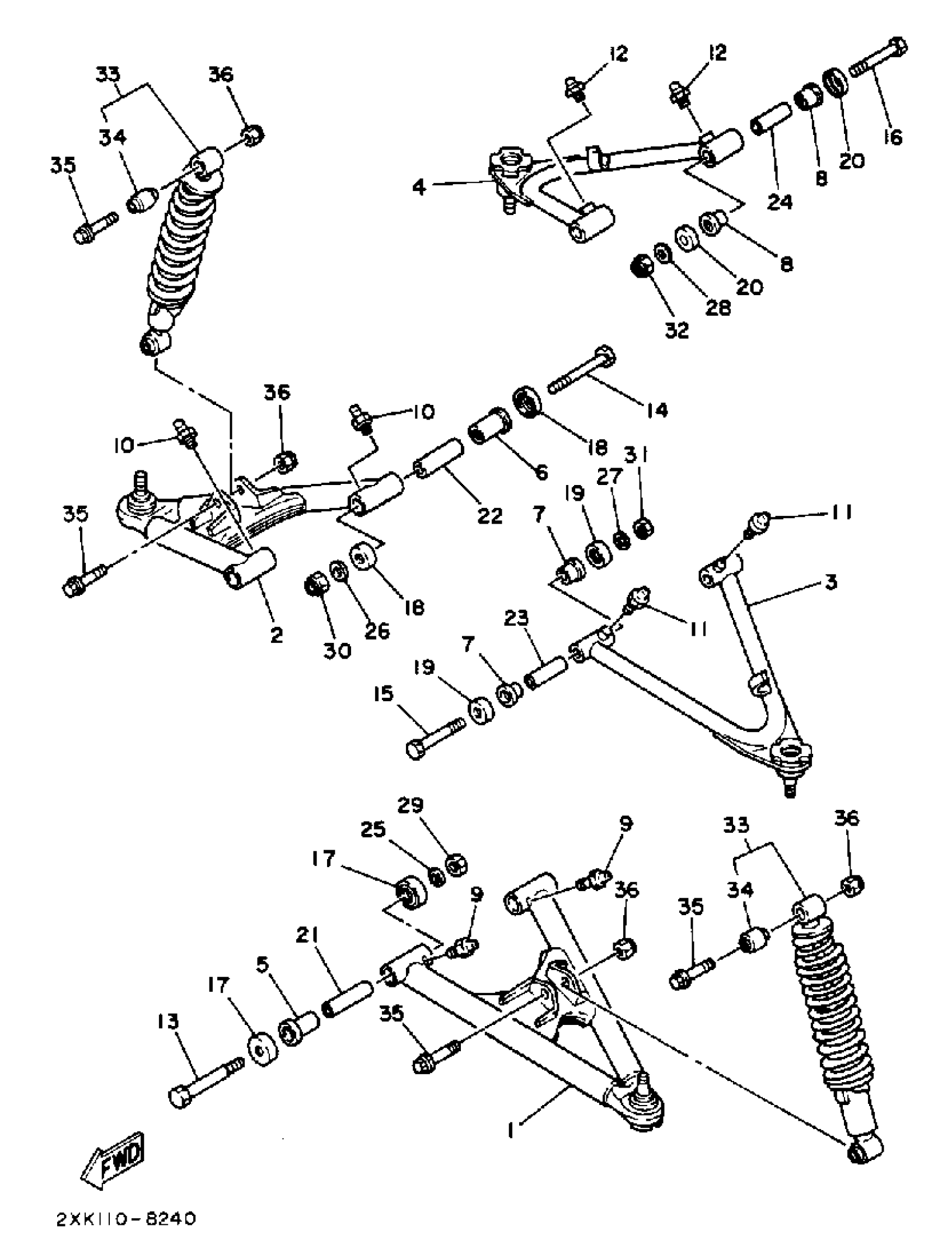

Yamaha YFM350XU (WARRIOR) 2XK 1988 FRONT SUSPENSION WHEEL Diagram
#
1
FRT LWR ARM CMPL LCOMP. (LEFT) (1UY-23570-00-35)
2XK-23570-00-35
Unavailable
2
FRT LWR ARM CMPL RCOMP. (RIGHT)
2XK-23580-00-35
Unavailable
3
FRT. UPPER ARM L.COMP. (LEFT) (1UY-23540-00-35)
2XK-23540-00-35
Unavailable
4
FRT. UPPER ARM R.COMP. (RIGHT)
2XK-23550-00-35
Unavailable
9
NIPPLE, GREASE
93700-06M03-00
Unavailable
10
NIPPLE, GREASE
93700-06M03-00
Unavailable
11
NIPPLE, GREASE
93700-06M03-00
Unavailable
12
NIPPLE, GREASE
93700-06M03-00
Unavailable
13
BOLT
90101-10656-00
Unavailable
14
BOLT
90101-10656-00
Unavailable
17
COVER, THRUST 1
401-22128-01-00
Unavailable
18
COVER, THRUST 1
401-22128-01-00
Unavailable
19
COVER, THRUST 1
1UY-23517-01-00
Unavailable
20
COVER, THRUST 1
1UY-23517-01-00
Unavailable
21
COLLAR(59V)
90387-124M4-00
Unavailable
22
COLLAR(59V)
90387-124M4-00
Unavailable
23
COLLAR(1UY)
90387-101R3-00
Unavailable
24
COLLAR(1UY)
90387-101R3-00
Unavailable
25
WASHER (7A9)
90201-100F7-00
Unavailable
26
WASHER (7A9)
90201-100F7-00
Unavailable
27
WASHER (7A9)
90201-100F7-00
Unavailable
28
WASHER (7A9)
90201-100F7-00
Unavailable
29
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
30
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
31
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
32
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
33
SHOCK ABSORBER ASSEMBLY
1UY-23350-00-26
Unavailable
33
SHOCK ABSORBER ASSEMBLY
1UY-23350-00-6W
Unavailable
34
BUSH, REAR SHOCK ABSORBER
59V-22216-00-00
Unavailable
35
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
36
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
