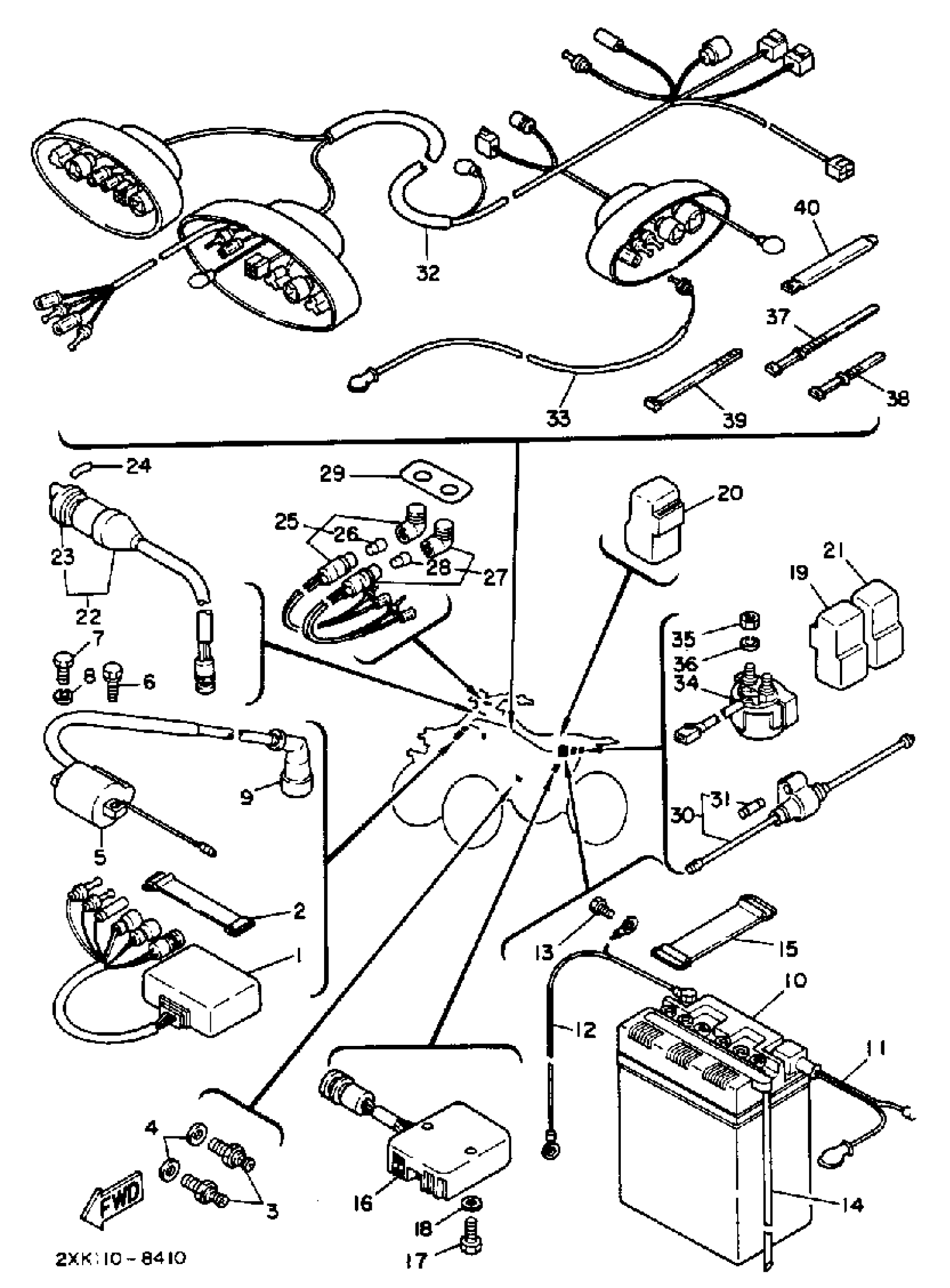

Yamaha YFM350XU (WARRIOR) 2XK 1988 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
2XK-85540-20-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
ACB12CA GS BATTERY WET PACK
ACB-12CA0-00-00
Unavailable
12
WIRE, LEAD
1YW-82507-00-00
Unavailable
16
RECTIFIER & REGULATOR ASSEMBLY
59V-81960-A0-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
20
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
21
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
22
MAIN SWITCH ASSY
2FJ-82510-09-00
Unavailable
23
CAP, KEY
24W-82579-00-00
Unavailable
24
LABEL
29U-83585-10-00
Unavailable
25
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
26
BULB (12V-3.4W)
123-83516-21-00
Unavailable
27
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
28
BULB (12V-3.4W)
123-83516-21-00
Unavailable
29
LABEL
1UY-83585-00-00
Unavailable
30
FUSE HOLDER ASSY
1UY-82150-00-00
Unavailable
31
FUSE (15A)
1UY-82151-00-00
Unavailable
32
. WIRE HARNESS ASSEMBLY
2XK-82590-10-00
Unavailable
32
. SOCKET
59V-84312-10-00
Unavailable
32
WIRE HARNESS ASSEMBLY (2XK-82590-00)
99999-01908-00
Unavailable
33
WIRE, LEAD
2JX-82541-00-00
Unavailable
34
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
Unavailable
35
NUT(650)
95380-06700-00
Unavailable
36
WASHER, SPRING
92995-06100-00
Unavailable
37
BAND, SWITCH CORD
437-83936-01-00
Unavailable
38
BAND, SWITCH CORD
437-83936-11-00
Unavailable
39
CLAMP
1UY-82591-00-00
Unavailable
40
BAND, SWITCH CORD
437-83936-01-00
Unavailable
