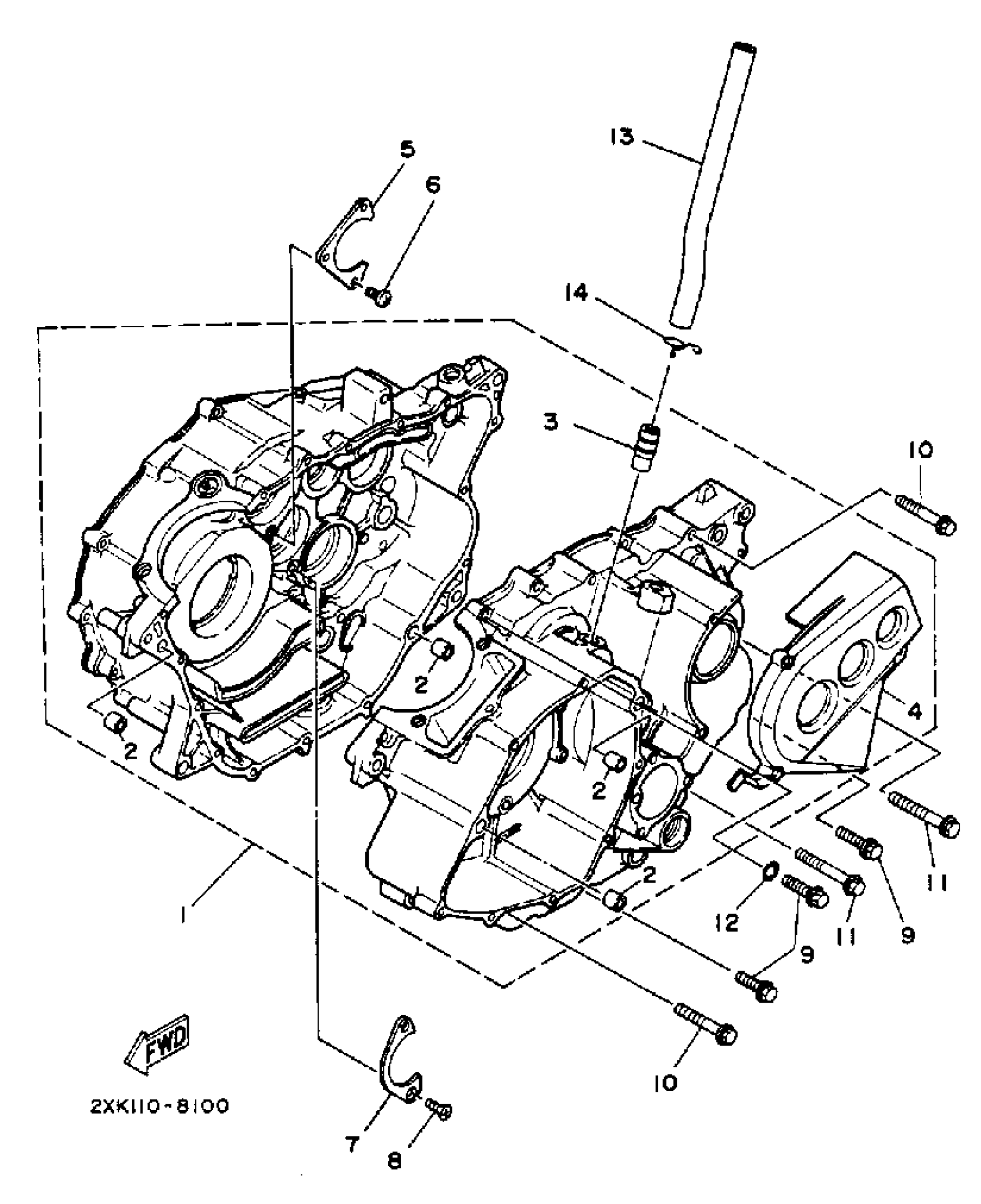

Yamaha YFM350XU (WARRIOR) 2XK 1988 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

1UY-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

PIPE, BREATHER 2

371-11167-01-00

$9.67

4

COVER, CRANKCASE 2

1UY-15421-00-00

$34.82

5

PLATE, BEARING COVER

3R4-15381-00-00

$4.21

6

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

7

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

8

SCREW, FLAT

98707-06014-00

$5.76

9

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

10

BOLT, SMALL FLANGE

95027-06050-00

$1.68

11

BOLT, SMALL FLANGE

95027-06060-00

$1.91

12

GASKET 256113960000

90430-06014-00

Unavailable

13

HOSE

90445-16416-00

Unavailable

14

CLIP (371)

90467-14015-00

$7.03
