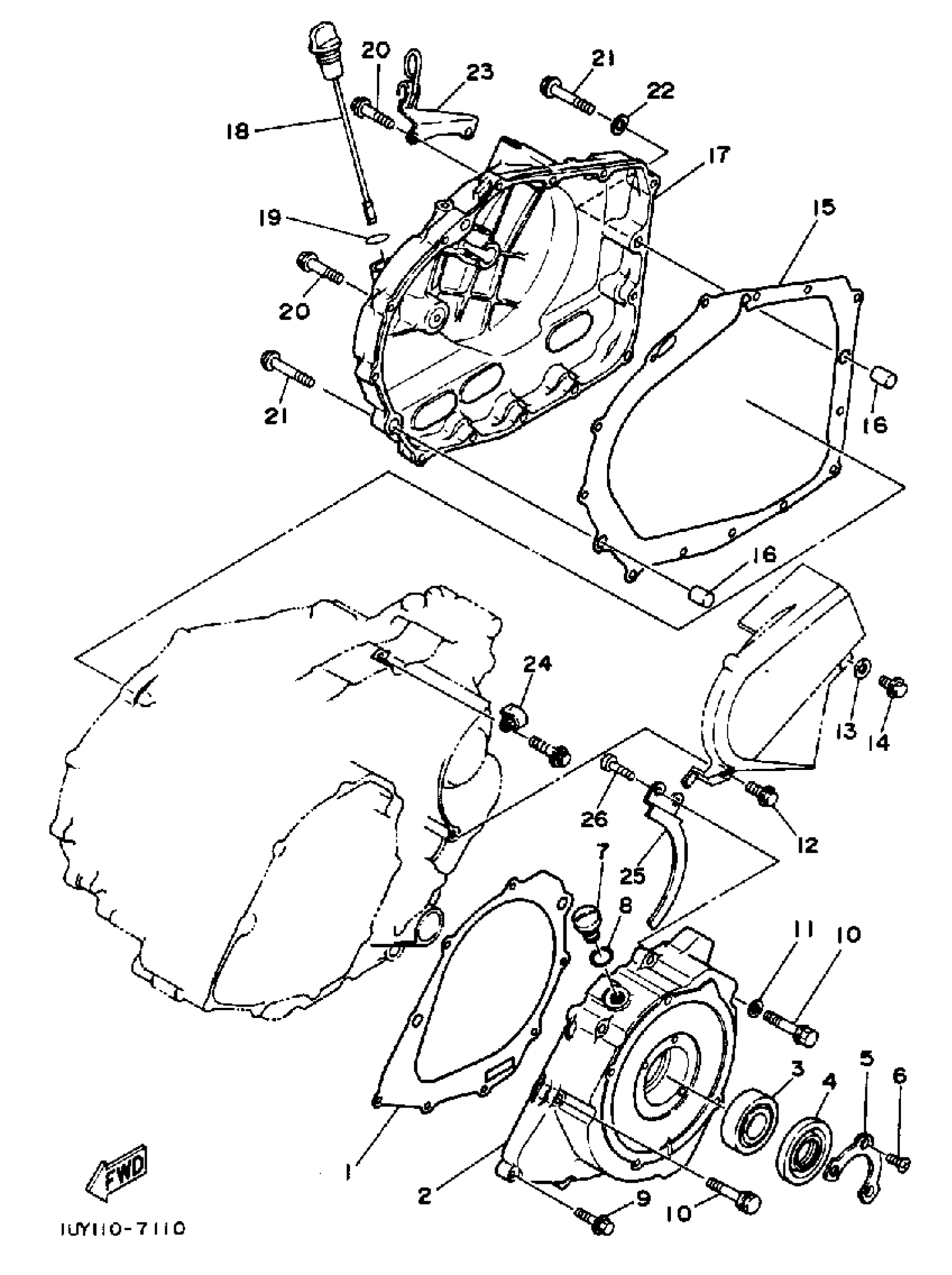

Yamaha YFM350XU (WARRIOR) 2XK 1988 CRANKCASE COVER Diagram

#

Description
Price

1

GASKET, CRANKCASE COVER 1

3GD-15451-00-00

$21.99

2

ADAPTOR

1UY-15787-02-00

Unavailable

3

BEARING (1YW)

93306-07802-00

Unavailable

4

OIL SEAL

93102-28476-00

$22.99

5

WASHER, THRUST

1UY-15719-00-00

$24.99

6

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

7

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

8

O-RING (2H9)

93210-14369-00

$7.49

9

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

10

BOLT, SMALL FLANGE

95024-06045-00

$9.49

11

GASKET 256113960000

90430-06014-00

Unavailable

12

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

13

WASHER, PLATE 8221447500

90201-06057-00

$5.60

14

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

15

GASKET, CRANKCASE COVER 2

3GD-15461-00-00

$29.99

16

PIN, DOWEL

99530-12016-00

Unavailable

17

COVER, CRANKCASE 3

1UY-15431-00-00

Unavailable

18

PLUG, OIL LEVEL

1UY-15362-01-00

Unavailable

19

O-RING (5Y1)

93210-19522-00

Unavailable

20

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

21

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable

23

HOLDER, CLUTCH CABLE

1UY-15441-00-00

Unavailable

24

CLAMP(51Y)

90465-08277-00

Unavailable

25

STOPPER 1

1UY-81175-01-00

Unavailable

26

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable
