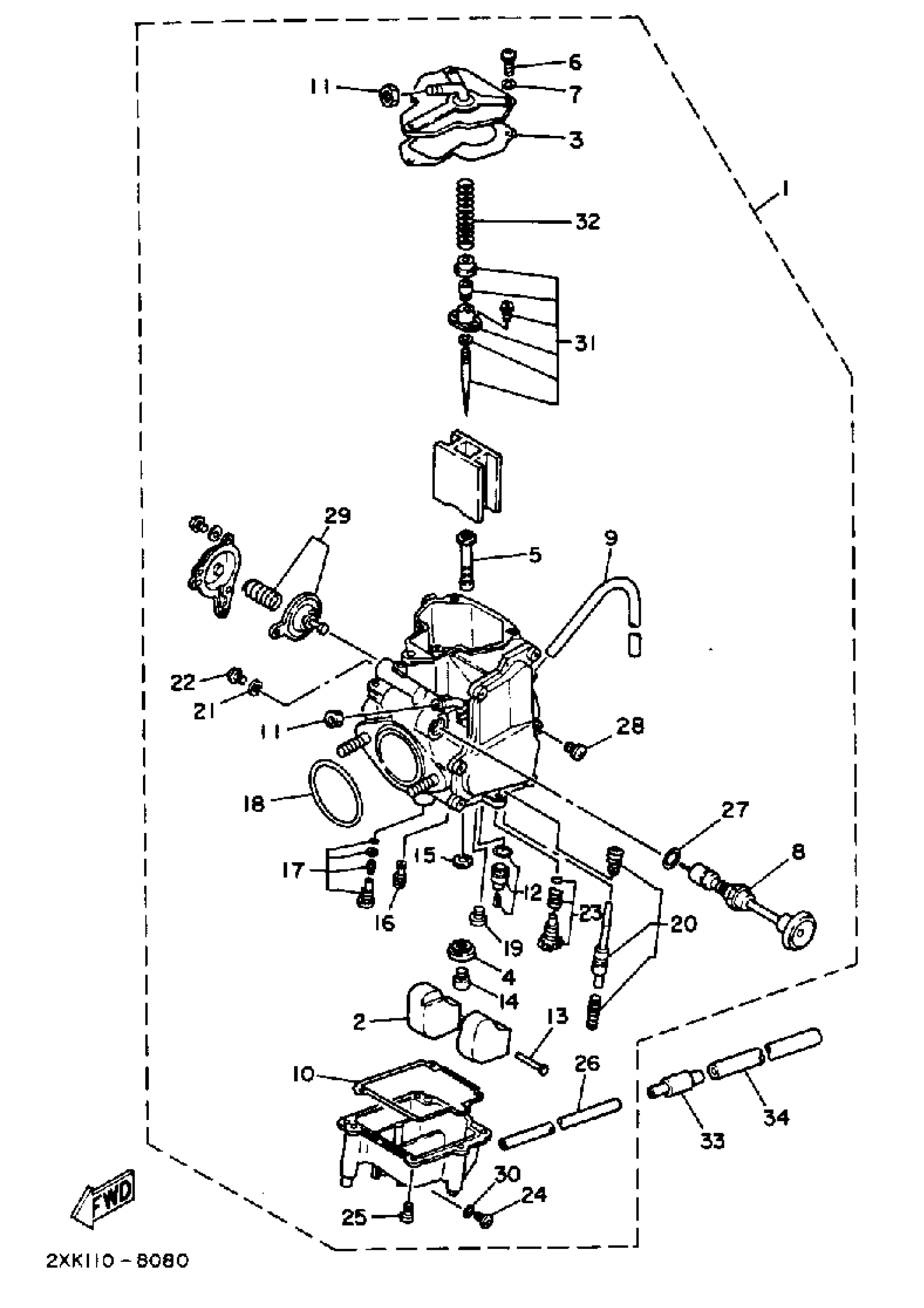

Yamaha YFM350XU (WARRIOR) 2XK 1988 CARBURETOR Diagram
#
Description
Price
1
CARBURETOR ASSEMBLY 1
2XK-14101-00-00
Unavailable
5
. NOZZLE, MAIN
1UY-14141-36-00
Unavailable
9
. PIPE
1UY-14197-00-00
Unavailable
14
. JET, MAIN (145)
620-14143-29-00
Unavailable
16
JET, PILOT (# 42.5)
4G0-14142-42-A0
Unavailable
17
PILOT SCREW SET
21V-14105-00-00
Unavailable
18
O-RING
1YW-14147-00-00
Unavailable
19
SCREW
1FN-14565-00-00
Unavailable
20
ROD SET
1UY-14504-00-00
Unavailable
21
. WASHER
59V-14962-00-00
Unavailable
22
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
23
THROTTLE SCREW SET
2VA-14103-00-00
Unavailable
24
SCREW
2L1-14191-00-00
Unavailable
25
SCREW, PAN HEAD
98511-04012-00
Unavailable
26
HOSE (L1500)
90445-084J0-00
Unavailable
27
O-RING
1AE-14147-00-00
Unavailable
28
SCREW, PAN HEAD
98517-04012-00
Unavailable
29
DIAPHRAGM SET, 5
3LD-1490H-00-00
Unavailable
30
O-RING
214-14147-00-00
Unavailable
31
. NEEDLE SET
2XK-1490J-00-00
Unavailable
32
. SPRING, THROTTLE VALVE
2HR-14131-00-00
Unavailable
33
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
34
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
