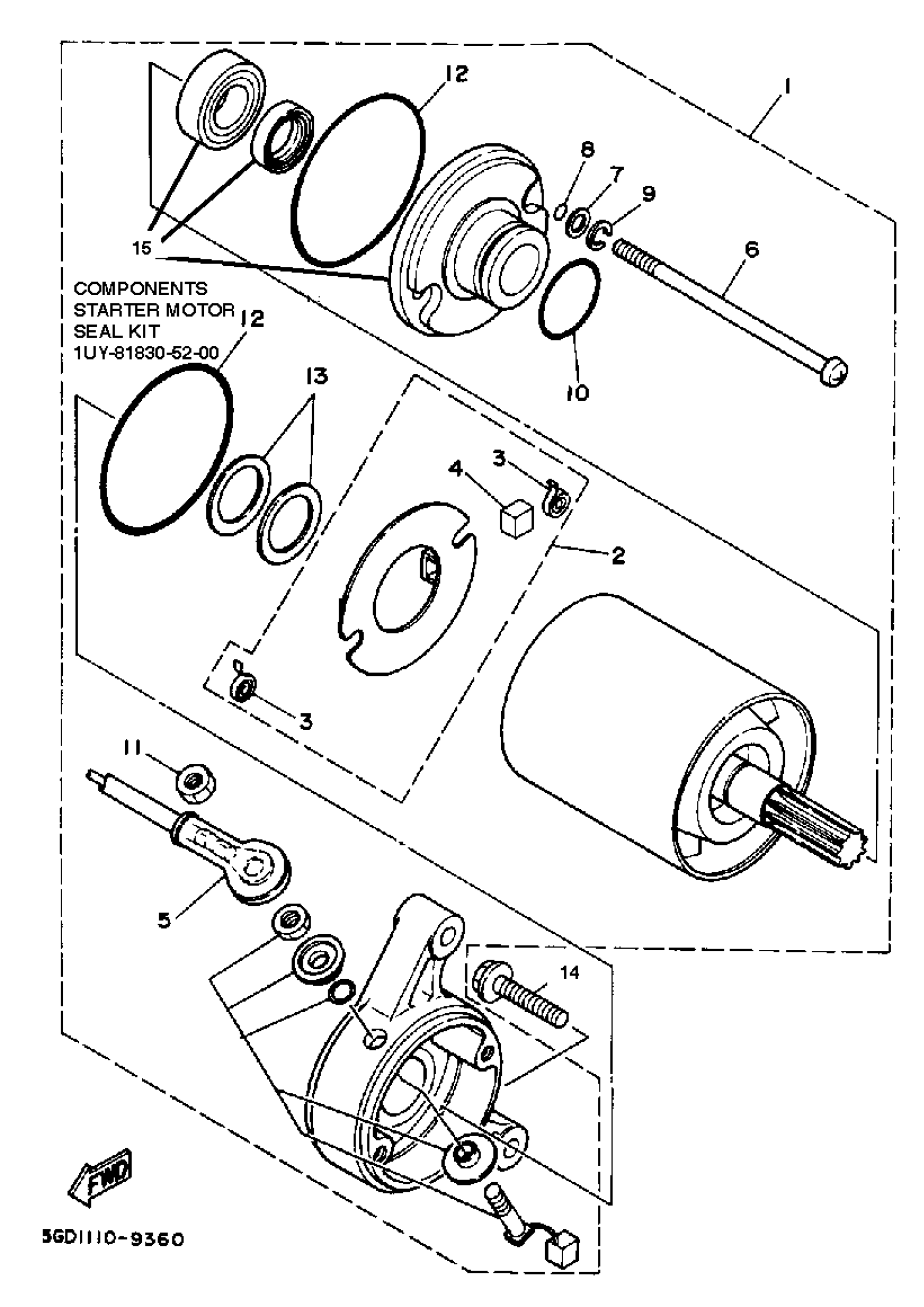

Yamaha YFM350XT (WARRIOR) 1UY 1987 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

1UY-81890-00-00

Unavailable

2

BRUSH HOLDER ASSY

8L6-81840-51-00

$82.99

3

SPRING, BRUSH

8L6-81813-50-00

Unavailable

4

BRUSH 2

73A-81812-00-00

Unavailable

5

CORD, STARTER MOTOR

4SH-81815-00-00

Unavailable

6

BOLT

3GD-81826-00-00

$28.99

7

WASHER(1RW)

92907-05600-00

$3.78

8

O-RING

8L6-81847-50-00

$3.28

9

WASHER(3SX)

92907-05100-00

$8.49

10

O-RING (437)

93210-24235-00

$7.49

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

O-RING

4H7-81844-00-00

Unavailable

13

WASHER 1

4H7-81843-50-00

$3.90

14

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

15

STARTER MOTOR SEAL KIT

1UY-81830-52-00

Unavailable
