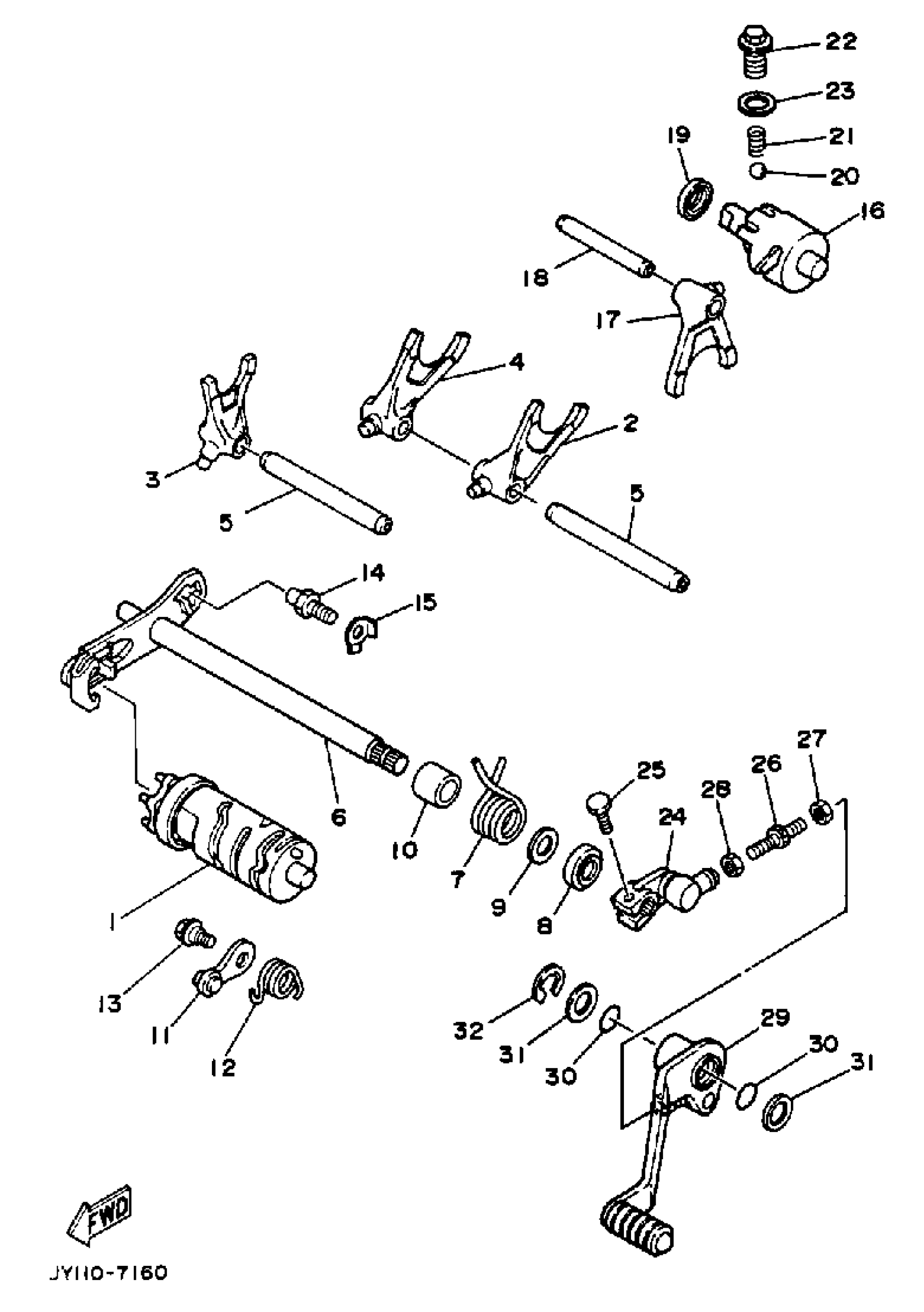

Yamaha YFM350XT (WARRIOR) 1UY 1987 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5YT-18540-00-00

Unavailable

2

FORK, SHIFT 1

1YW-18511-00-00

$74.99

3

FORK, SHIFT 2

4GB-18512-00-00

Unavailable

4

FORK, SHIFT 3

1UY-18513-00-00

Unavailable

5

BAR, SHIFT FORK GUIDE 1

1UY-18531-00-00

Unavailable

6

SHIFT SHAFT ASSY

1UY-18101-02-00

$92.99

7

SPRING, TORSION(1UY)

90508-32711-00

Unavailable

8

OIL SEAL (3Y1)

93102-14209-00

$11.49

9

WASHER, PLATE(52G)

90201-144J2-00

$8.49

10

SPACER(1UY)

90560-14284-00

Unavailable

11

STOPPER LEVER ASSY

1UY-18140-00-00

Unavailable

12

SPRING, TORSION(1UY)

90508-25712-00

$7.49

13

BOLT

90109-06190-00

$4.72

14

STOPPER, SCREW

5VK-18127-00-00

Unavailable

15

WASHER, LOCK(1UY)

90215-08260-00

$7.49

16

CAM, SHIFT 2

1UY-18546-00-00

Unavailable

17

FORK, SHIFT 1

1UY-18311-00-00

Unavailable

18

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

Unavailable

19

OIL SEAL (3X3)

93102-15212-00

Unavailable

20

BALL

93503-08007-00

Unavailable

21

SPRING, COMPRESSION(59V)

90501-147A6-00

Unavailable

22

BOLT, WASHER BASED(59V)

90105-14367-00

Unavailable

23

GASKET(59V)

90430-14194-00

Unavailable

24

ARM, SHIFT

1UY-18112-10-00

Unavailable

25

BOLT, FLANGE

95817-06020-00

Unavailable

26

ROD, SHIFT

2XK-18115-00-00

Unavailable

27

NUT (2H9)

90170-06228-00

Unavailable

28

NUT(JN5)

95317-06700-00

Unavailable

29

SHIFT PEDAL ASSY

1UY-18110-00-00

Unavailable

30

O-RING (22U)

93210-15566-00

Unavailable

31

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

32

CIRCLIP (122)

93430-12008-00

Unavailable
