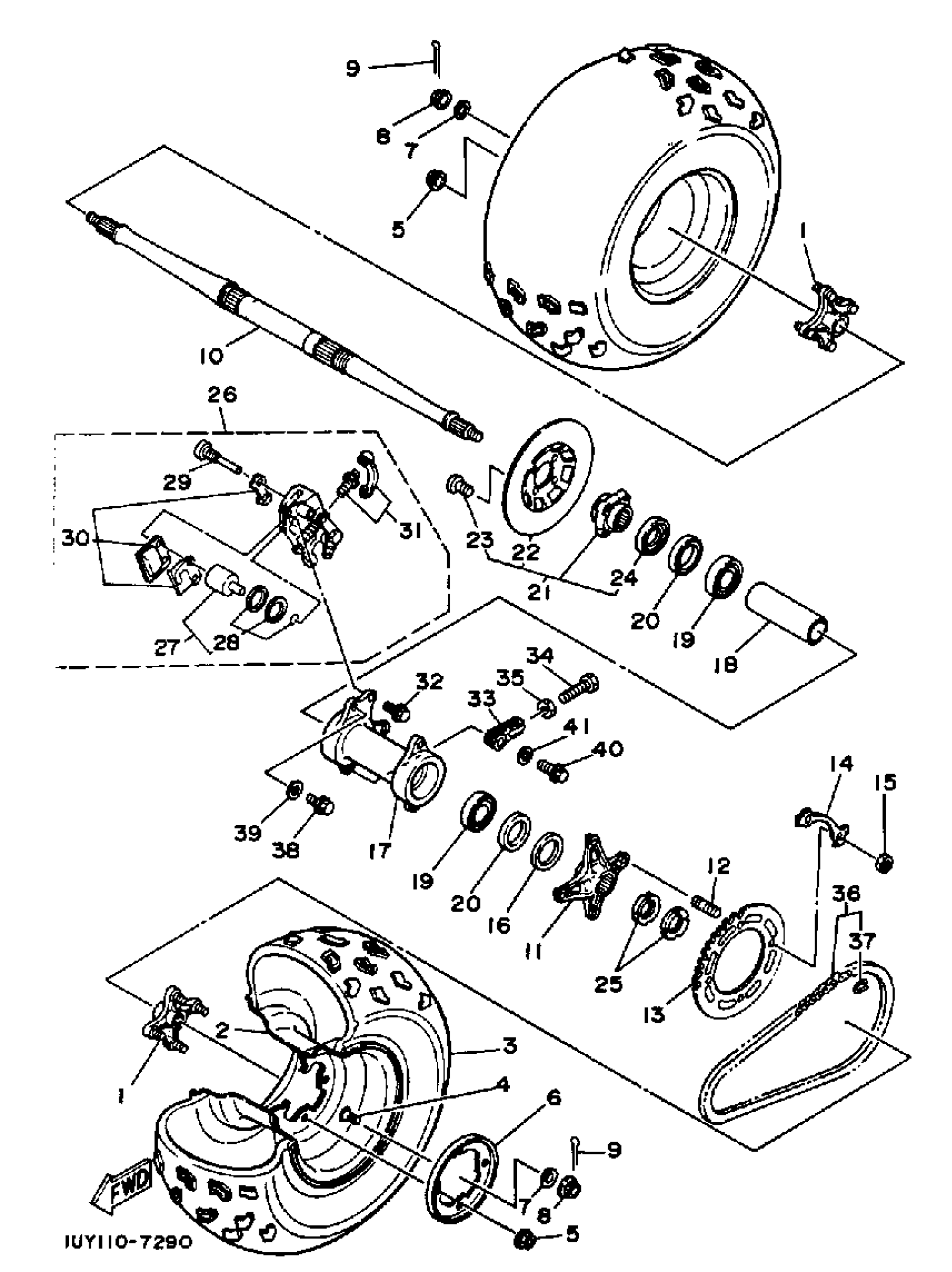

Yamaha YFM350XT (WARRIOR) 1UY 1987 REAR WHEEL Diagram
#
2
WHEEL, REAR
1UY-25390-00-7H
Unavailable
3
TIRE (AT22X10-9*KT775B T/L N)
94110-090X4-00
Unavailable
6
REINFORCEMENT
1UY-2538F-00-00
Unavailable
7
WASHER, PLATE
90201-140A6-00
Unavailable
10
AXLE, WHEEL
3GD-25381-00-00
Unavailable
11
COLLAR,SPRCKT.AXLE
99999-03111-00
Unavailable
13
SPROCKET, DRIVEN 40T (39F-25440-20)
43F-25440-50-00
Unavailable
14
WASHER
5Y1-25412-00-00
Unavailable
16
COVER, HUB DUST
1UY-25367-00-00
Unavailable
17
HUB, REAR
1UY-25311-02-35
Unavailable
18
SPACER, BEARING
1UY-25317-00-00
Unavailable
19
BEARING
93306-00804-00
Unavailable
20
OIL SEAL(1UY)
93102-48370-00
Unavailable
21
DISC BRAKE ASSEMBLY
1UY-25830-00-00
Unavailable
22
DISC,BRAKE
1UY-25831-50-00
Unavailable
23
BOLT (34L)
90109-08789-00
Unavailable
24
COVER, HUB DUST
1UY-25367-00-00
Unavailable
25
NUT
90179-38532-00
Unavailable
26
CALIPER ASSY, REAR 2
1UY-2580W-02-00
Unavailable
27
PISTON ASSY, CALIPER
1UY-W0057-50-00
Unavailable
28
CALIPER SEAL KIT
1UY-W0047-50-00
Unavailable
29
PIN, PAD
1UY-25924-51-00
Unavailable
30
BRAKE PAD KIT 2
1UY-W0046-01-00
Unavailable
31
BLEED SCREW KIT
36Y-W0048-00-00
Unavailable
32
BOLT, WASHER BASED(1UY)
90105-08440-00
Unavailable
33
PULLER, CHAIN 1
1UY-25388-00-00
Unavailable
34
BOLT(4SR)
90101-08777-00
Unavailable
35
NUT(6L2)
95333-08600-00
Unavailable
36
DID 520V6-100FB
94581-08100-00
Unavailable
37
. JOINT, CHAIN (34L) (DID50HDS)
94680-50011-00
Unavailable
38
BOLT, FLANGE
99999-03487-00
Unavailable
39
WASHER, PLATE (8K2)
90201-120A5-00
Unavailable
40
BOLT, WASHER BASED
90105-10418-00
Unavailable
41
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
