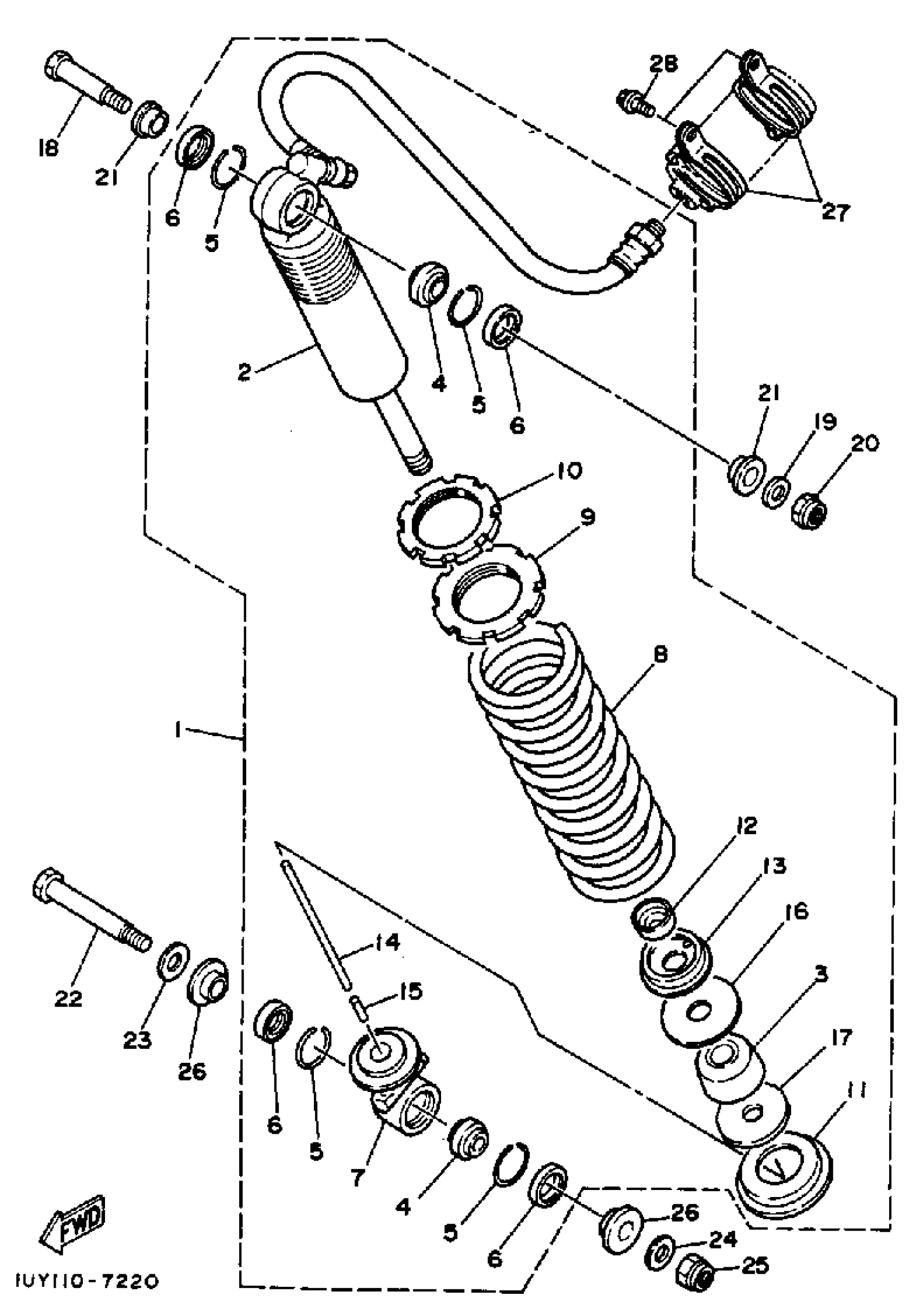

Yamaha YFM350XT (WARRIOR) 1UY 1987 REAR SHOCKS Diagram
#
Description
Price
1
SHOCK ABSORBER ASSY, REAR
2XK-22210-21-P2
Unavailable
1
SHOCK ABSORBER ASSY, REAR
2XK-22210-21-P1
Unavailable
2
. DAMPER SUB ASSY
1UY-22401-00-00
Unavailable
3
BUMP, STOP
23X-22493-00-00
Unavailable
7
. BRACKET, UPPER ASSEMBLY
38W-22209-09-00
Unavailable
8
SPRING-YELLOW
38W-22212-10-P2
Unavailable
8
. SPRING
38W-22212-10-6W
Unavailable
12
SEAL,DUST
23X-22475-01-00
Unavailable
13
. CAP, CASE
38W-22472-01-00
Unavailable
14
. ROD, PUSH
38W-22489-00-00
Unavailable
15
. PIN, DOWEL
93605-20204-00
Unavailable
16
. SEAT 1
38W-22424-00-00
Unavailable
17
SEAT 1
30X-22426-00-00
Unavailable
18
BOLT
90109-10704-00
Unavailable
19
WASHER (7A9)
90201-100F7-00
Unavailable
20
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
21
COLLAR (23X)
90387-127G8-00
Unavailable
22
BOLT(38W)
90109-102A6-00
Unavailable
23
WASHER, PLATE
90201-12027-00
Unavailable
24
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
25
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
26
COLLAR (23X)
90387-126H8-00
Unavailable
27
HOLDER, SUB TANK
1UY-22262-00-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
Unavailable
