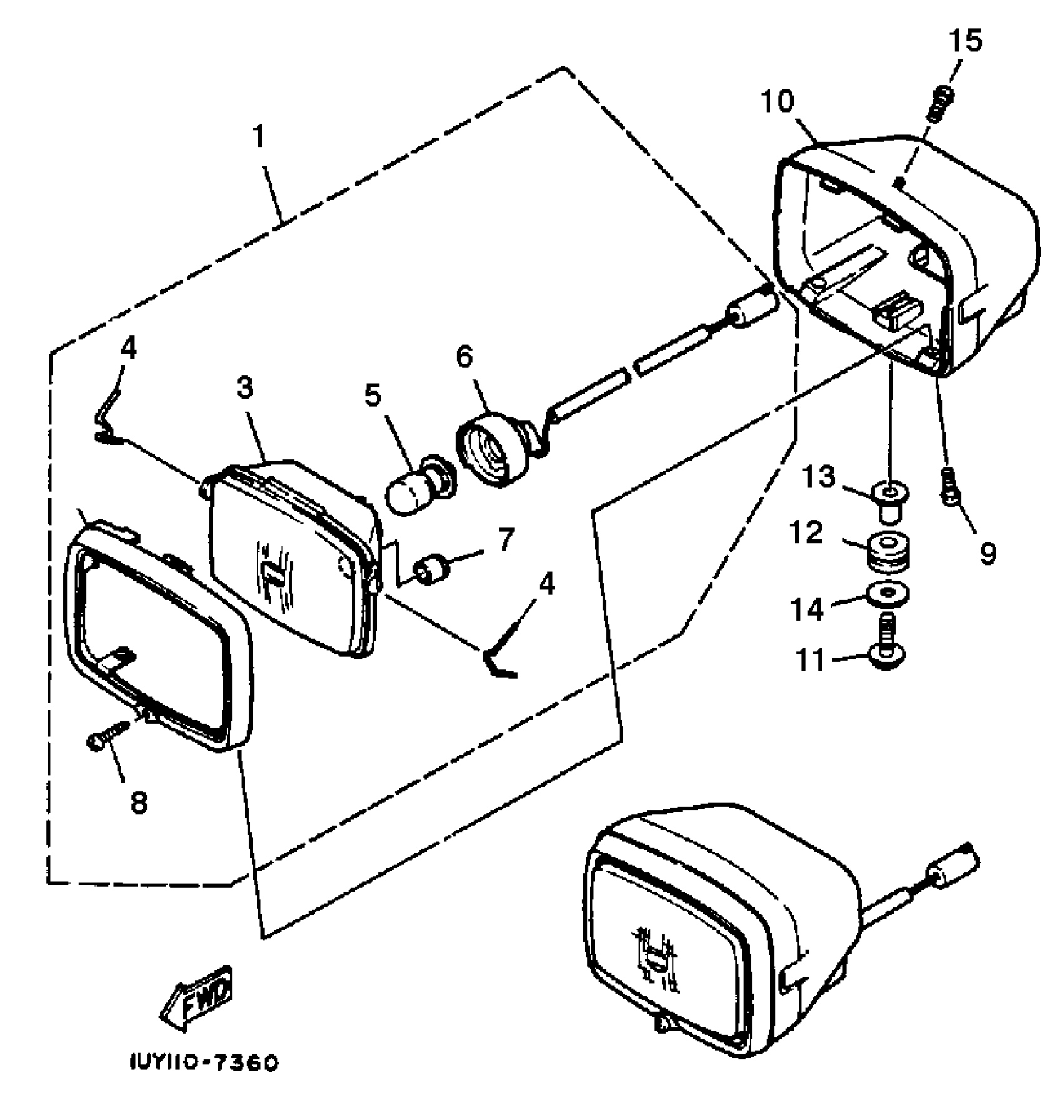

Yamaha YFM350XT (WARRIOR) 1UY 1987 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

1UY-84310-00-00

Unavailable

2

RIM, HEADLIGHT

1UY-84315-00-00

Unavailable

3

LENS ASSY

59V-84320-01-00

$97.99

4

SPRING, SET

1UY-84124-00-00

$7.99

5

BULB, HEADLIGHT (12V-25/25W)

1YT-84314-00-00

$11.99

6

SOCKET

59V-84312-02-00

Unavailable

7

GROMMET

3K7-84154-10-00

Unavailable

8

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

9

SCREW, PAN HEAD

90157-05M19-00

Unavailable

10

BODY ASSEMBLY

1UY-84330-00-00

Unavailable

10

BODY ASSY

1UY-84330-10-00

$27.99

11

BOLT, FLANGE

95822-06025-00

$1.75

12

GROMMET (29L)

90480-15363-00

$8.49

13

COLLAR(52E)

90387-063G3-00

$8.49

14

SCREW,WITH WASHER

90159-04090-00

Unavailable

14

WASHER, PLATE

90201-06747-00

Unavailable

15

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable
