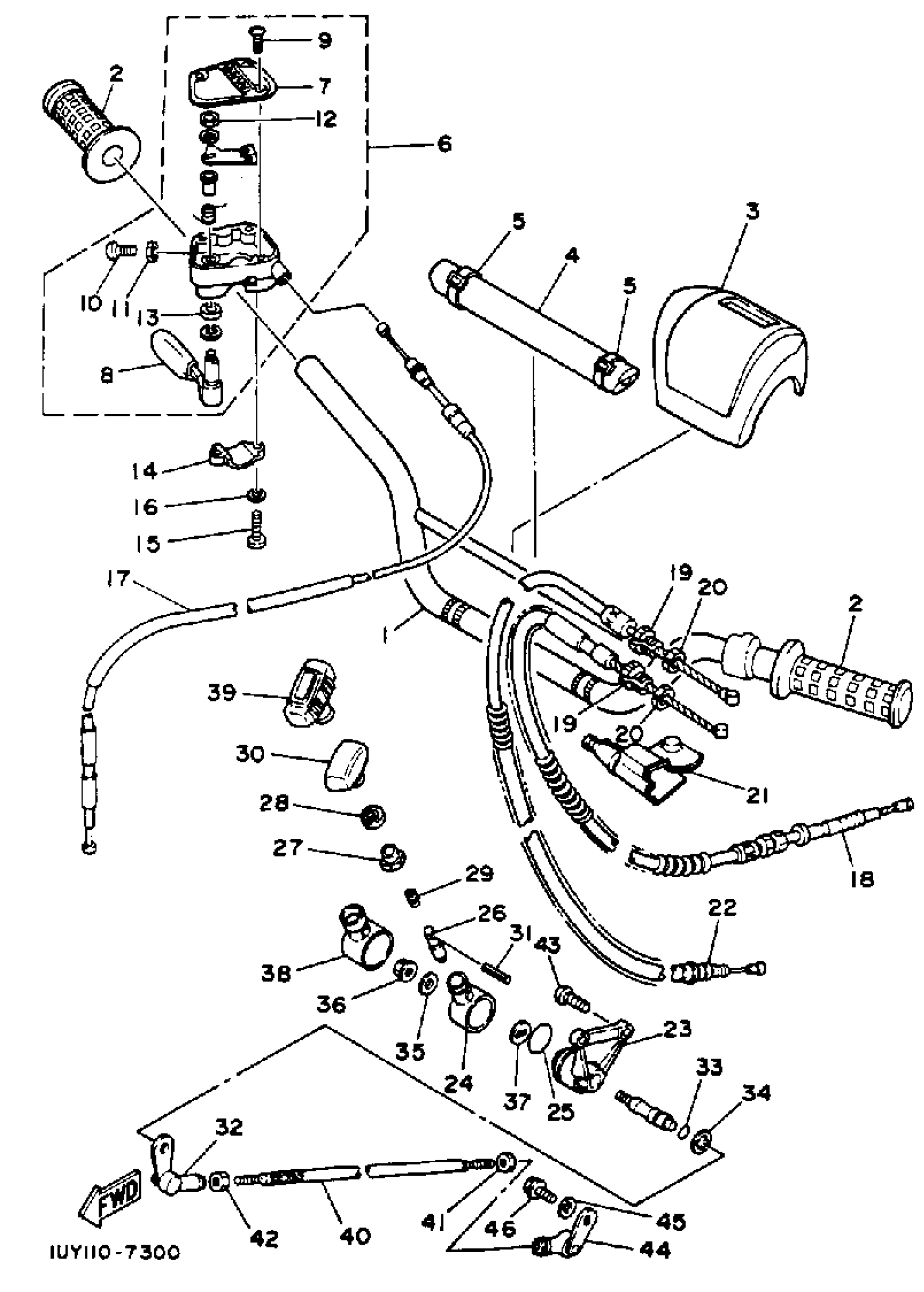

Yamaha YFM350XT (WARRIOR) 1UY 1987 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

1UY-26111-01-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HDLBR

1UY-26124-00-00

Unavailable

4

PROTECTOR 1

1UY-2622K-00-00

Unavailable

5

BAND, SWITCH CORD

437-83936-01-00

$7.99

6

THROTTLE LEVER ASSY

1NV-26250-01-00

Unavailable

7

. CAP, GEAR

1NV-2628F-00-00

Unavailable

8

. LEVER, THROTTLE

1NV-2625G-00-00

Unavailable

9

SCREW, PAN

98517-05012-00

$4.73

10

SCREW, PAN HEAD

98517-05020-00

$4.25

11

NUT, U

95617-05100-00

$9.49

12

NUT, HEXAGON SMALL

95317-05700-00

$8.49

13

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

14

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

15

SCREW, PAN HEAD

98517-05020-00

$4.25

16

WASHER(3SX)

92907-05100-00

Unavailable

17

CABLE, THROTTLE 1

1UY-26311-00-00

Unavailable

18

CABLE, CLUTCH

1UY-26335-00-00

Unavailable

19

BOLT

90123-08002-00

Unavailable

20

NUT

90179-08030-00

Unavailable

21

COVER, HANDLE LEVER 2

1UY-2637A-01-00

Unavailable

22

WIRE, BRAKE 1

1UY-26341-10-00

Unavailable

23

BODY,REVERSE LEVER

99999-02884-00

Unavailable

24

LEVER, REVERSE

1UY-26152-00-00

Unavailable

25

O-RING (371)

93210-29196-00

Unavailable

26

STOPPER, LEVER

1UY-26154-00-00

Unavailable

27

COVER, SHIFT SPRING

1UY-26161-00-00

Unavailable

28

OIL SEAL

93109-08803-00

Unavailable

29

SPRING, COMPRESSION

90501-102E5-00

Unavailable

30

LEVER, LOCK

1UY-26157-00-00

Unavailable

31

PIN, SPRING (648)

91690-40016-00

Unavailable

32

SHAFT, LINK

5YT-26162-00-00

Unavailable

33

O-RING (611)

93210-10096-00

Unavailable

34

WASHER PLATE 626441260000

90202-14037-00

Unavailable

35

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

36

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

37

PLATE, SIDE 1

1UY-26158-00-00

Unavailable

38

COVER, HANDLE LEVER 1

1UY-26372-00-00

Unavailable

39

GRIP, LEVER

1UY-26153-00-00

Unavailable

40

ROD, JOINT (3GD-26166-00-00)

1UY-26166-00-00

Unavailable

41

NUT(JN5)

95317-06700-00

Unavailable

42

NUT (2H9)

90170-06228-00

Unavailable

43

BOLT, BUTTON

92017-08020-00

Unavailable

44

LEVER 2

1UY-26165-00-00

Unavailable

45

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

46

BOLT, FLANGE

95817-06016-00

Unavailable
