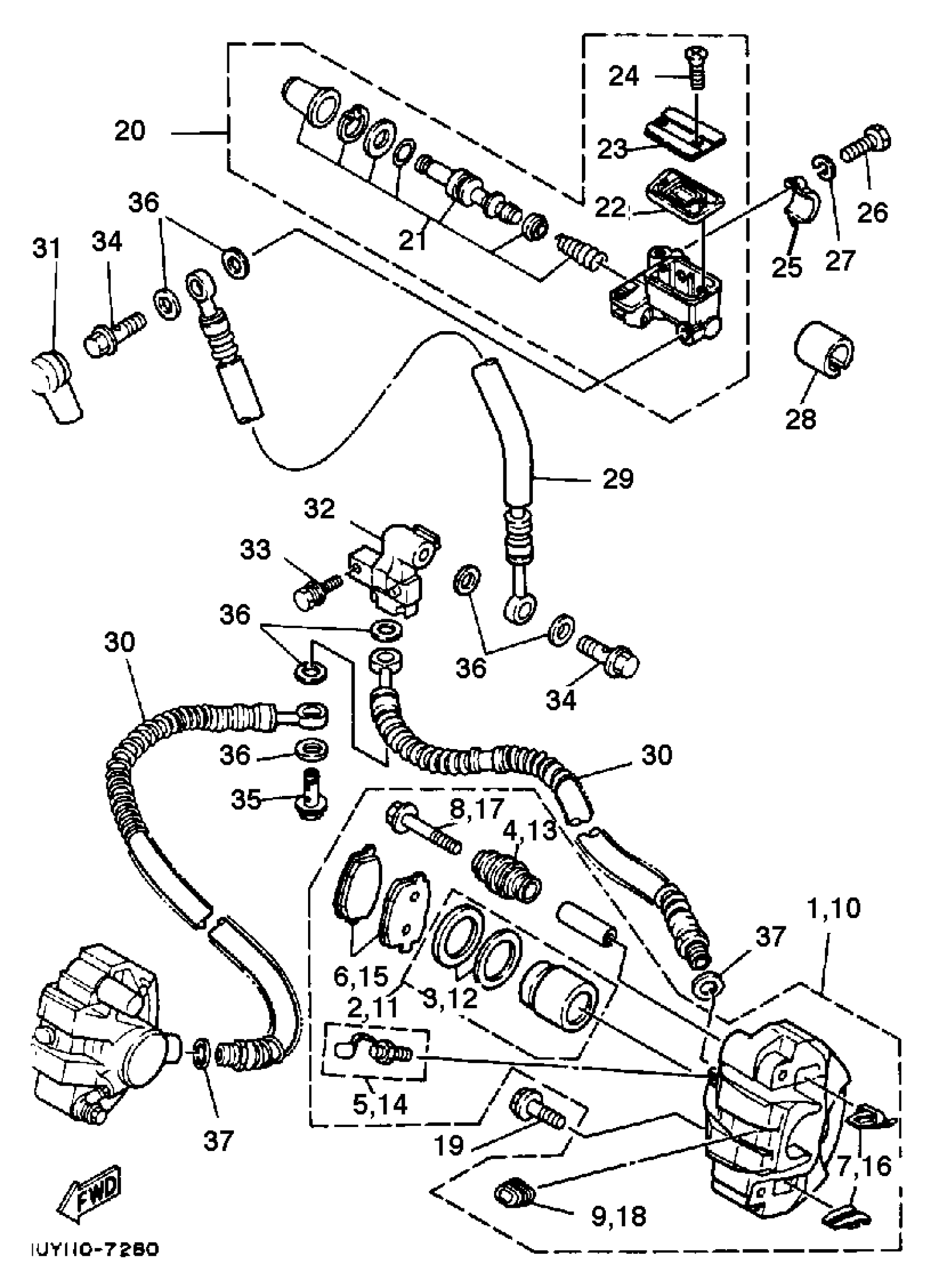

Yamaha YFM350XT (WARRIOR) 1UY 1987 FRONT BRAKE CALIPER Diagram
#
Description
Price
1
CALIPER ASSEMBLY, LH
1UY-2580T-00-00
Unavailable
2
. PISTON ASSEMBLY, CALIPER
1UY-W0057-00-00
Unavailable
3
.. CALIPER SEAL KIT
1UY-W0047-00-00
Unavailable
7
SUPPORT, PAD
34X-25919-00-00
Unavailable
10
CALIPER ASSEMBLY, RH
1UY-2580U-00-00
Unavailable
11
. PISTON ASSEMBLY, CALIPER
1UY-W0057-00-00
Unavailable
12
.. CALIPER SEAL KIT
1UY-W0047-00-00
Unavailable
16
SUPPORT, PAD
34X-25919-00-00
Unavailable
19
BOLT, WASHER BASED
90105-08415-00
Unavailable
20
MASTER CYLINDER ASSEMBLY (1UY-25850-00)
1UY-25850-01-00
Unavailable
21
CYL KIT,MASTER
5VK-25807-00-00
Unavailable
22
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
Unavailable
23
CAP, RESERVOIR
4H7-25852-00-00
Unavailable
24
SCREW, FLAT
98707-04012-00
Unavailable
25
BRACKET, MASTER CYLINDER
56A-25867-00-00
Unavailable
26
BOLT, HEXAGON
97017-06025-00
Unavailable
27
WASHER, SPRING
92907-06100-00
Unavailable
28
COLLAR
1UY-26259-00-00
Unavailable
29
HOSE, BRAKE 1
1UY-25872-00-00
Unavailable
30
HOSE,BRAKE 2
99999-02637-00
Unavailable
31
BOOT, MASTER CYLINDER
4L0-25862-01-00
Unavailable
32
JOINT
1J7-25885-01-00
Unavailable
33
BOLT, W/WASHER
(90119-06124-00)
Unavailable
34
BOLT, UNION(3GM)
90401-10159-00
Unavailable
35
BOLT, UNION
90401-10038-00
Unavailable
36
WASHER, PLATE(481)
90201-10118-00
Unavailable
37
GASKET(1UY)
90430-10200-00
Unavailable
